Instrument Cluster
>>
Instrument Cluster Dimming Inoperative
Instrument Cluster Dimming Inoperative

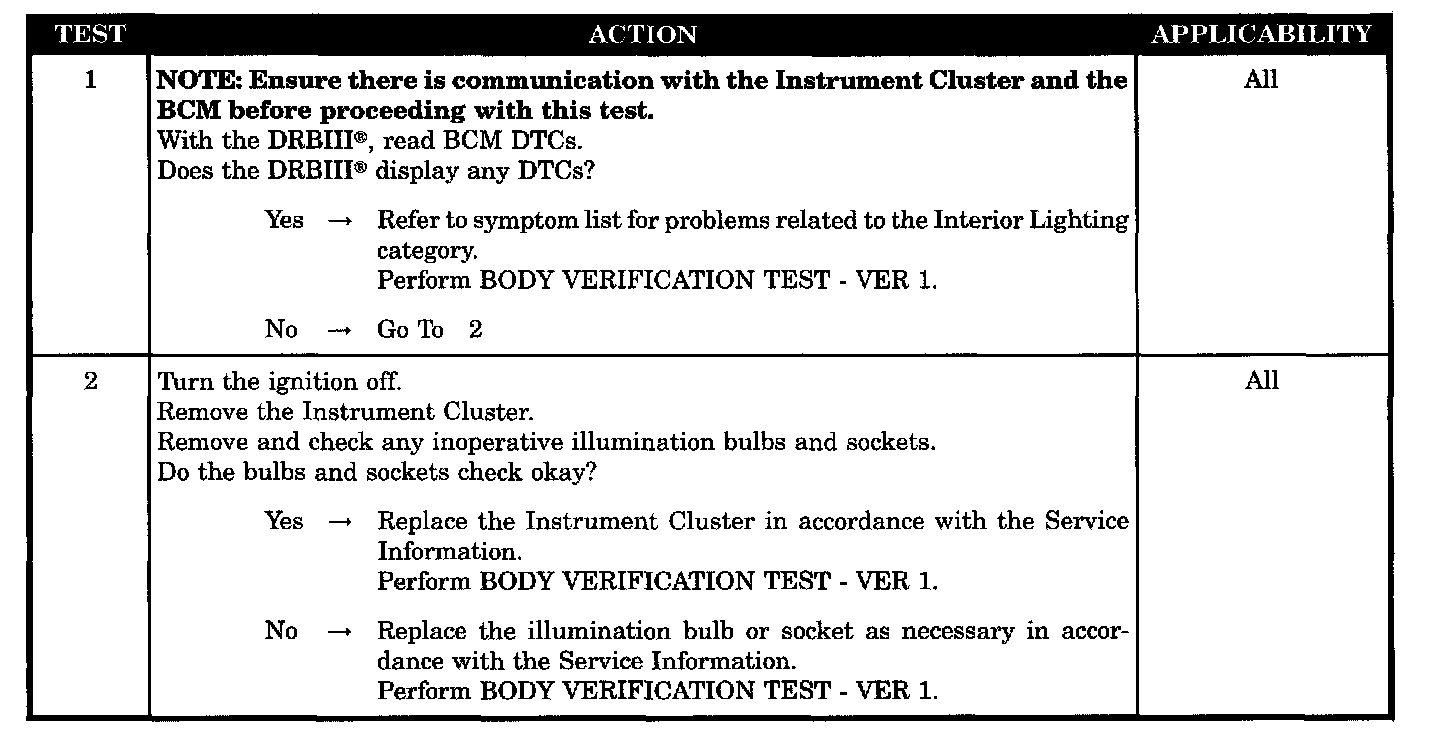

Tests 1 - 2:
SYMPTOM
INSTRUMENT CLUSTER DIMMING INOPERATIVE
POSSIBLE CAUSES
-
DTC present
-
Illumination bulb or socket
-
Instrument cluster
