Instrument Cluster
>>
Fuel Gauge Not Operating Properly
Fuel Gauge Not Operating Properly

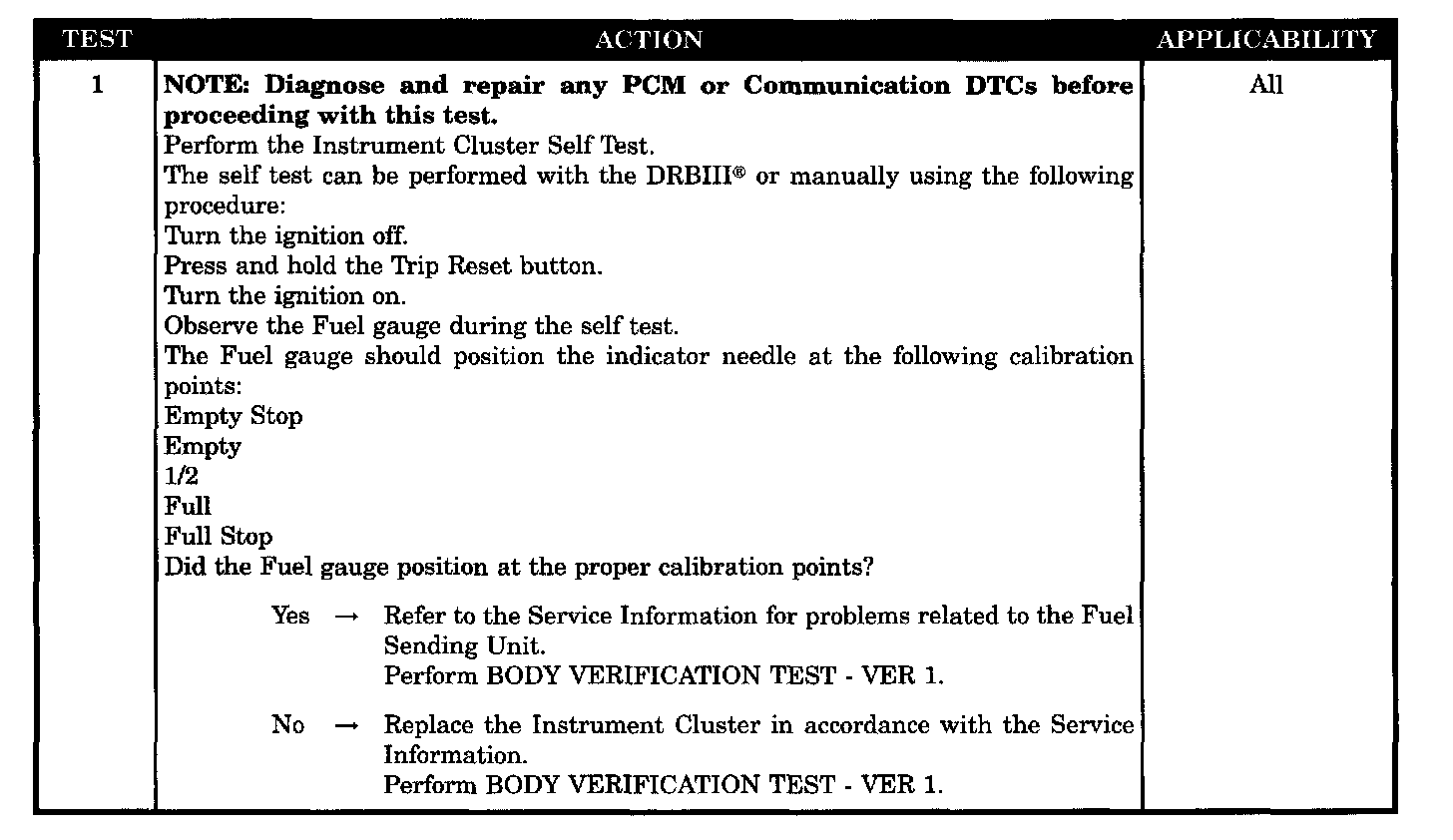

Test 1:
SYMPTOM
FUEL GAUGE NOT OPERATING PROPERLY
POSSIBLE CAUSES
-
Instrument cluster
-
Fuel level sensor
