All Gauges Inoperative

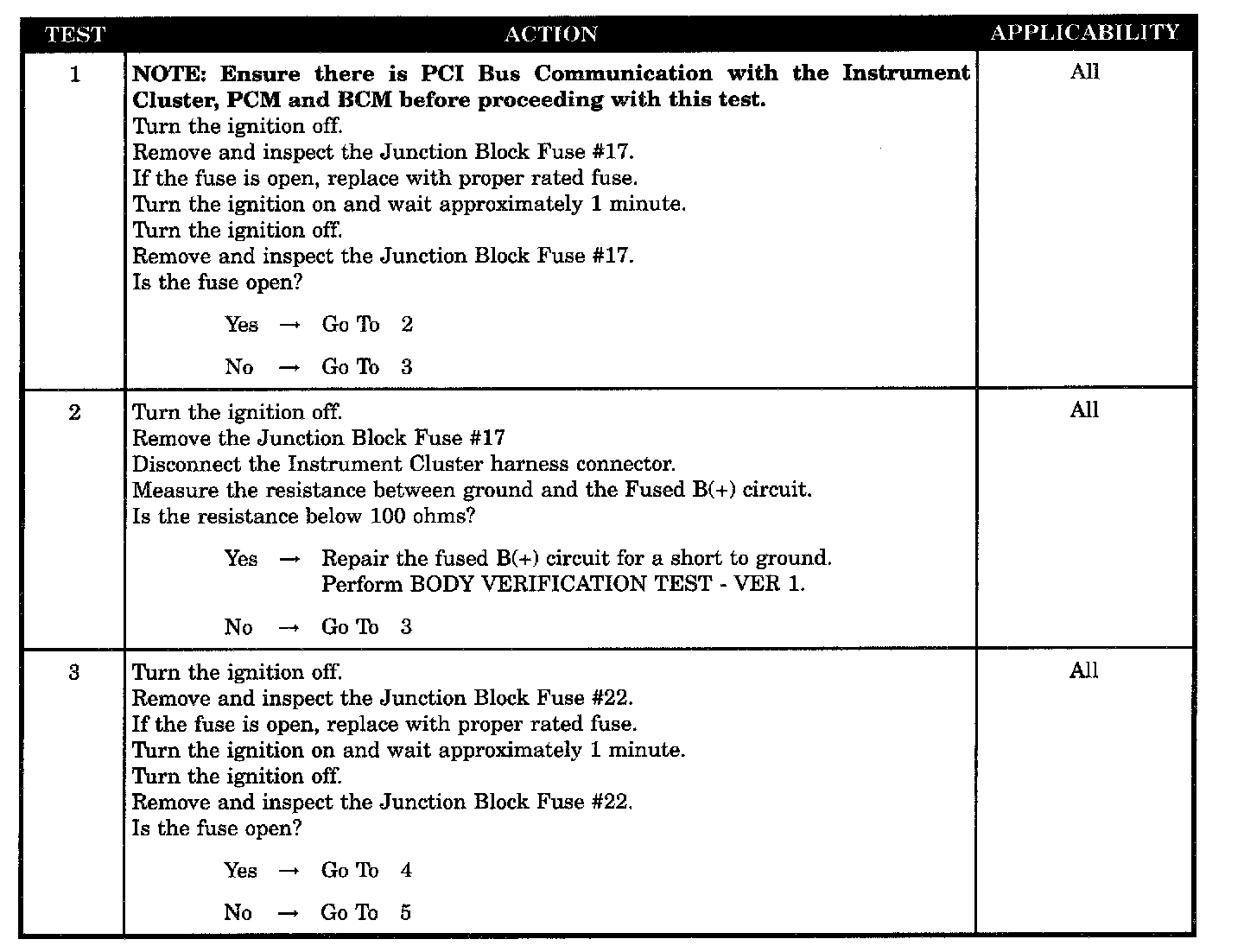

Tests 1 - 3:

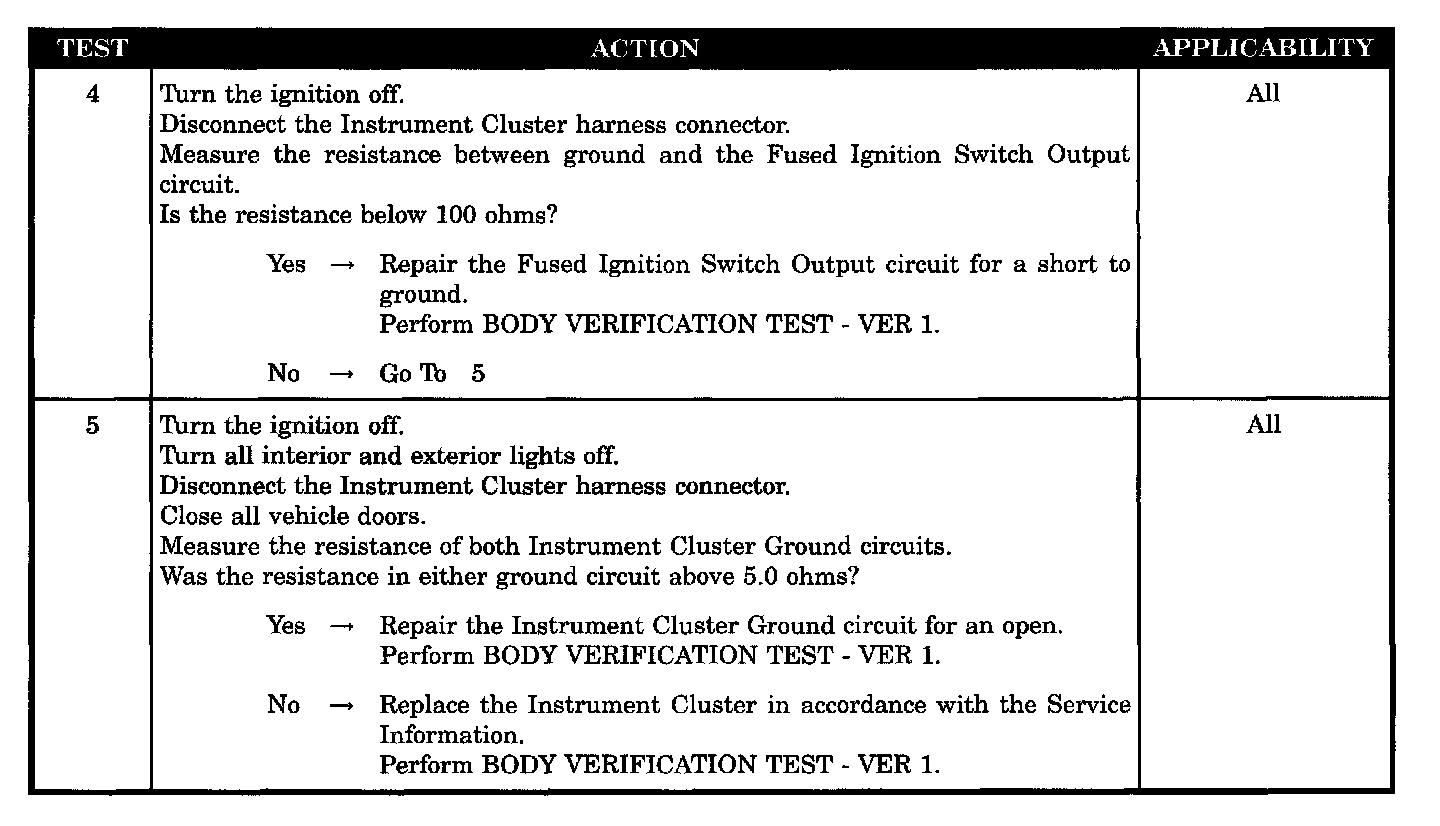

Tests 4 - 5:

SYMPTOM
ALL GAUGES INOPERATIVE

POSSIBLE CAUSES
- Fused B(+) circuit shorted to ground
- Fused ignition switch output circuit shorted to ground
- Ground circuit open
- Instrument cluster
