ACM Messages Not Received By MIC

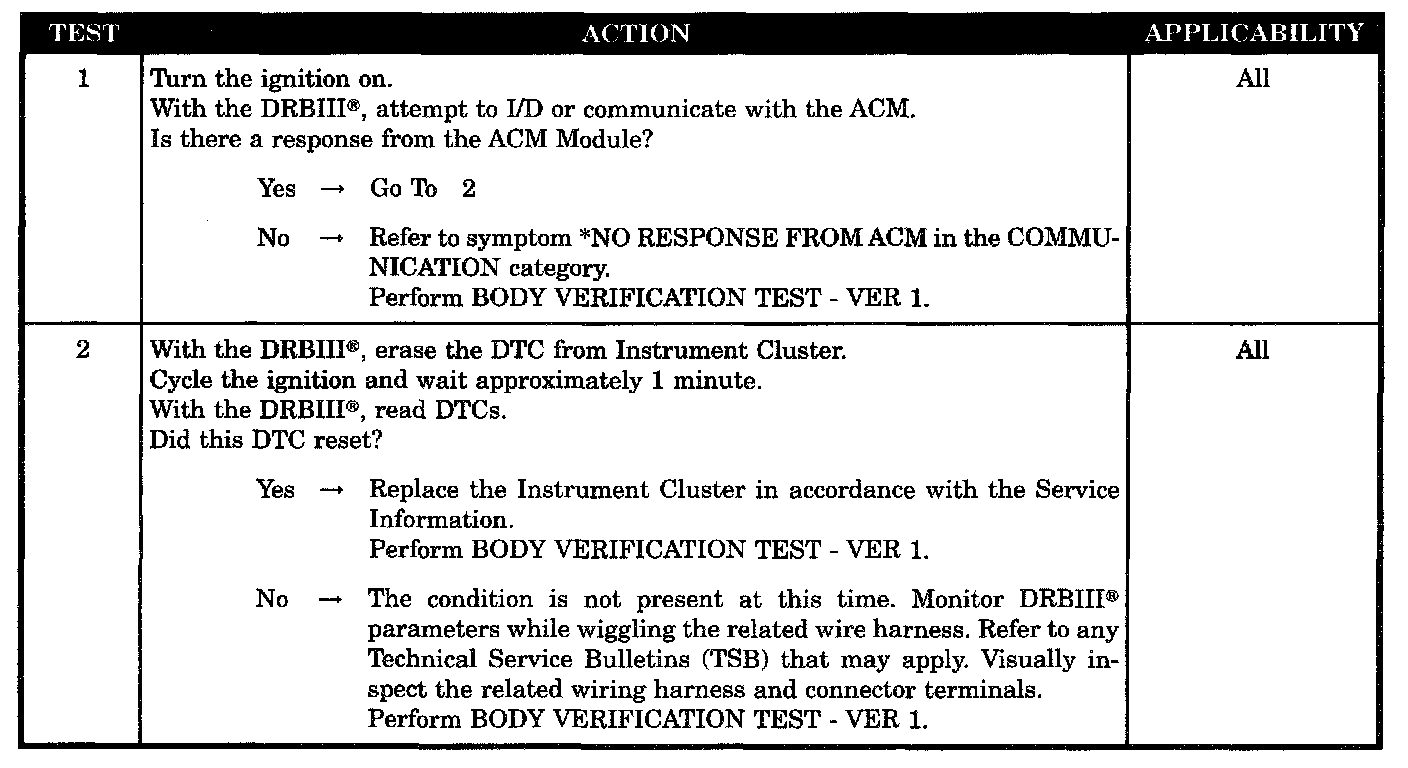

Tests 1 - 2:

SYMPTOM
ACM MESSAGE NOT RECEIVED BY MIC

WHEN MONITORED
Monitored during ignition ON.

SET CONDITION
No ACM messages received for 6 seconds.

POSSIBLE CAUSES
- No response - PCI bus - ACM
- Intermittent condition
- Instrument cluster
