Blower Select Switch Shorted (AZC) (Stored)

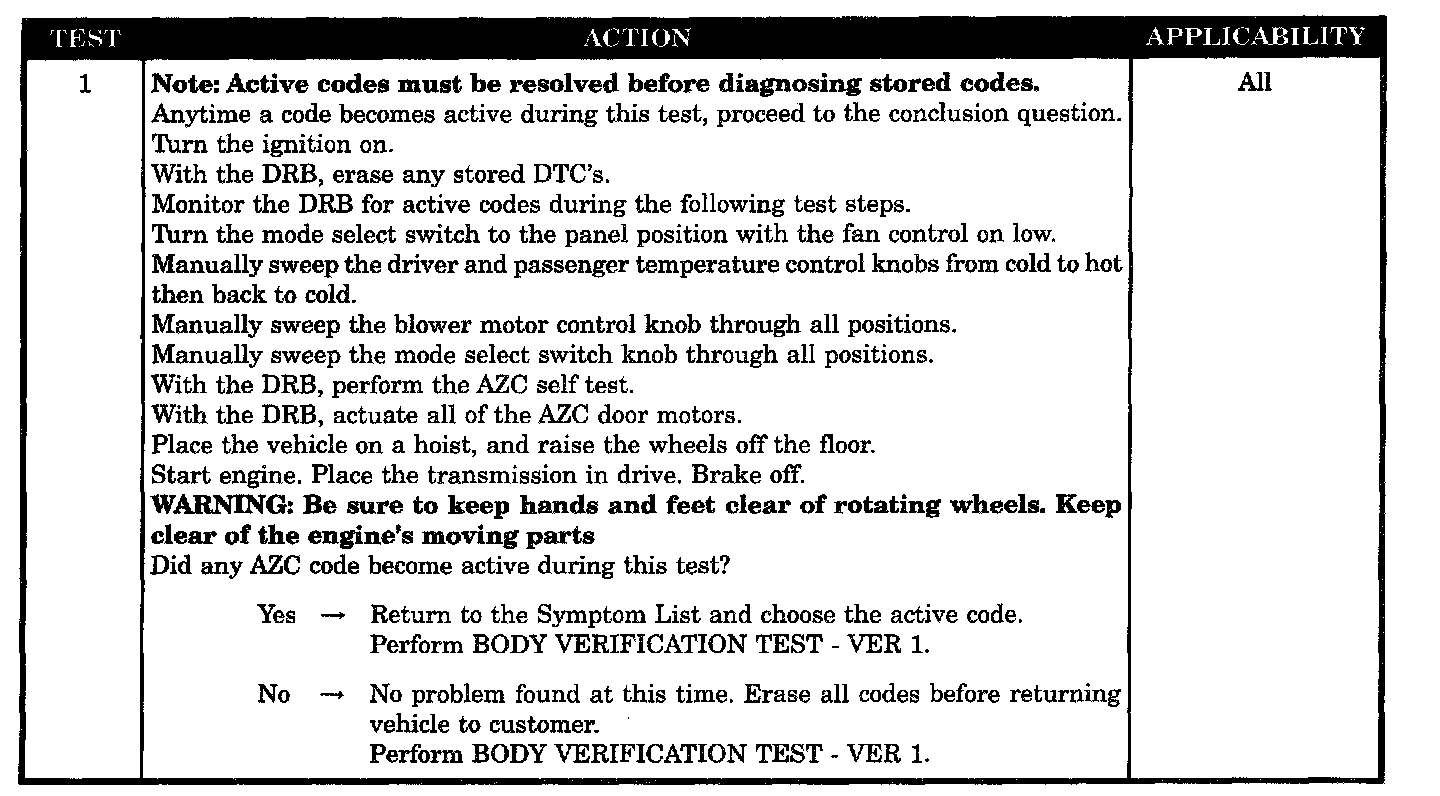

Test 1:

SYMPTOM
BLOWER SELECT SWITCH SHORTED (AZC) (STORED)

WHEN MONITORED
Ignition in RUN and IOD fuse installed.

SET CONDITION
This condition is set if the AZC reads the blower switch value and it is below 5 A/D counts.

POSSIBLE CAUSES
- AZC module stored codes present
- Stored codes test complete
