Ambient Air Temp Failure (AZC) (Stored)

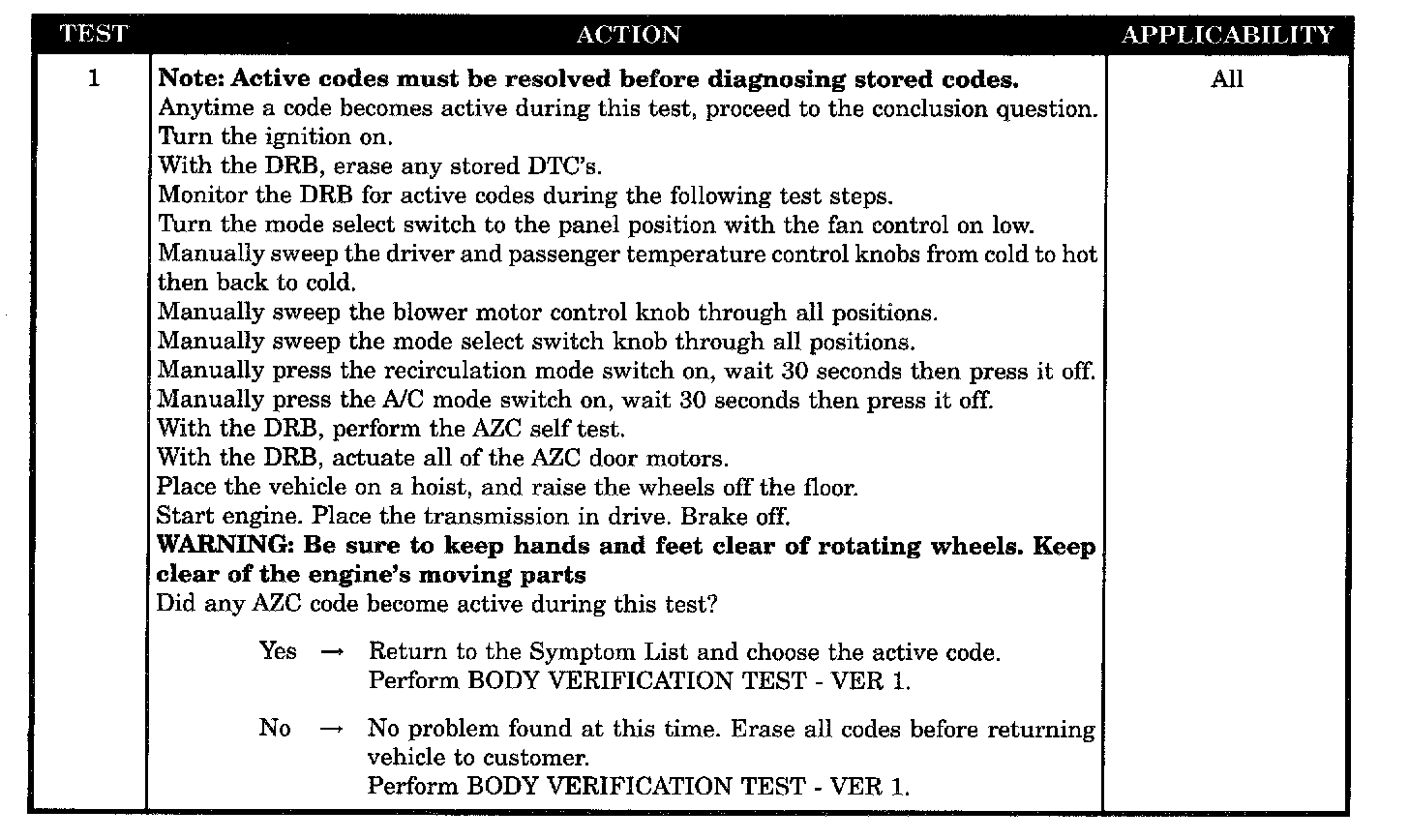

Test 1:

SYMPTOM
AMBIENT AIR TEMP FAILURE (AZC) (STORED)

WHEN MONITORED
Every 8 seconds with the ignition ON

SET CONDITION
When an outside air temperature signal is expected is not received in the maximum allowed time.

POSSIBLE CAUSES
- AZC module stored codes present
- Stored codes test complete
