Rear Fog Relay Output Shorted High

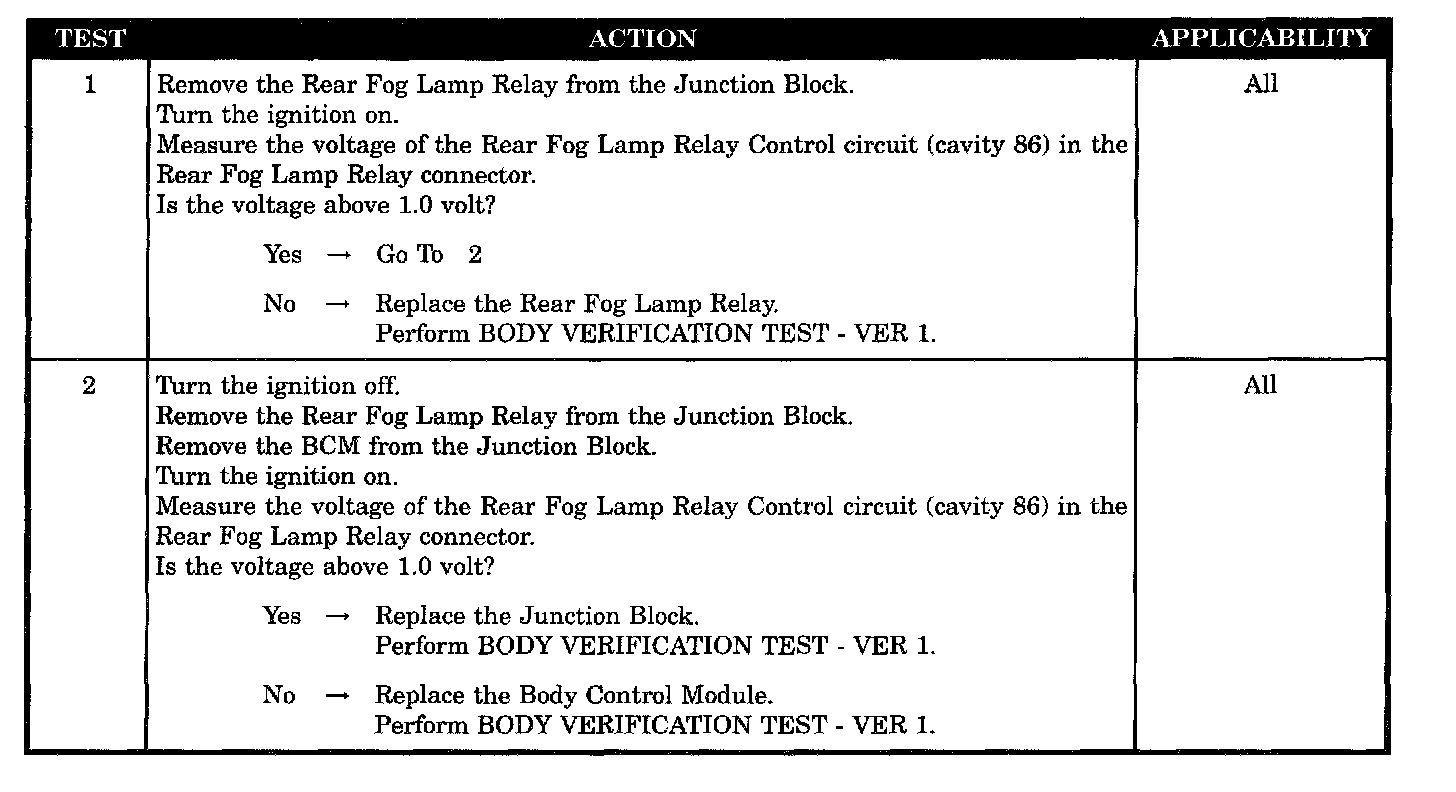

Tests 1 - 2:

SYMPTOM
REAR FOG RELAY OUTPUT SHORTED HIGH

WHEN MONITORED
Ignition switch in the ON position and the IOD fuse installed.

SET CONDITION
This condition is set when the BCM is trying to activate the rear fog lamp relay and excessive current is detected on the control circuit.

POSSIBLE CAUSES
- Rear fog lamp relay shorted to voltage
- Junction block - rear fog lamp relay control circuit shorted to voltage
- Body control module
