Rear Fog Lamps Will Not Turn On

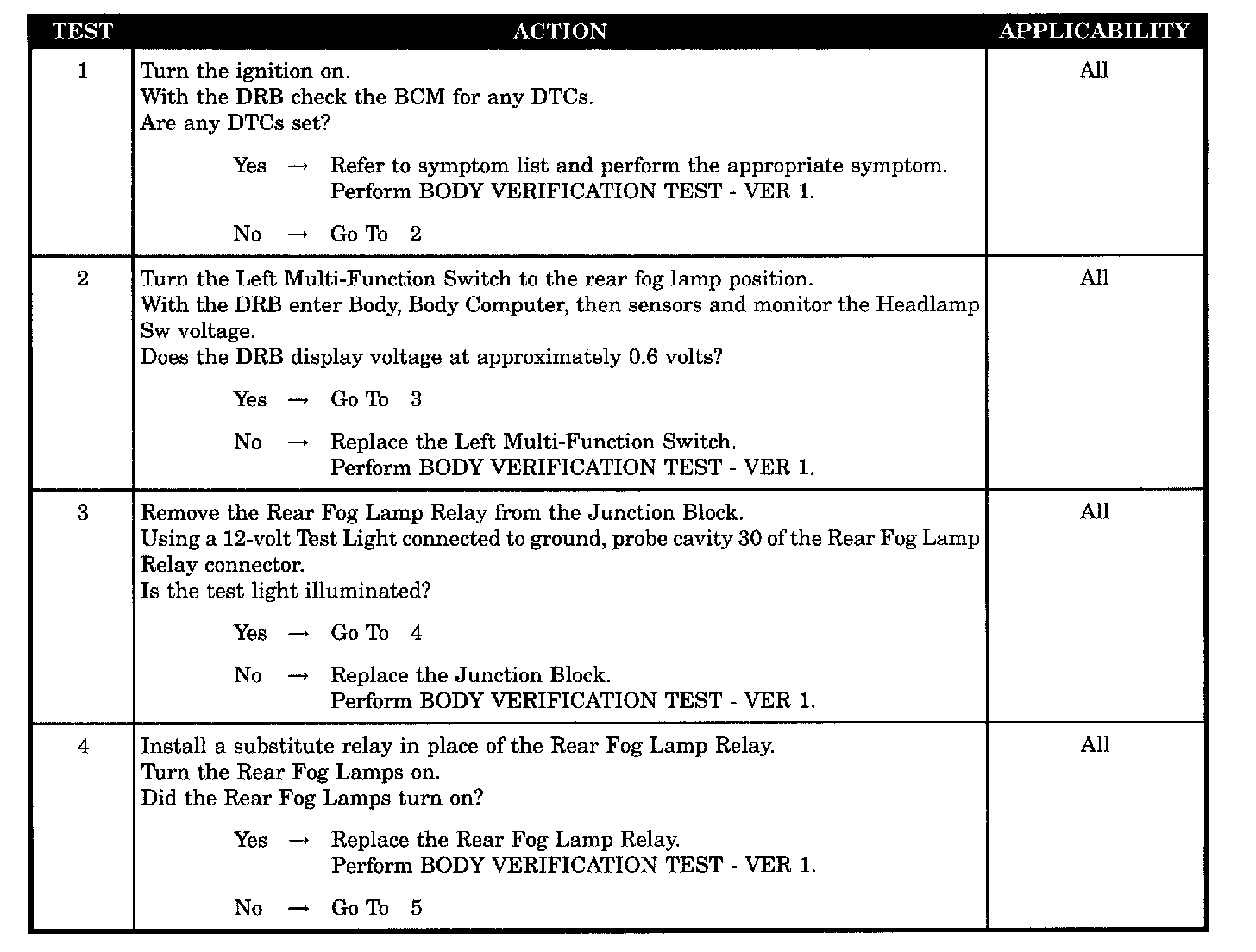

Tests 1 - 4:

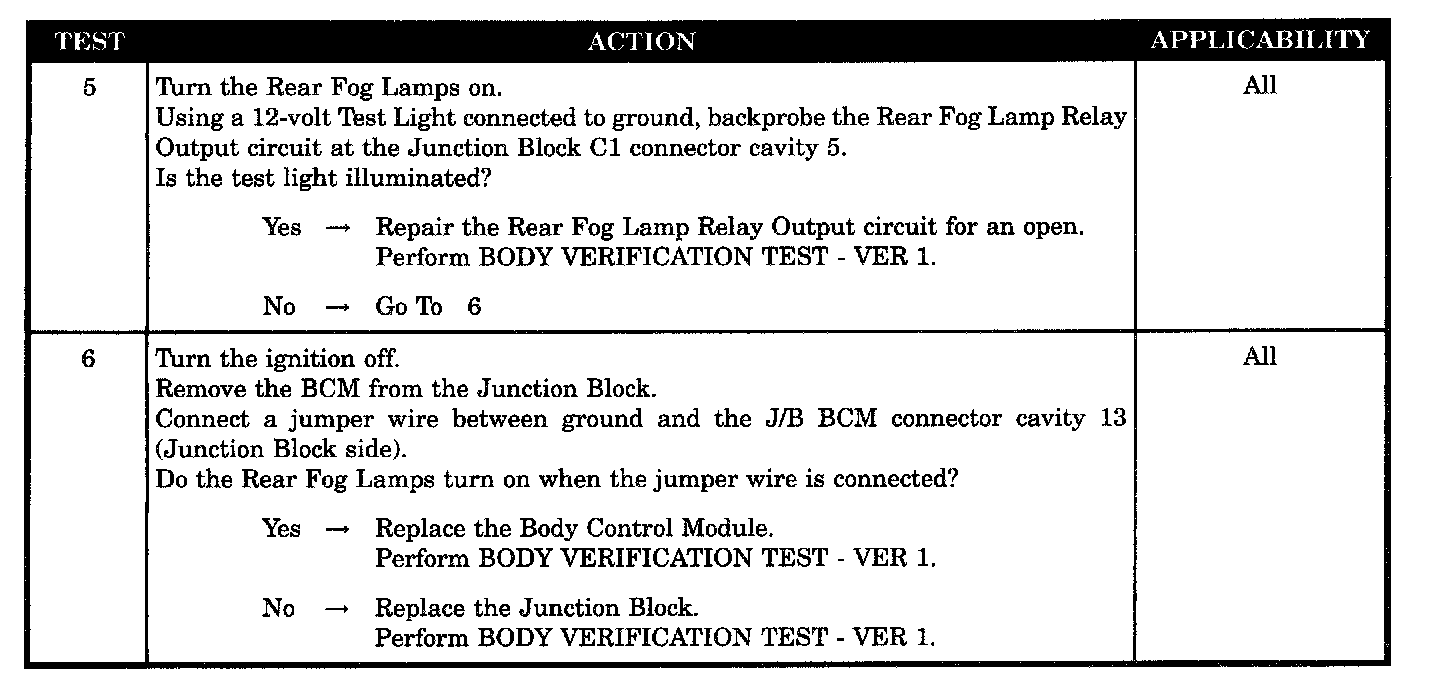

Tests 5 - 6:

SYMPTOM
REAR FOG LAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Check BCM for DTCS
- Check the left multi-function switch operation
- Junction block - fused B+ circuit open
- Rear fog lamp relay
- Rear fog lamp relay output circuit open
- Junction block - rear fog lamp relay output circuit open
- Body control module
