Park Lamps Will Not Turn On

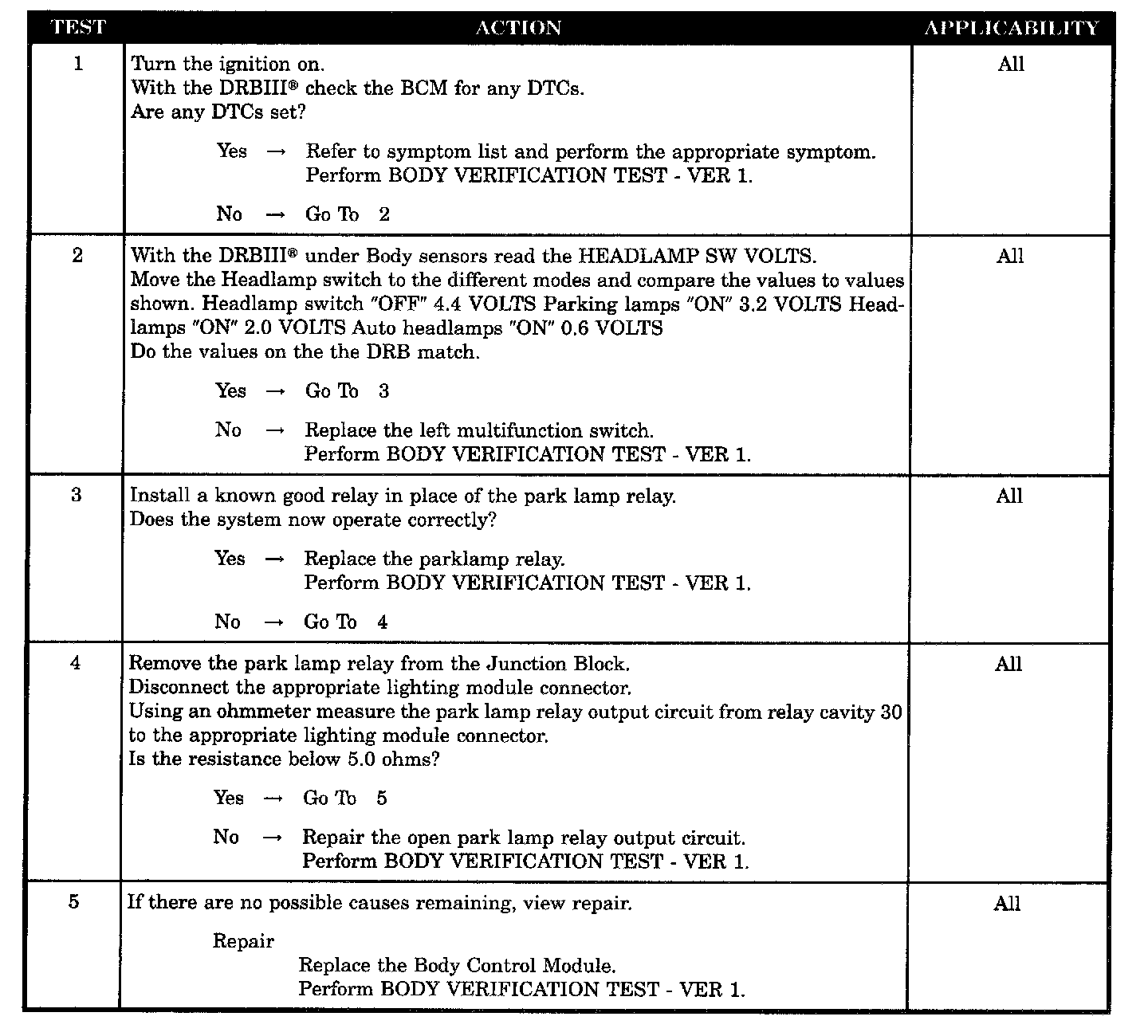

Tests 1 - 5:

SYMPTOM
PARK LAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Check BCM for DTCS
- Headlamp switch function
- Park lamp relay
- Park lamp relay output circuit open
- BCM headlamp MUX INOP
