Park Lamp Relay Circuit Shorted High

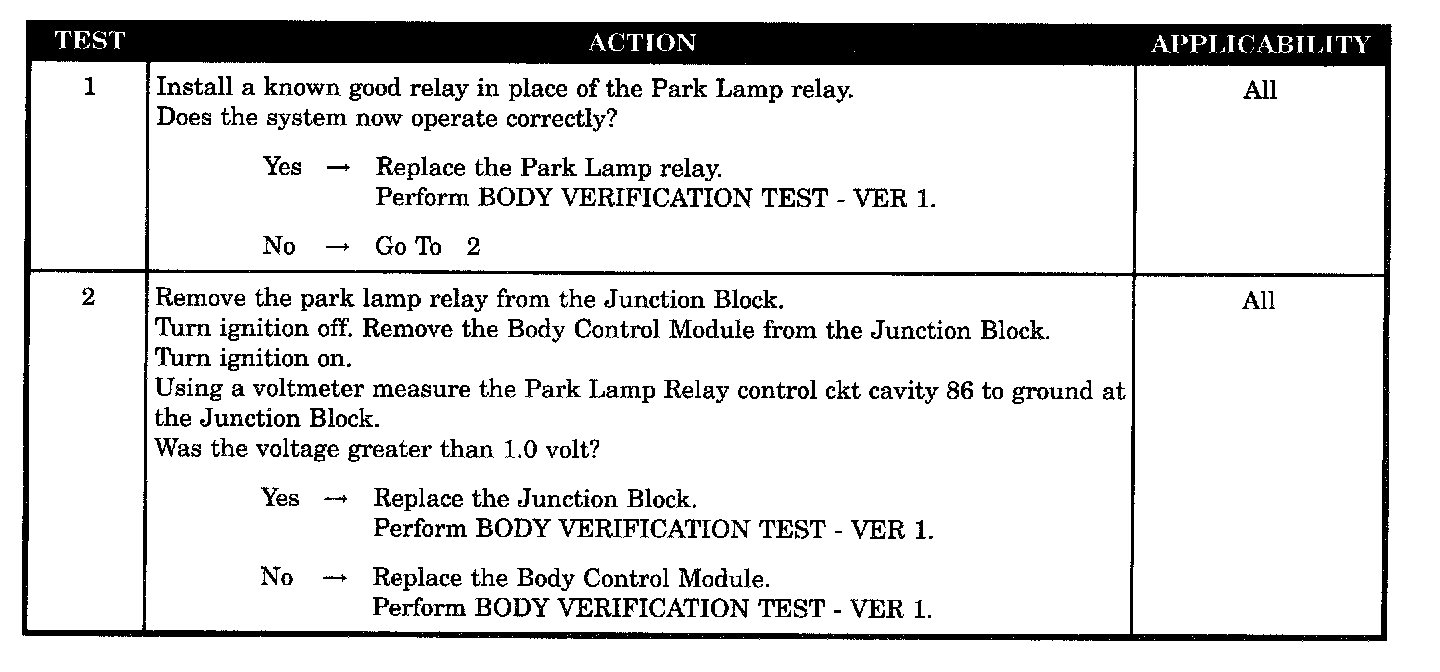

Tests 1 - 2:

SYMPTOM
PARK LAMP RELAY CIRCUIT SHORTED HIGH

WHEN MONITORED
Ignition in RUN and IOD fuse/connector installed.

SET CONDITION
This condition is set when the BCM is trying to activate the park relay and excessive current is detected on the control circuit.

POSSIBLE CAUSES
- Park lamp relay
- BCM park lamp control shorted to battery
- Park lamp relay control shorted to B(+)
