Low Beam Headlamps Will Not Turn Off

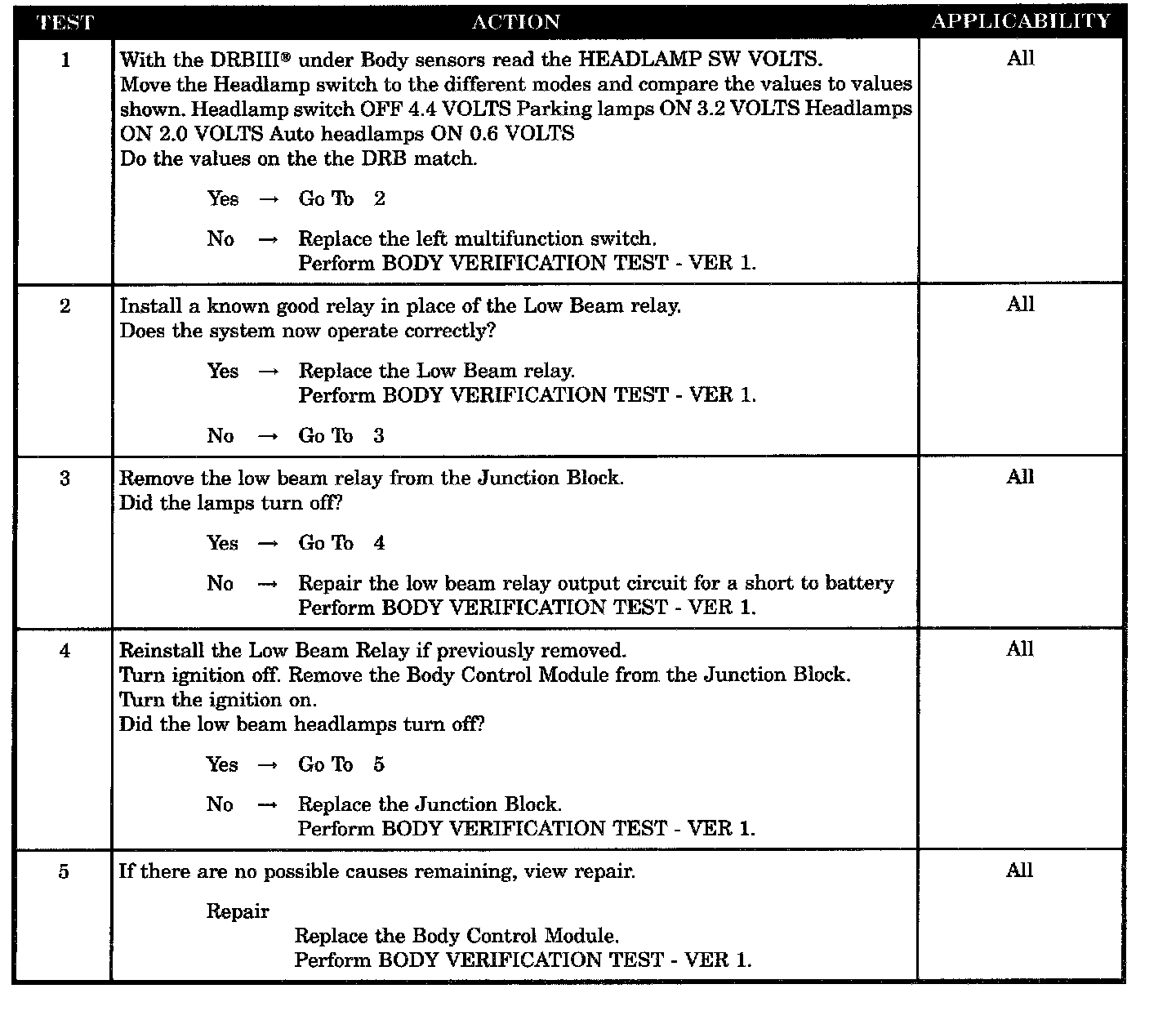

Tests 1 - 5:





SYMPTOM
LOW BEAM HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Low beam relay
- Low beam relay output shorted to B(+)
- Low beam relay control circuit shorted to ground
- Headlamp switch function
- BCM low beam lamps will not turn OFF
