High Beam Relay Circuit Shorted High

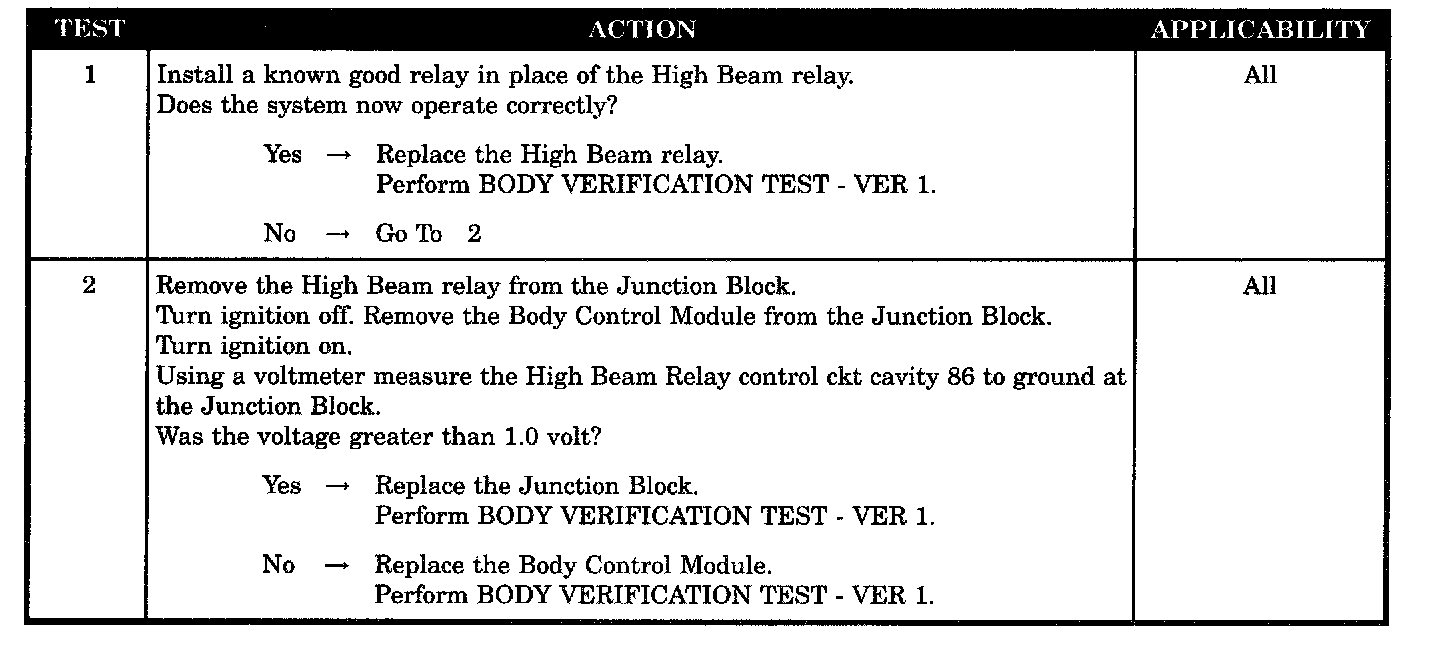

Tests 1 - 2:

SYMPTOM
HIGH REAM RELAY CIRCUIT SHORTED HIGH

WHEN MONITORED
Ignition in RUN and IOD fuse/connector installed.

SET CONDITION
This condition is set when the BCM is trying to activate the High beam relay and excessive current is sinked into the BCM.

POSSIBLE CAUSES
- HI beam relay
- High beam relay control circuit shorted to B(+)
- BCM high beam control shorted to battery
