High Beam Headlamps Will Not Turn On

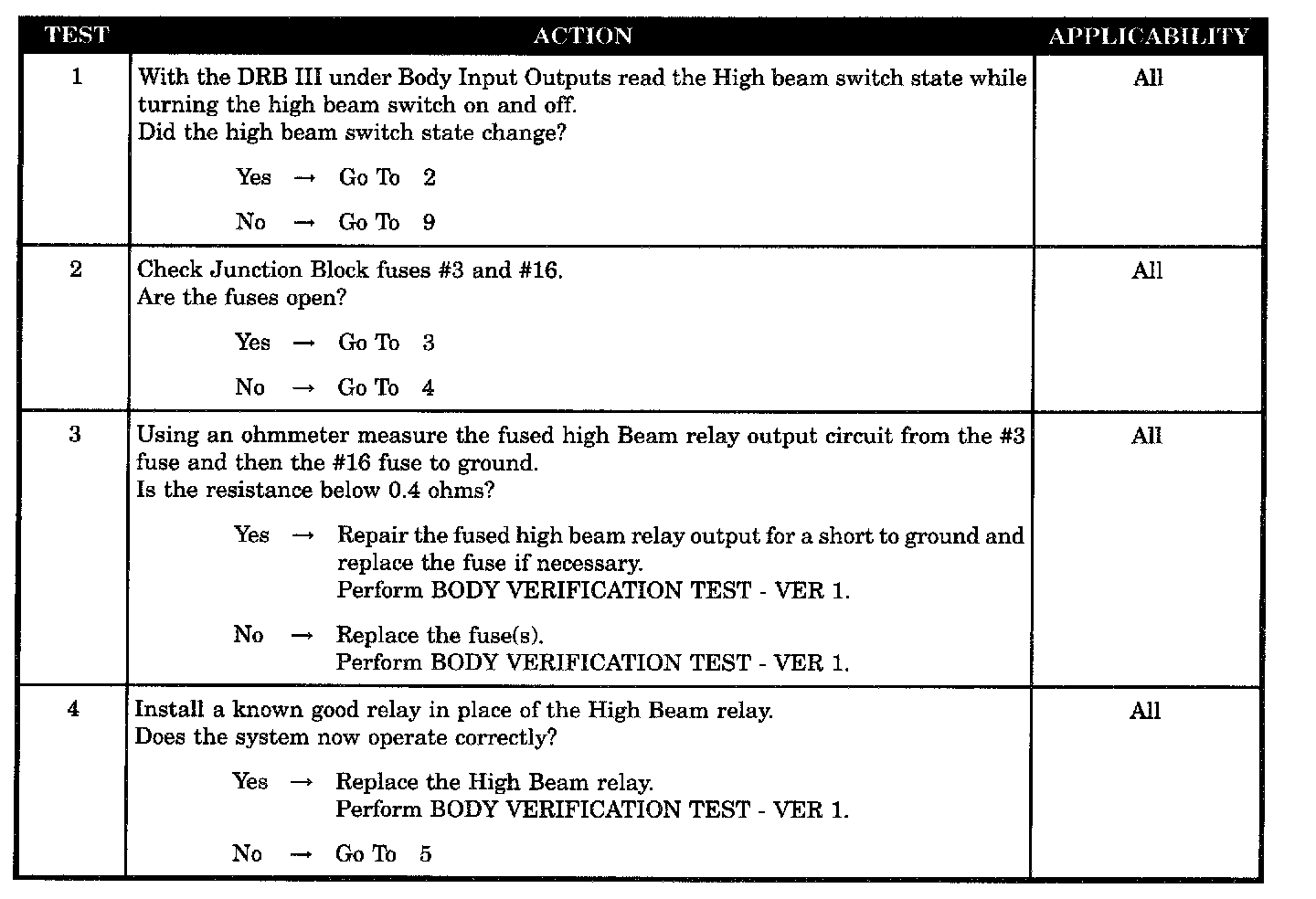

Tests 1 - 4:

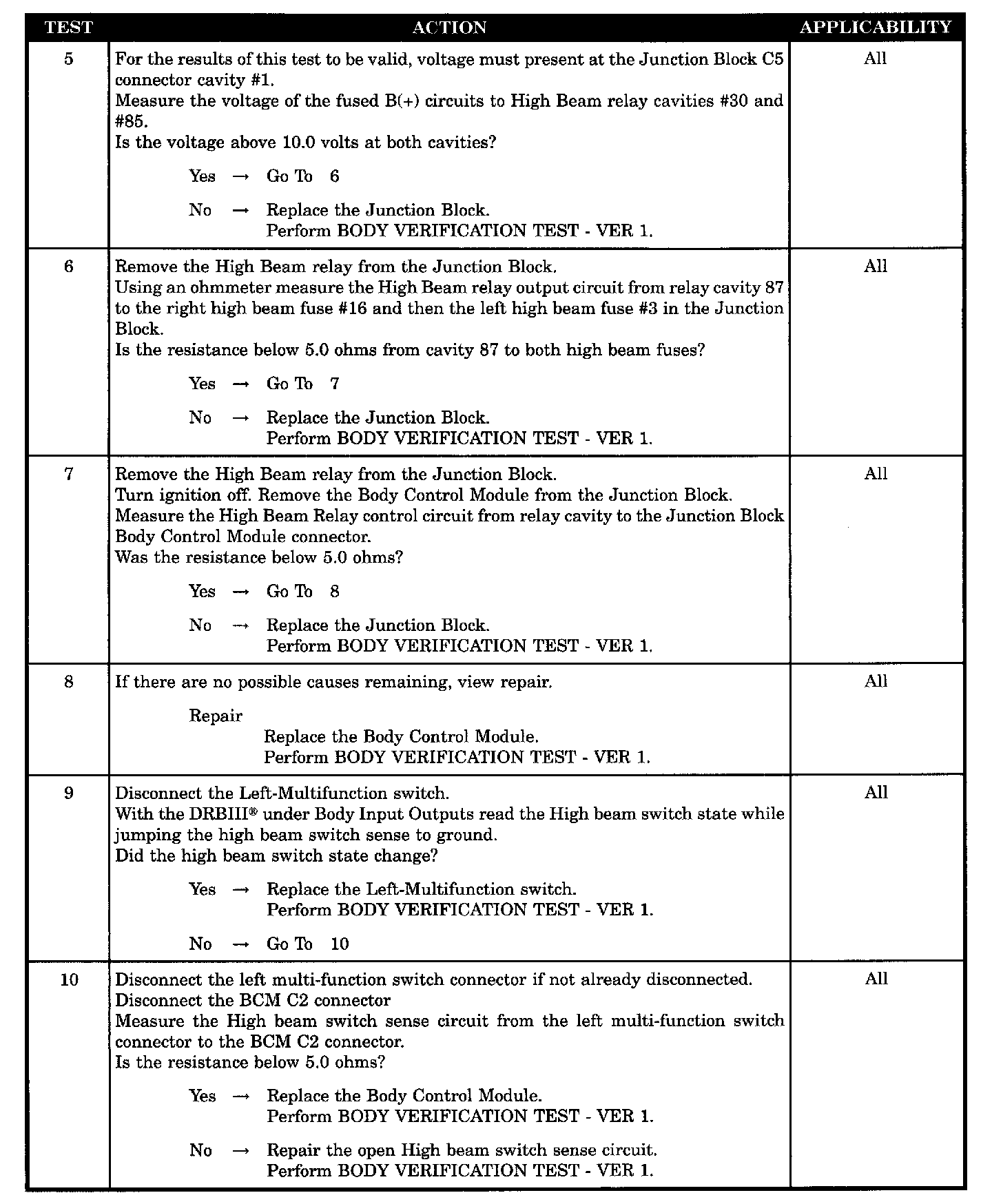

Tests 5 - 10:

SYMPTOM
HIGH BEAM HEADLAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Fused high beam relay output shorted to ground
- High beam relay output circuit open
- Open fused B(+)
- High beam relay
- Fuses
- High beam switch sense open
- High beam relay control circuit open
- BCM high beam control circuit
- BCM high beam switch sense open
- Jumper high beam switch sense to ground
