High Beam Headlamps Will Not Turn Off

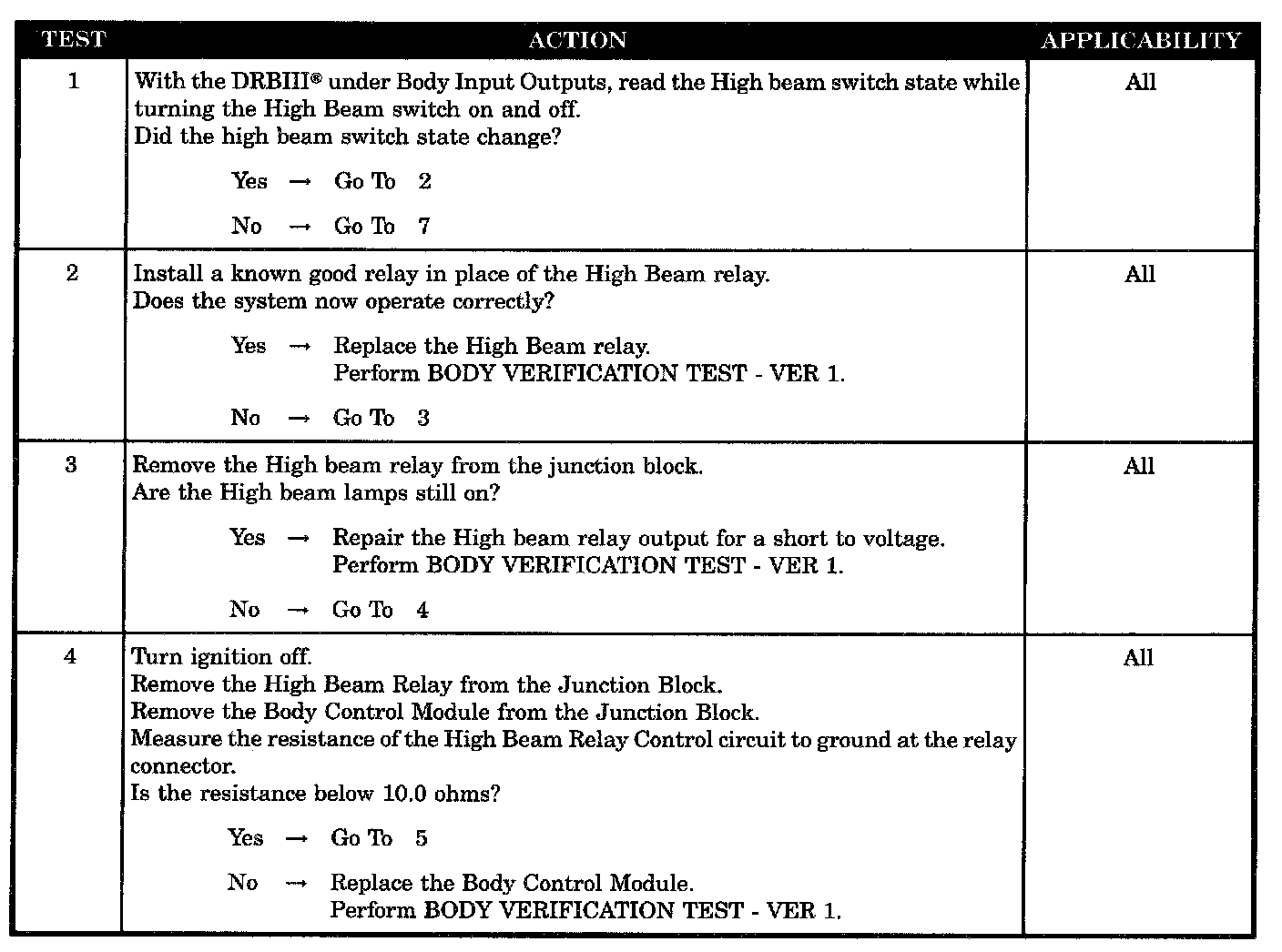

Tests 1 - 4:

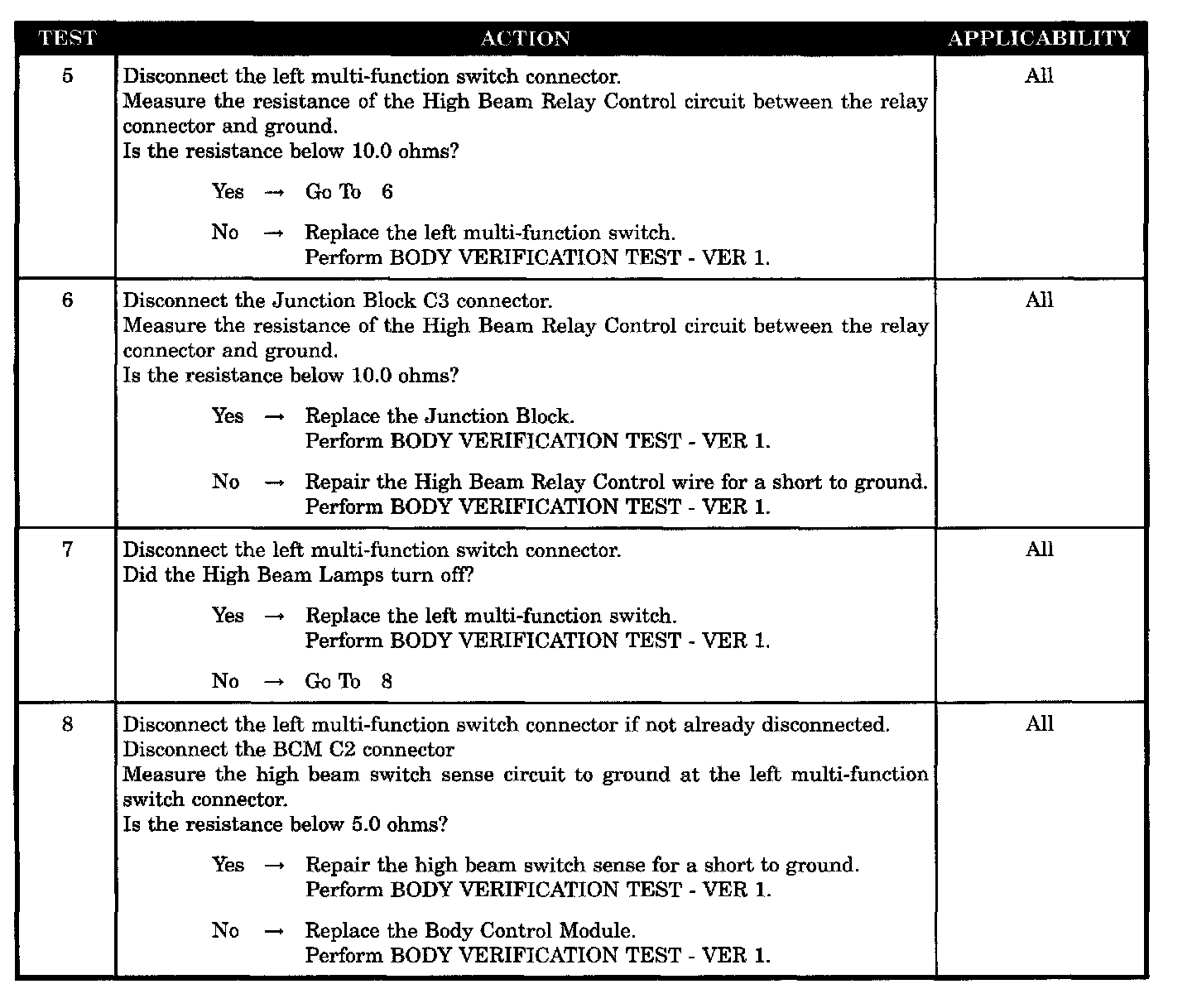

Tests 5 - 8:

SYMPTOM
HIGH BEAM HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- High beam relay control wire shorted to ground
- Junction block high beam control shorted to ground
- Left multi-function switch flash to pass circuit
- Left multi-function switch high beam sense circuit shorted
- High beam relay output shorted B+
- High beam relay
- High beam switch sense shorted
- BCM DEF high beam switch sense shorted
- BCM high beam relay control shorted
