Fog Lamps Will Not Turn On

Tests 1 - 3:

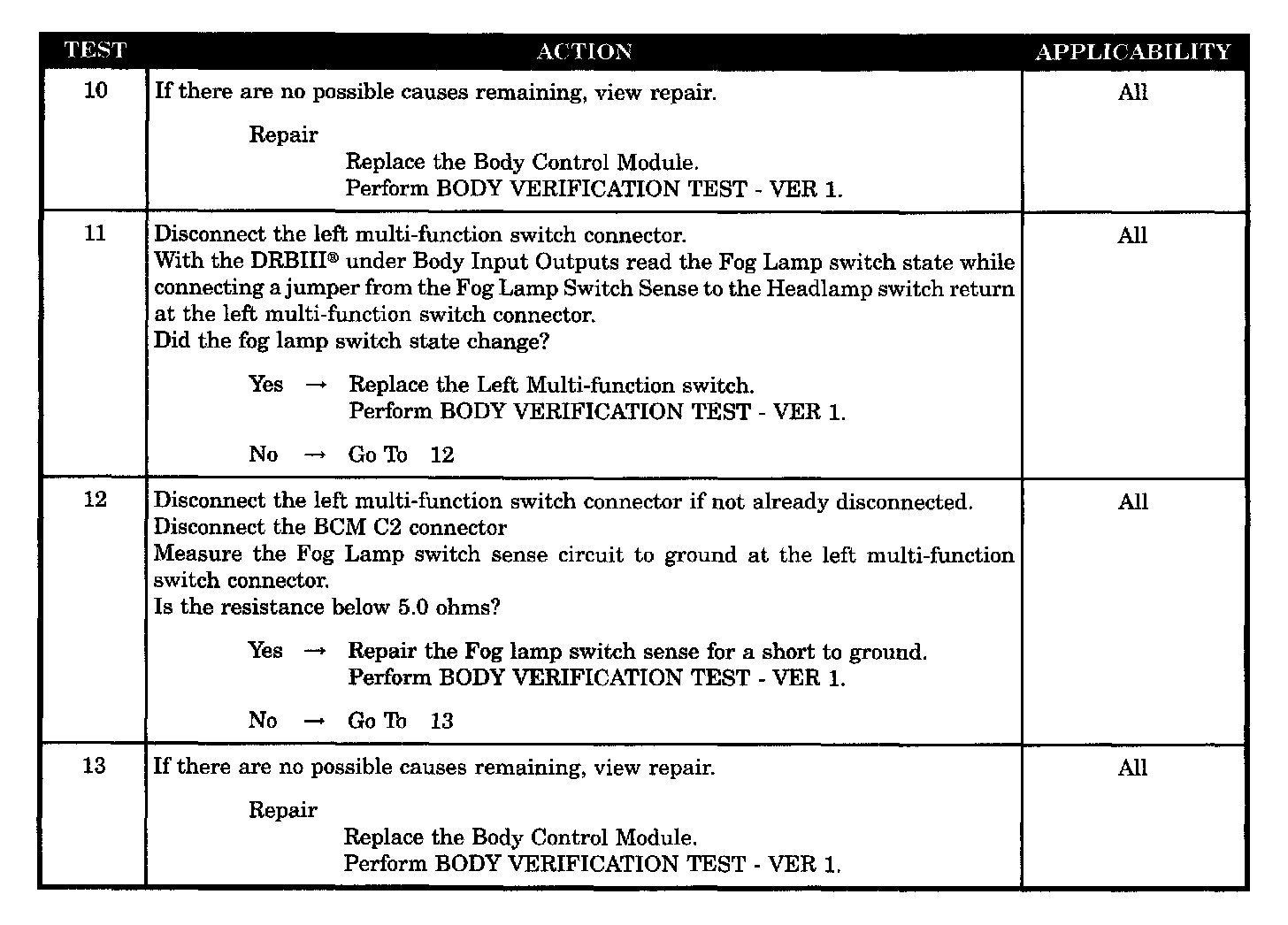

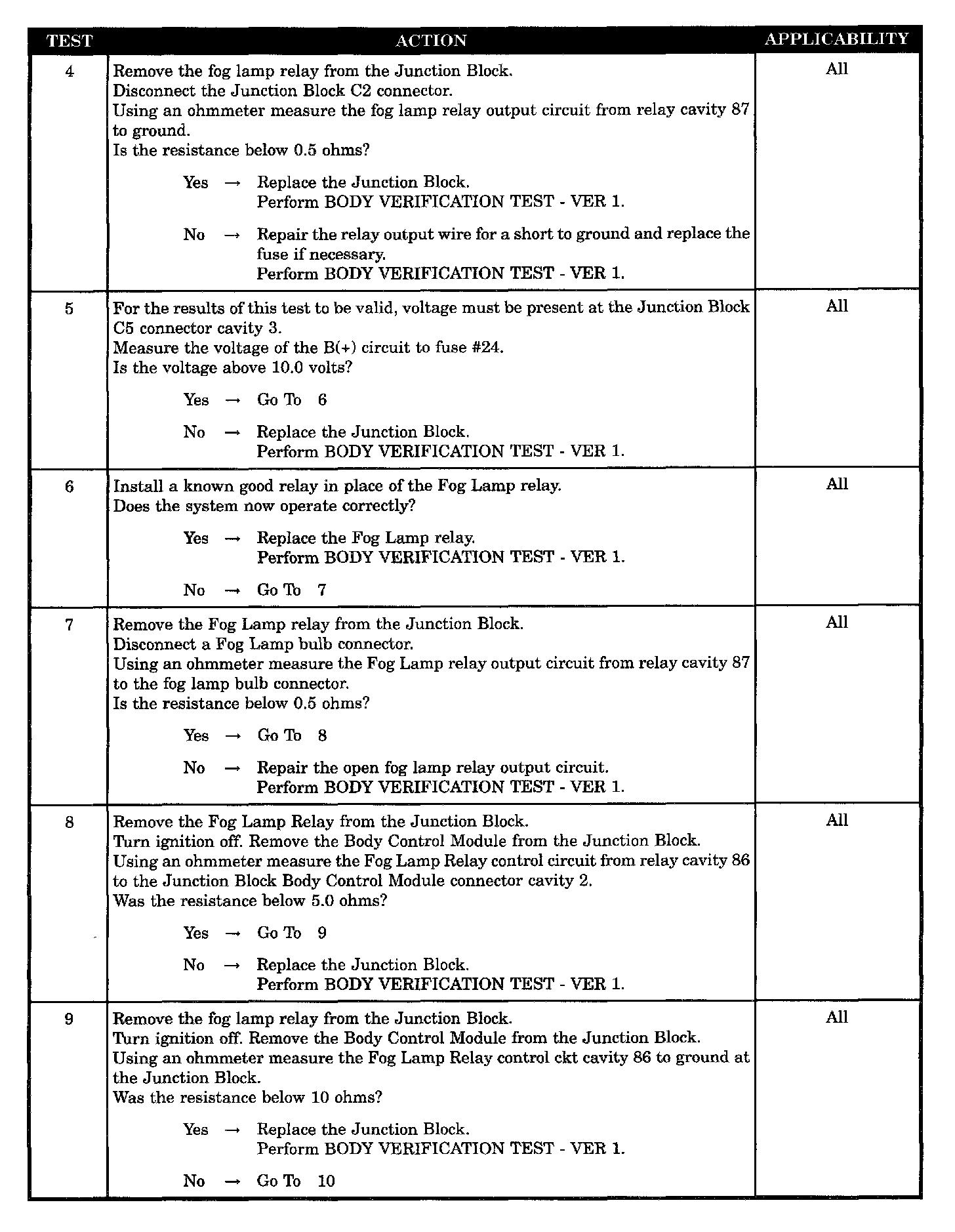

Tests 4 - 9:

Tests 10 - 13:

SYMPTOM
FOG LAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Junction block fog lamp relay output circuit
- Fog lamp switch sense shorted
- Open B(+)
- Fog lamp relay output circuit open
- Fog lamp relay
- Fog lamp relay control circuit open
- Fog lamp relay control circuit shorted to ground
- BCM fog lamp relay control
- BCM fog lamp sense shorted
- Fog lamp switch open/shorted
- Fog lamp relay output wire shorted to ground
- Fuse # 24
