Fog Lamps Will Not Turn Off

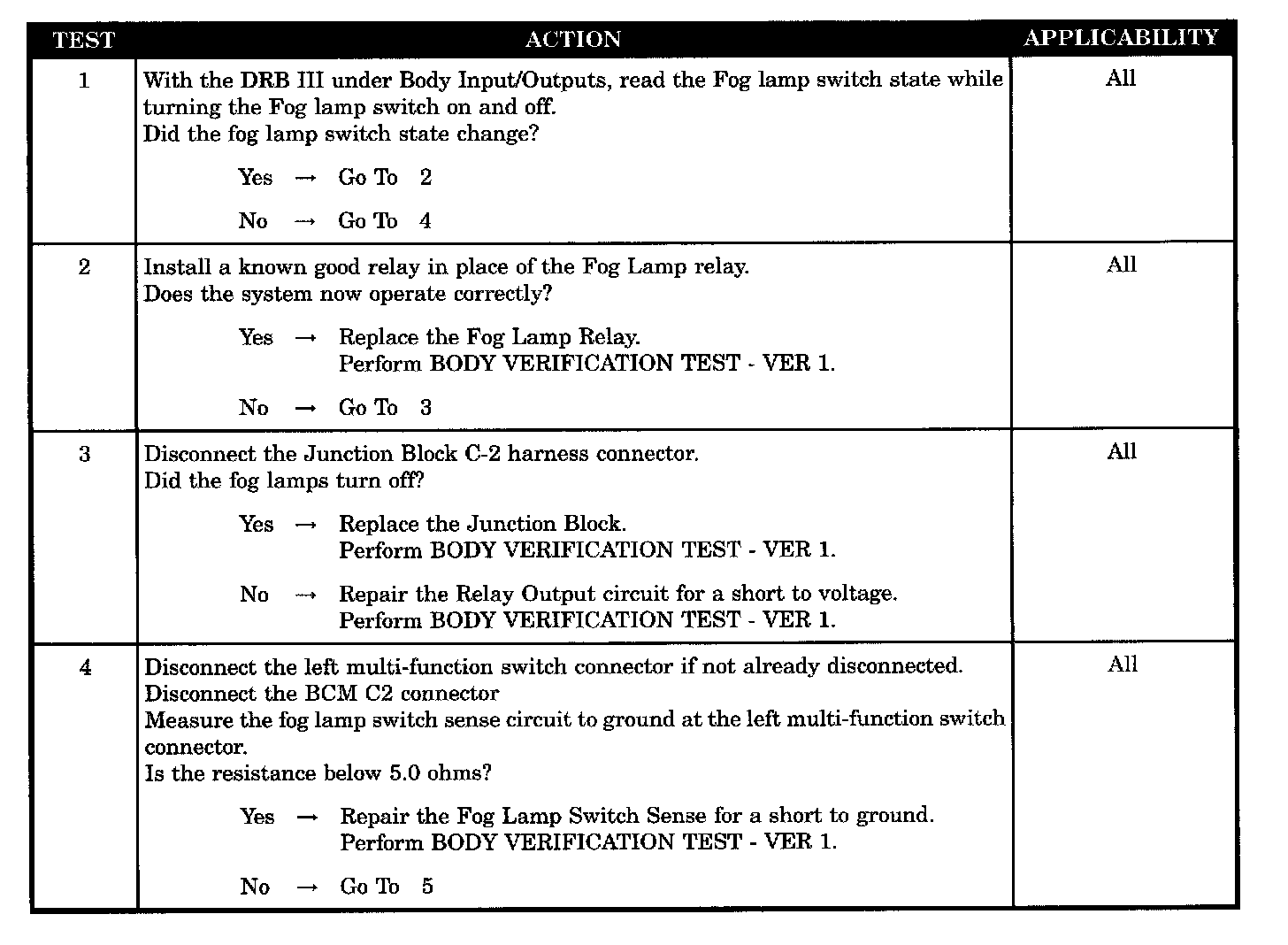

Tests 1 - 4:

Tests 5 - 6:

SYMPTOM
FOG LAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Fog lamp relay
- Junction block
- Fog lamp relay output circuit shorted to battery
- Fog lamp switch sense shorted
- Fog lamp switch open/shorted
- Body control module
