Fog Lamp Relay Circuit Shorted High

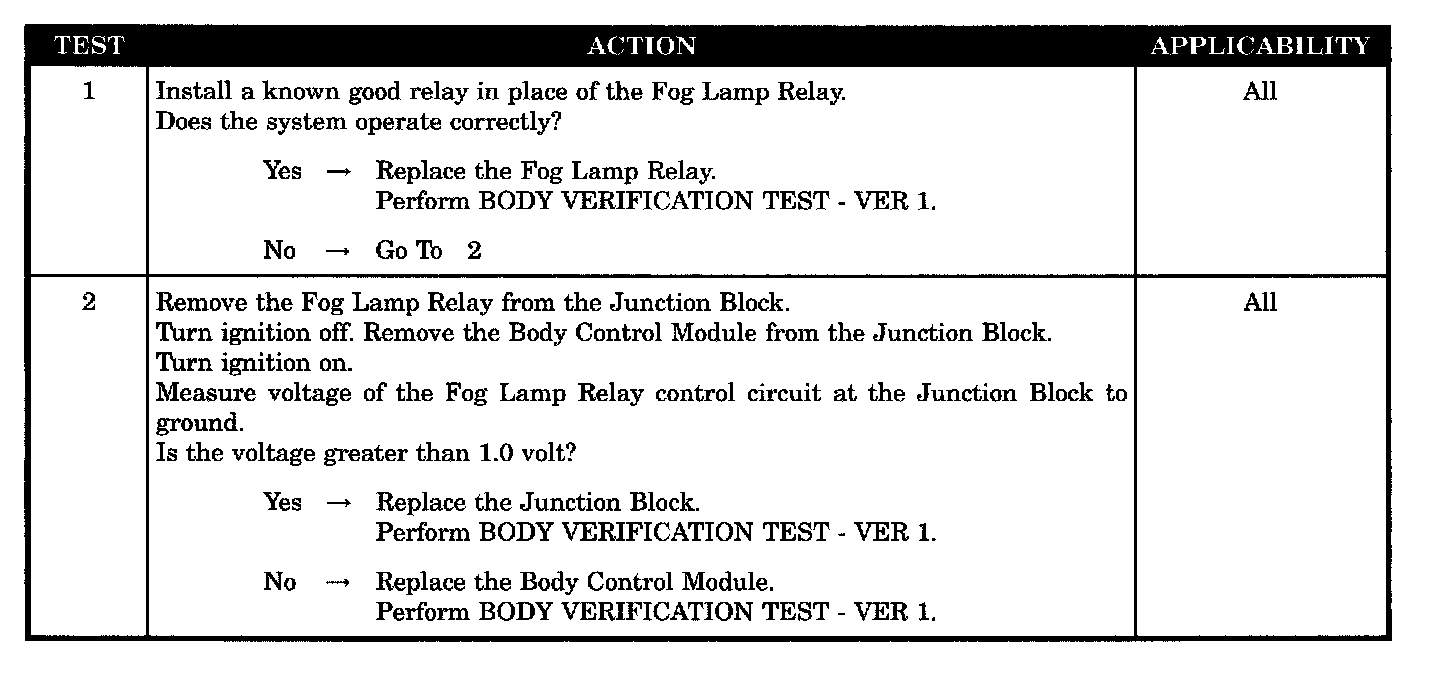

Tests 1 - 2:

SYMPTOM
FOG LAMP RELAY CIRCUIT SHORTED HIGH

WHEN MONITORED
Ignition in run position.

SET CONDITION
The BCM detects excessive current on the fog lamp relay control circuit.

POSSIBLE CAUSES
- Fog lamp relay
- Fog lamp relay control shorted to B(+)
- BCM internal defect fog lamp control shorted to battery
