Flash to Pass Inoperative

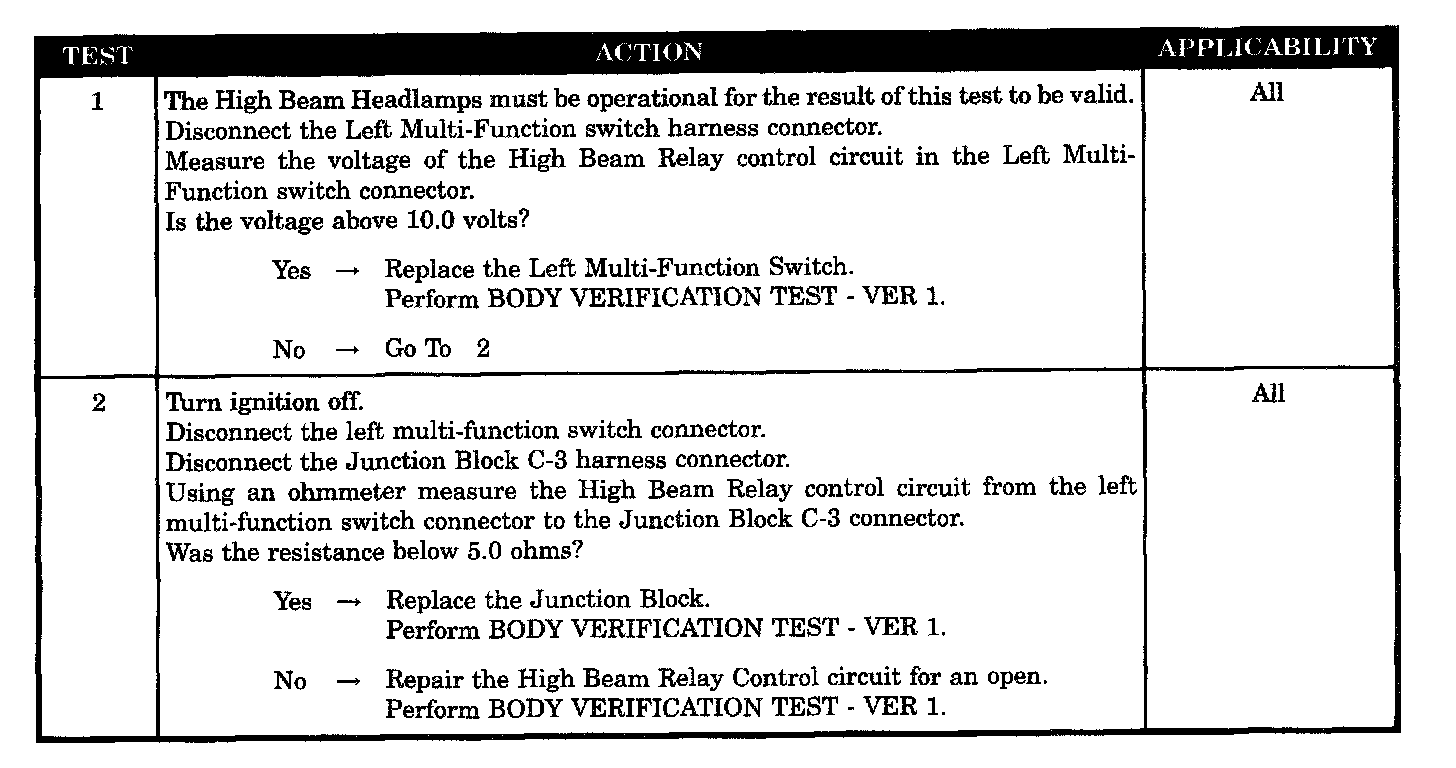

Tests 1 - 2:





SYMPTOM
FLASH TO PASS INOPERATIVE

POSSIBLE CAUSES
- Junction block high beam relay control open
- Left multi-function switch
- High beam relay control circuit open to left multi-function switch
