Passenger Thermistor Out of Range Low

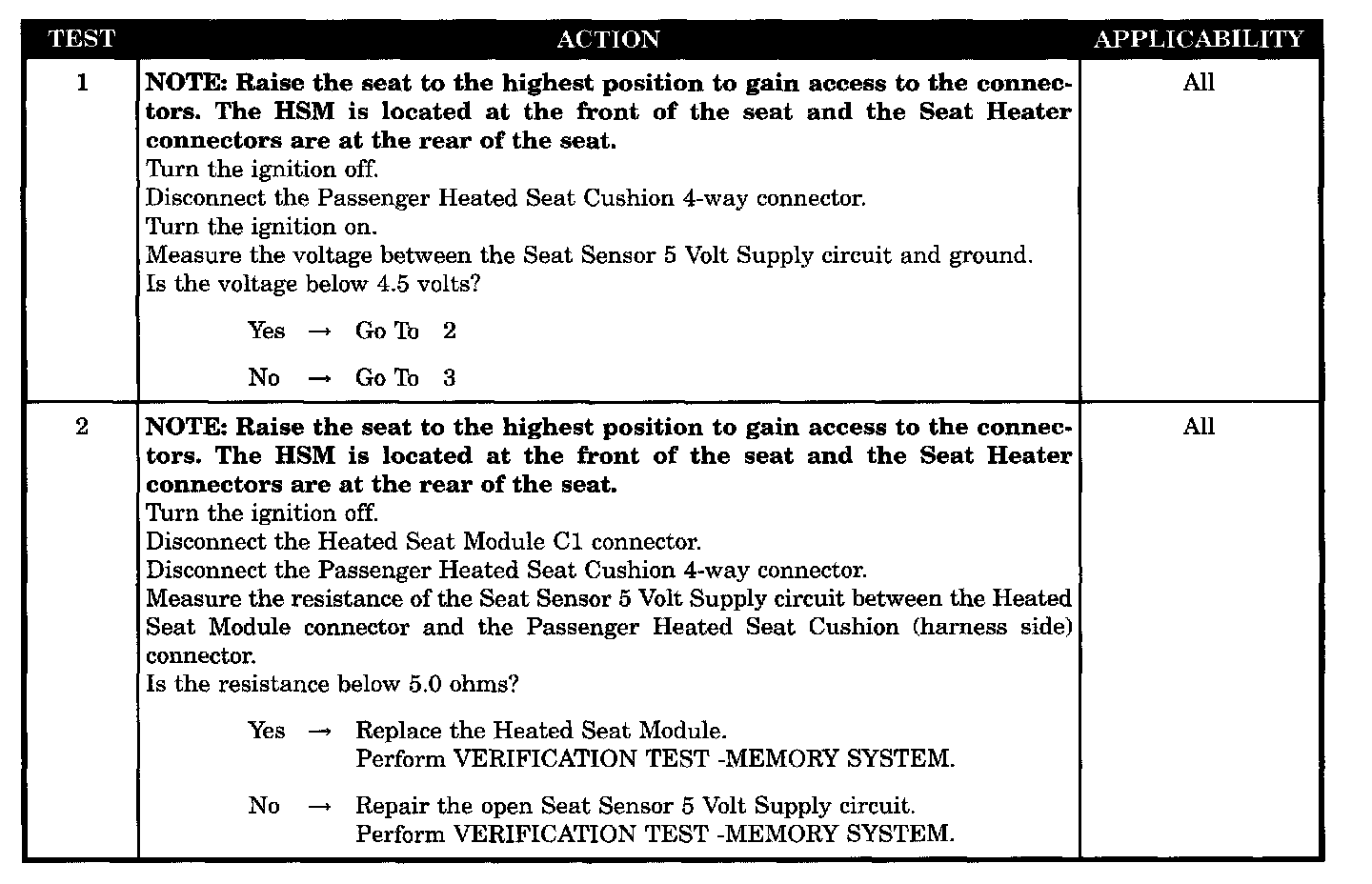

Tests 1 - 2:

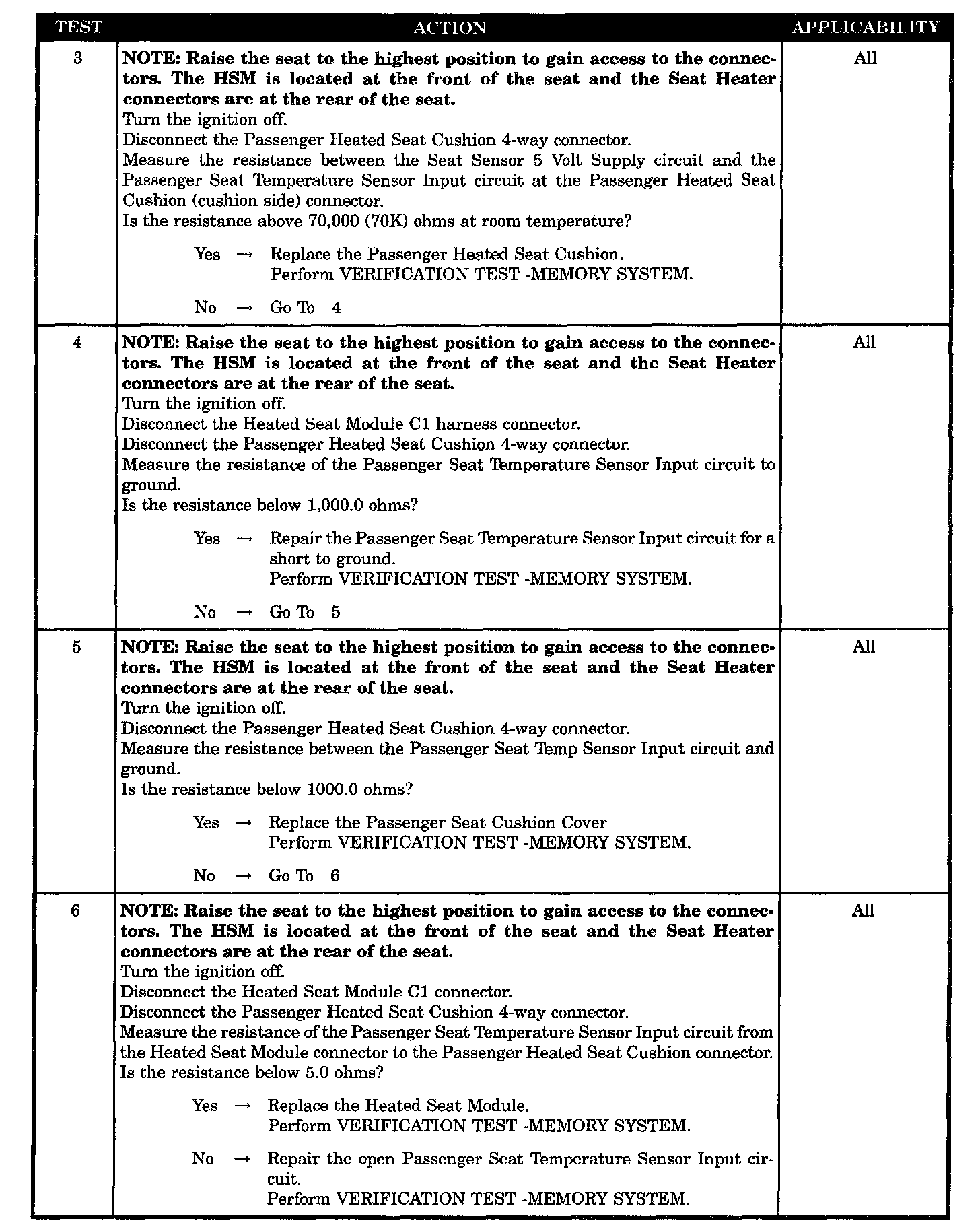

Tests 3 - 6:

SYMPTOM
PASSENGER THERMISTOR OUT OF RANGE LOW

WHEN MONITORED
With the ignition ON, during the heated seat operation.

SET CONDITION
This condition is immediately set when the Heated Seat Module senses a lesser value than the value stored in EEPROM.

POSSIBLE CAUSES
- Passenger heated seat cushion sensor open
- Passenger seat temperature sensor input circuit shorted to ground
- Passenger heated seat cushion sensor shorted to ground
- Passenger seat temperature sensor input circuit open
- Heated seat module
- Seat sensor 5 Volt supply circuit open
- Heated seat module-5 Volts open
