Right Rear Door Ajar Circuit Shorted to Ground

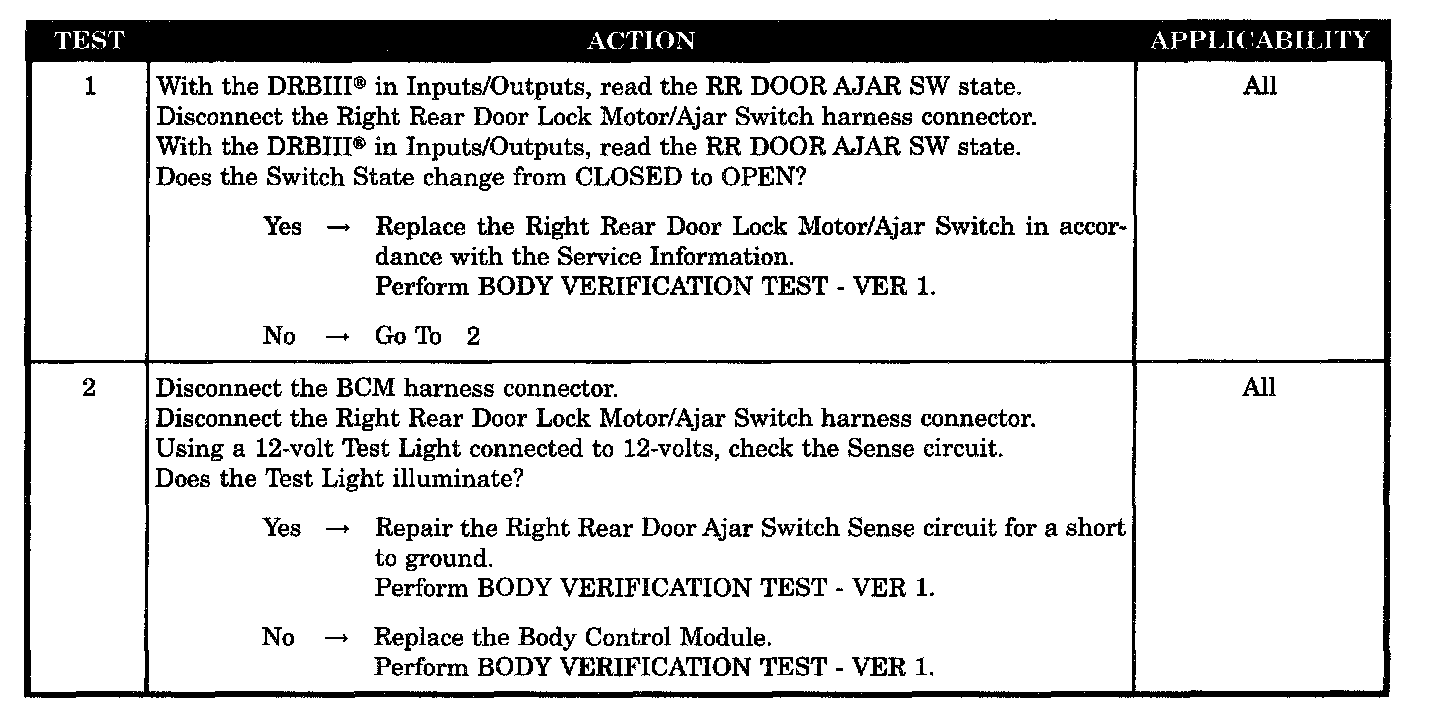

Tests 1 - 2:





SYMPTOM
RIGHT REAR DOOR AJAR CIRCUIT SHORTED TO GROUND

POSSIBLE CAUSES
- Right rear door lock motor/ajar switch shorted to ground
- Right rear door ajar switch sense circuit shorted to ground
- Body control module internal fault
