Hood Ajar Circuit Shorted to Ground (If Equipped)

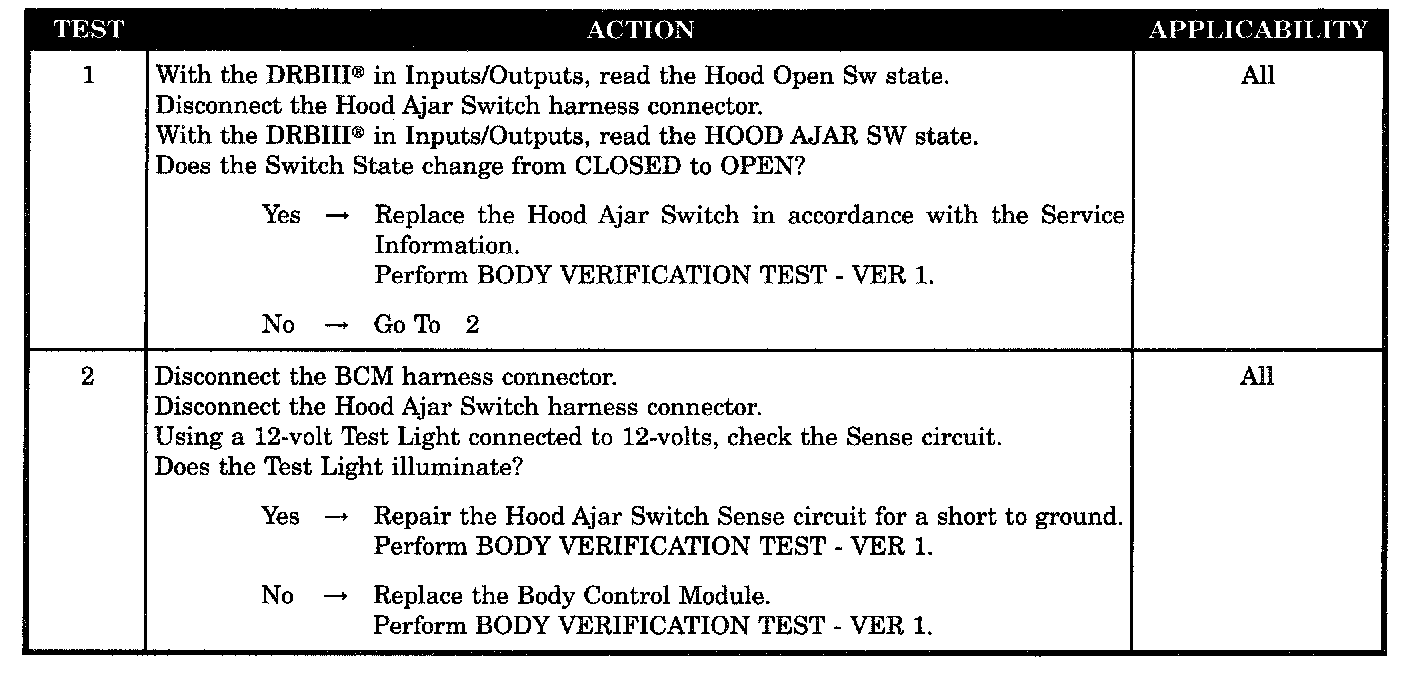

Tests 1 - 2:





SYMPTOM
HOOD AJAR CIRCUIT SHORTED TO GROUND (IF EQUIPPED)

POSSIBLE CAUSES
- Hood ajar switch shorted to ground
- Hood ajar switch sense circuit, shorted to ground
- BCM, shorted to ground
