Rain Sensor Messages Not Received

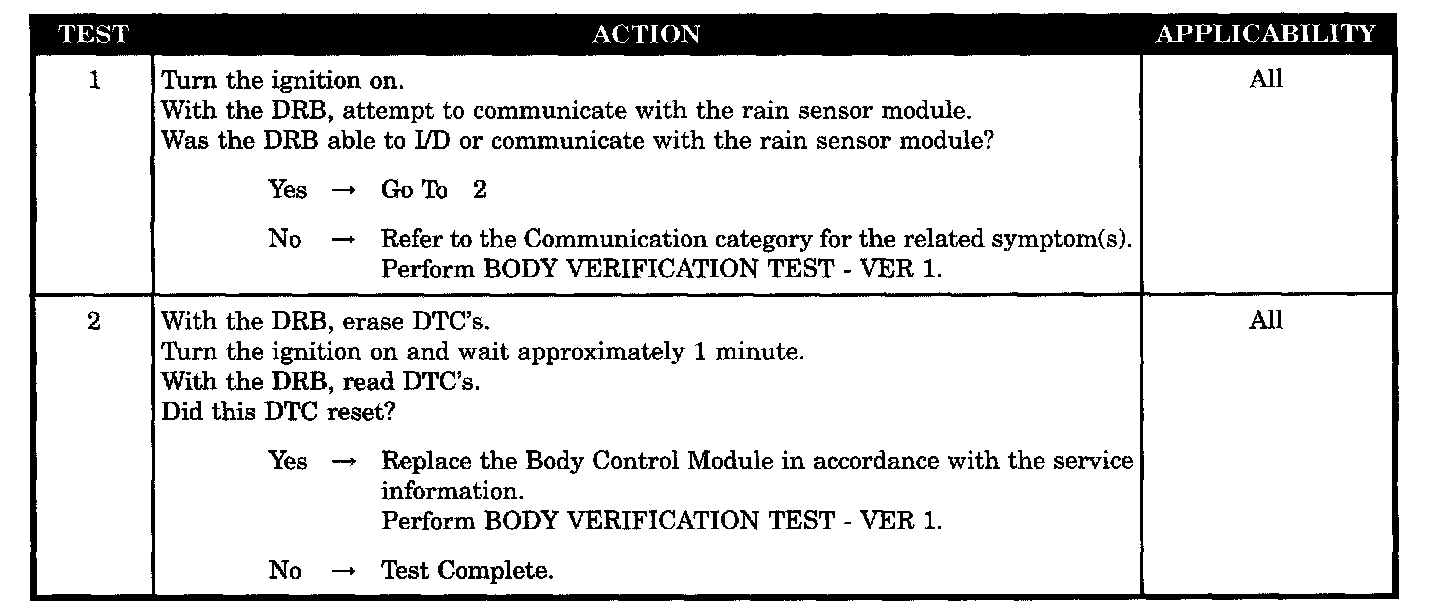

Tests 1 - 2:

SYMPTOM
RAIN SENSOR MESSAGES NOT RECEIVED


WHEN MONITORED
With the ignition in run, and the IOD fuse installed.

SET CONDITION
The BCM does not receive any messages from the rain sensor module.

POSSIBLE CAUSES
- Attempt to communicate with the rain sensor module
- Body control module
