No Response From Adjustable Pedals Module

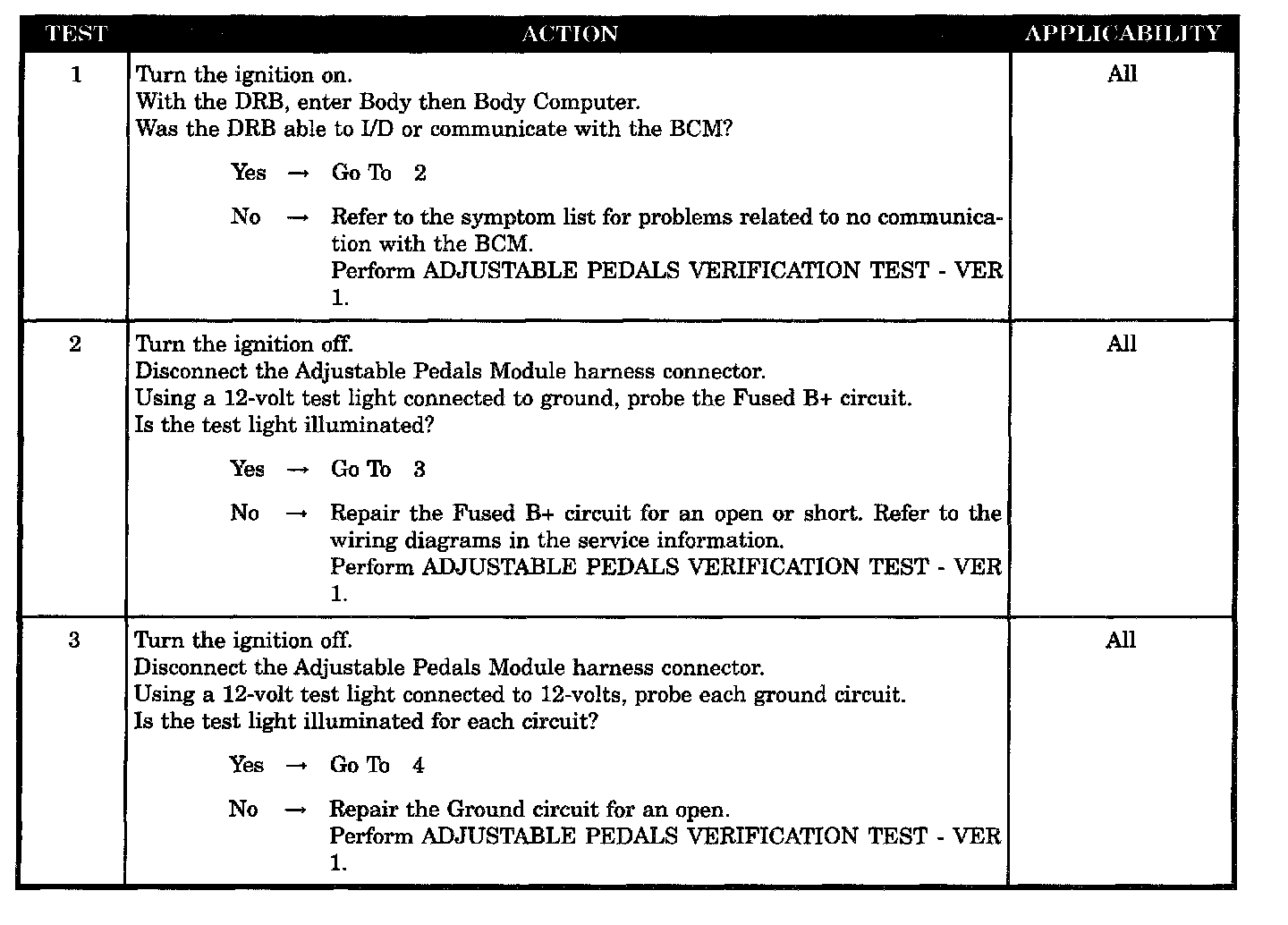

Tests 1 - 3:

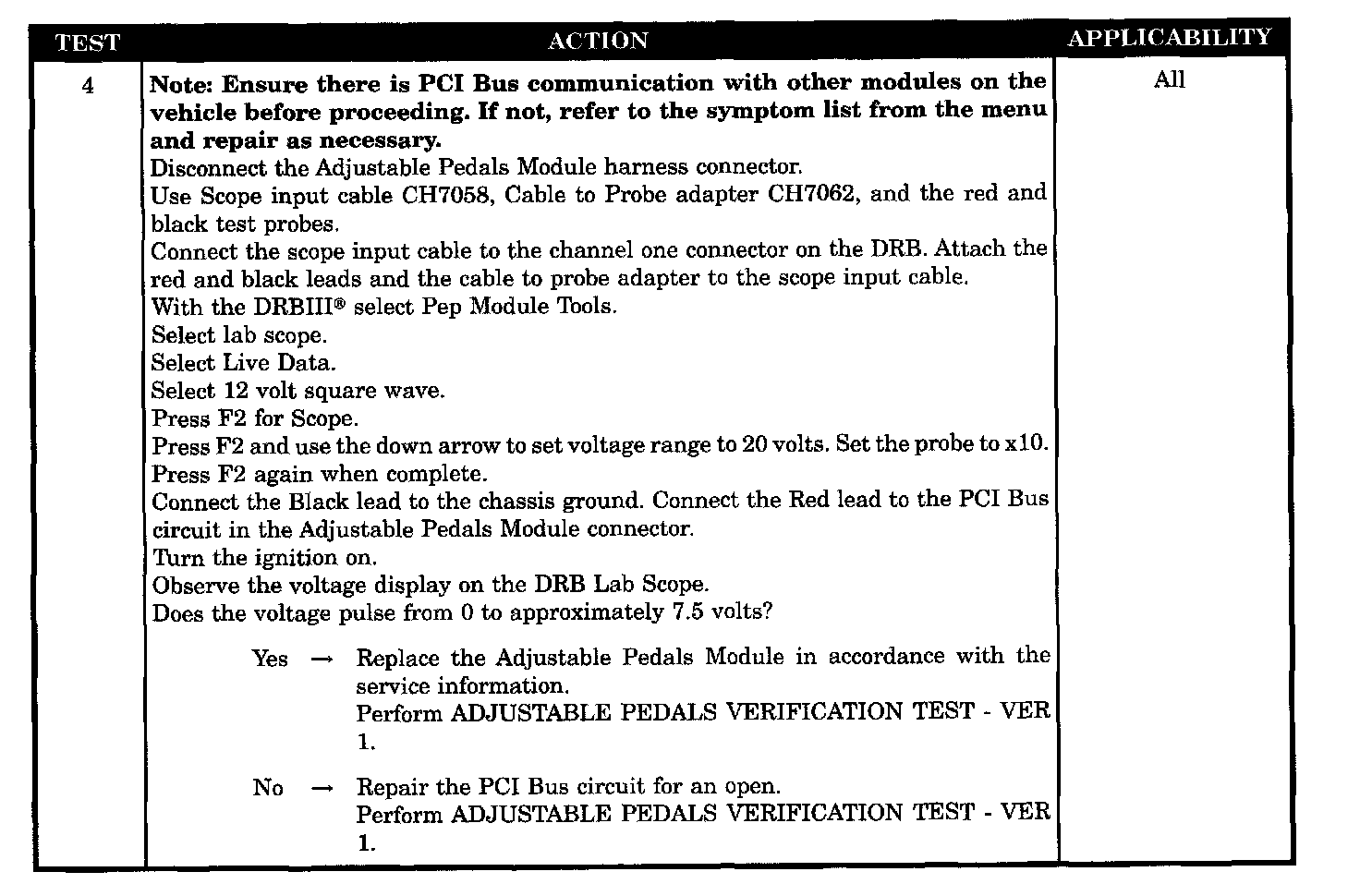

Test 4:

SYMPTOM
NO RESPONSE FROM ADJUSTABLE PEDALS MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Fused B(+) circuit open
- Ground circuit open
- open PCI bus circuit
- Adjustable pedals module
