Bus (+/-) Signals Open/No Response From VIC

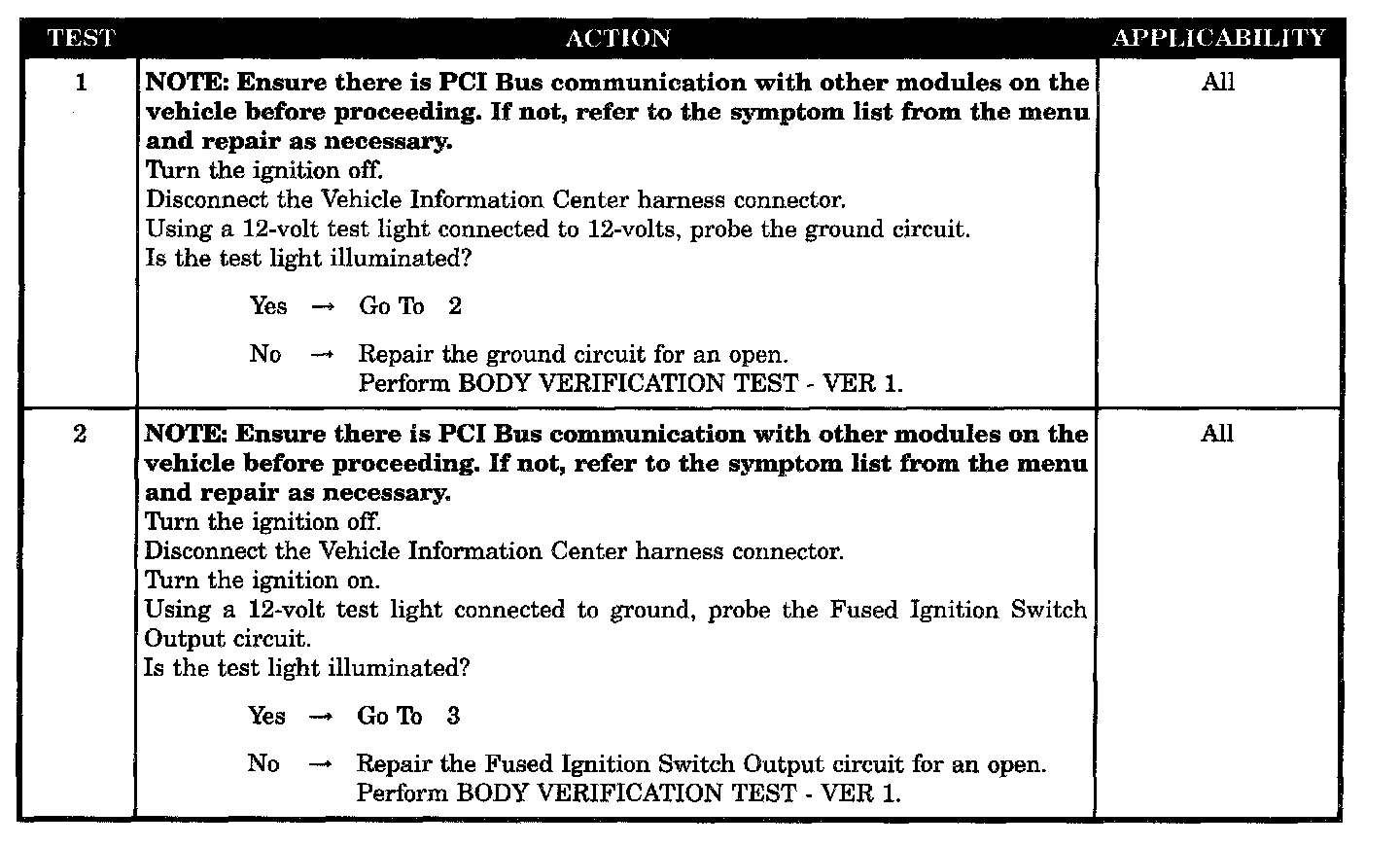

Tests 1 - 2:

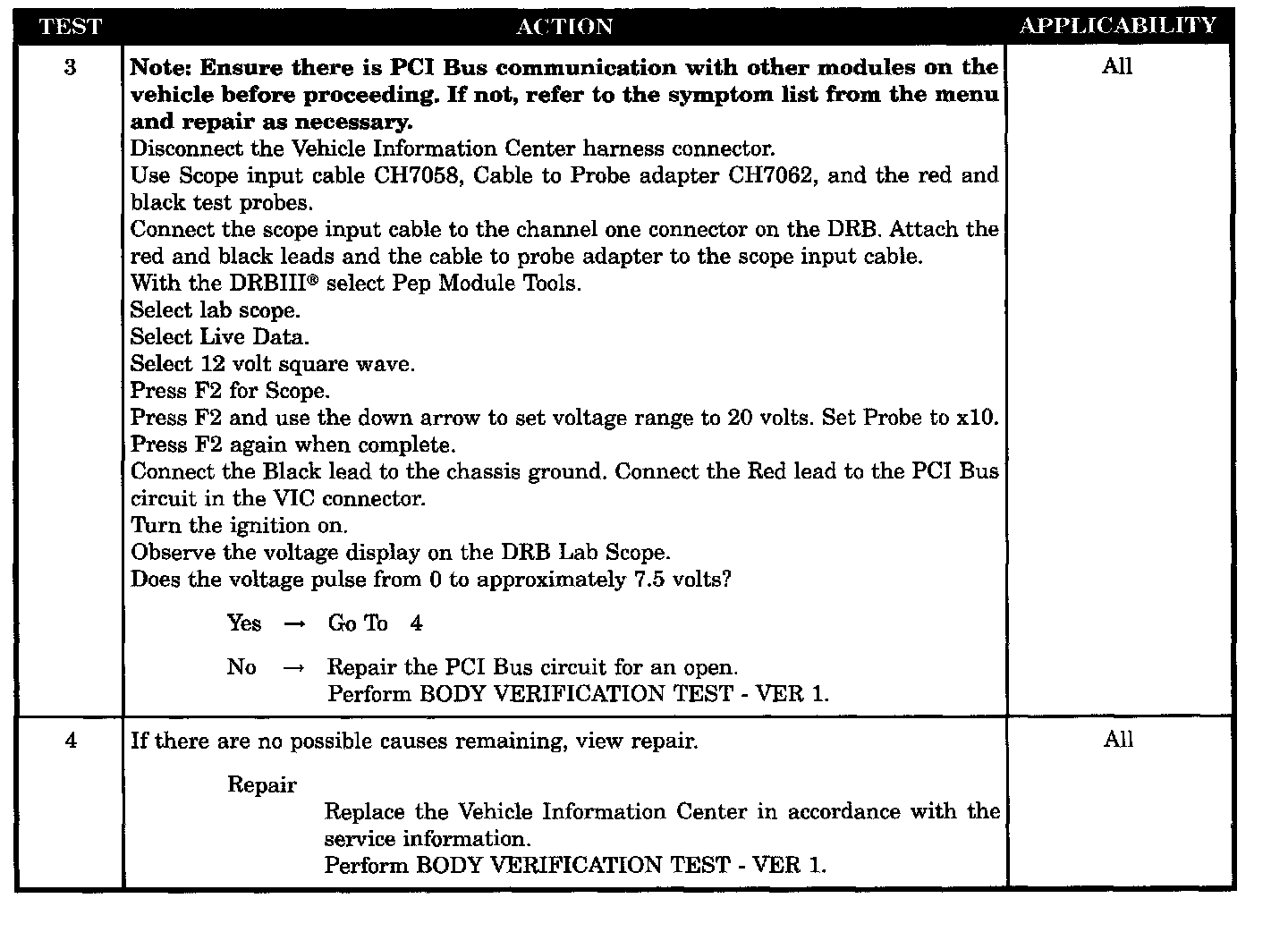

Tests 3 - 4:

SYMPTOM
BUS +/- SIGNALS OPEN OR NO RESPONSE FROM VEHICLE INFORMATION CENTER

POSSIBLE CAUSES
- Ground circuit open
- Fused ignition switch output circuit open
- Open PCI bus circuit
- Vehicle information center (VIC)
