Bus (+/-) Signals Open/No Response From Seat Module

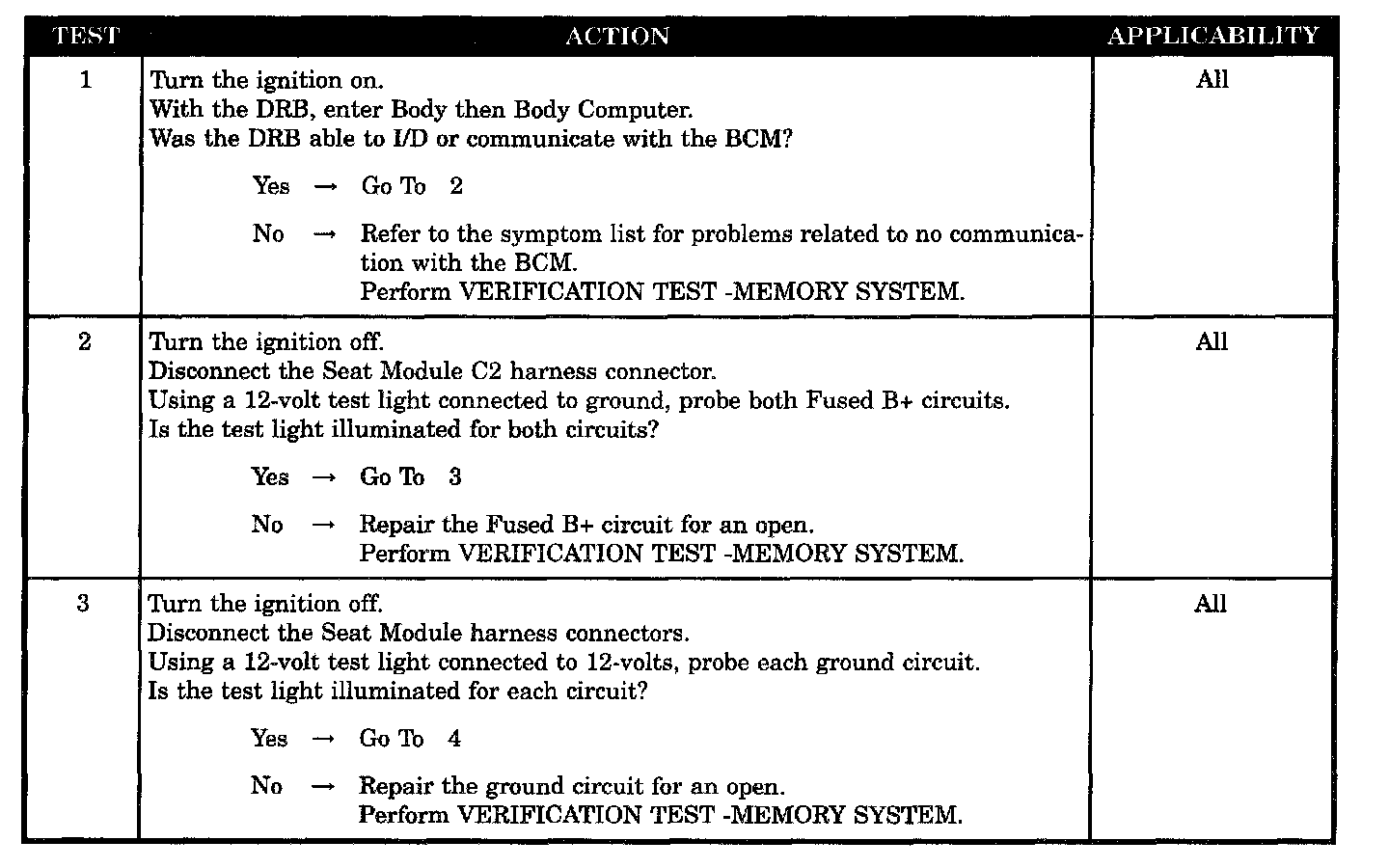

Tests 1 - 3:

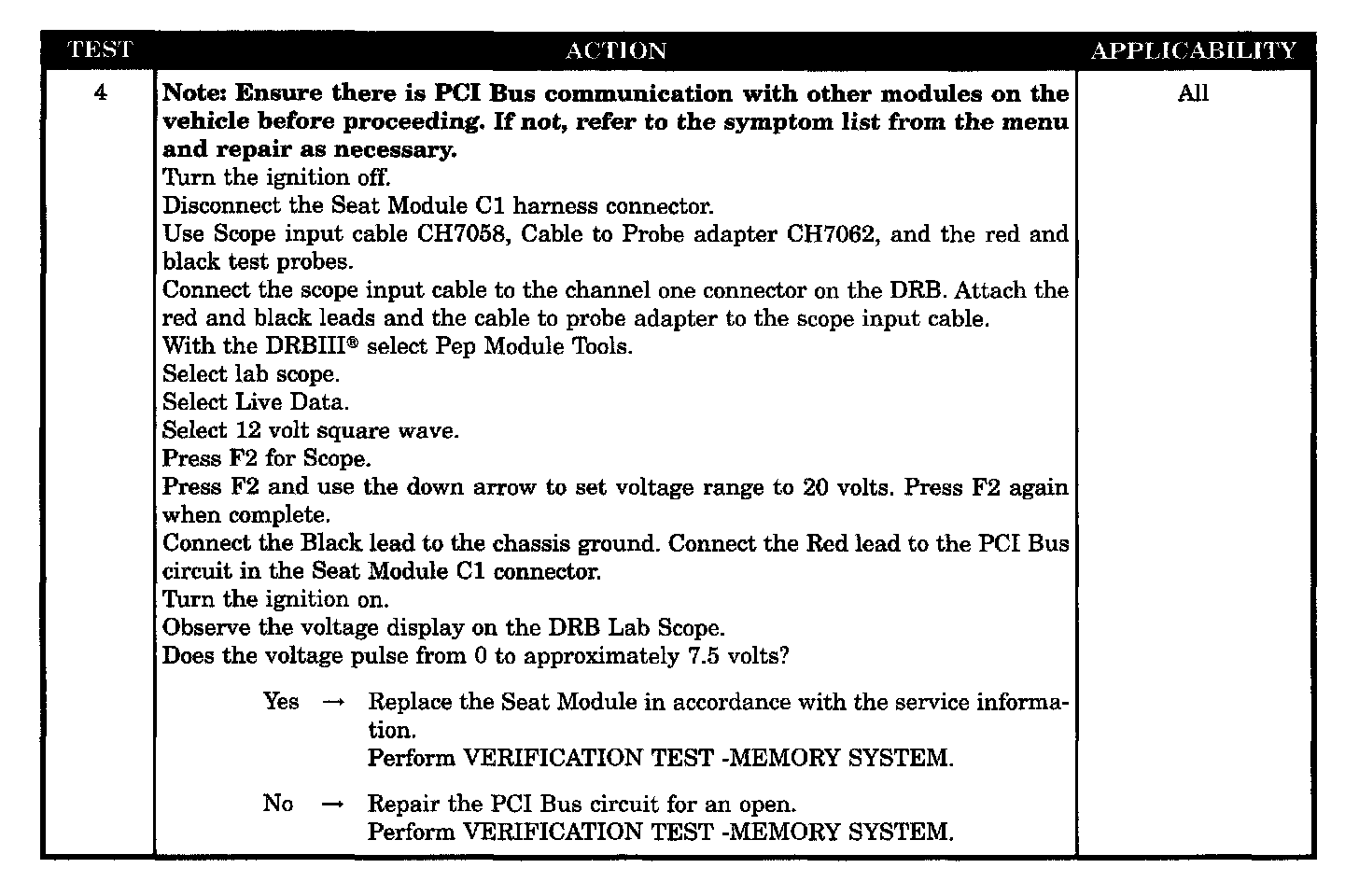

Test 4:

SYMPTOM
BUS +/- SIGNALS OPEN OR NO RESPONSE FROM SEAT MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Fused B(+) circuit open
- Ground circuit open
- Open PCI bus circuit
- Seat module
