Bus (+/-) Signals Open/No Response From Instrument Cluster

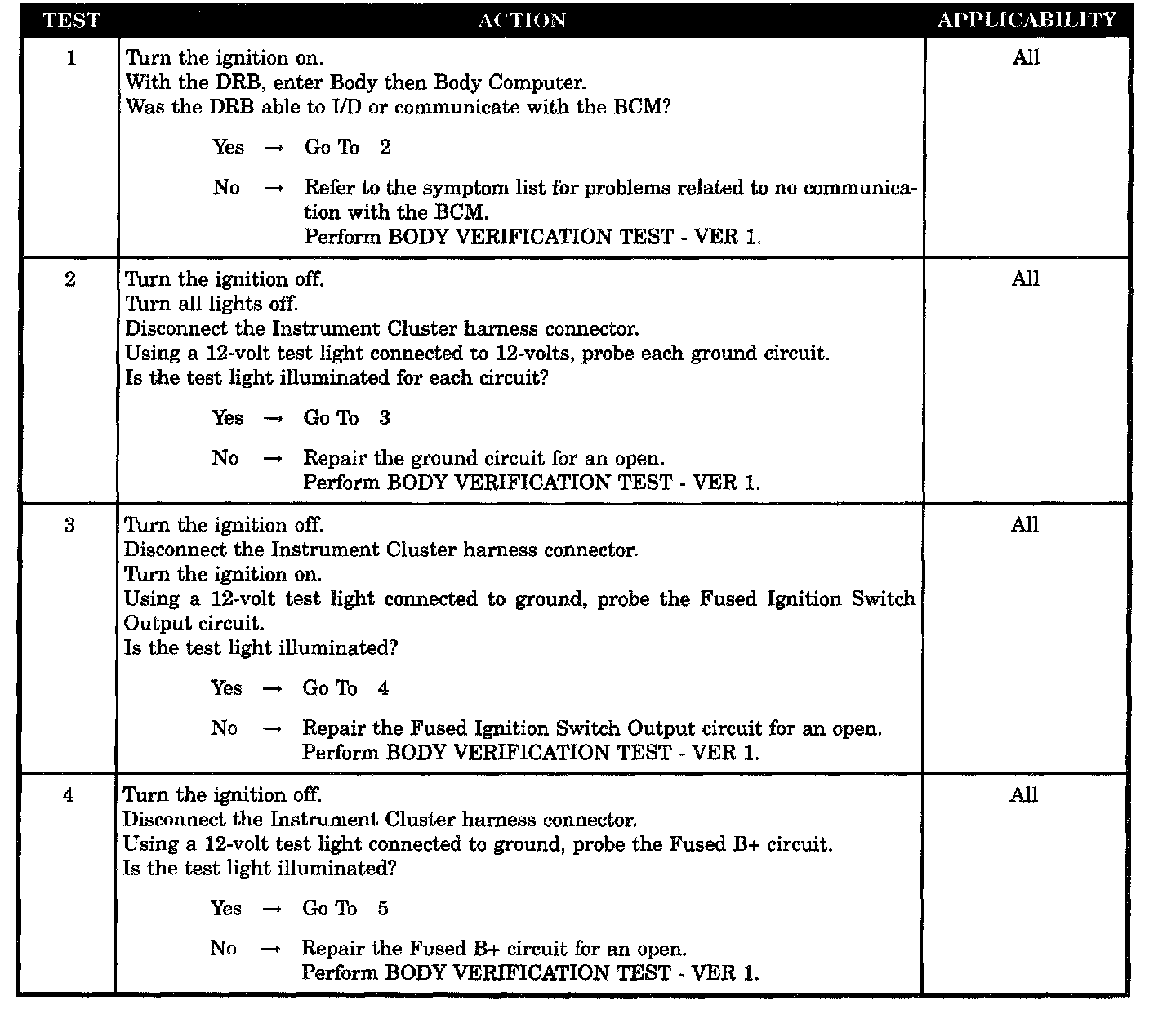

Tests 1 - 4:

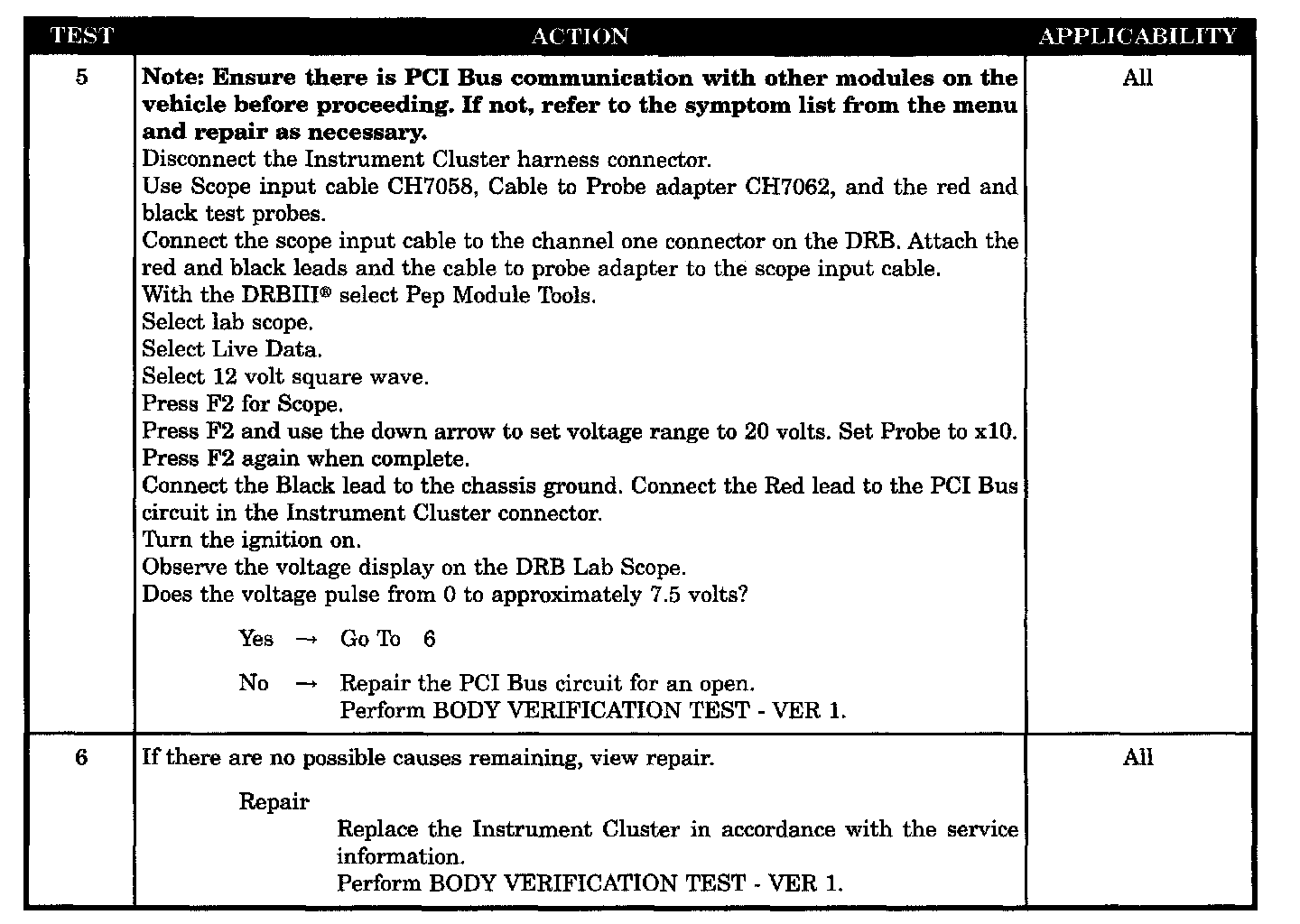

Tests 5 - 6:

SYMPTOM
BUS +/- SIGNALS OPEN OR NO RESPONSE FROM INSTRUMENT CLUSTER

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- OPEN GROUND CIRCUIT
- Open fused ignition switch output circuit
- Open fused B+ circuit
- Open PCI bus circuit
- Instrument cluster
