Bus (+/-) Signals Open/No Response From Driver Door Module

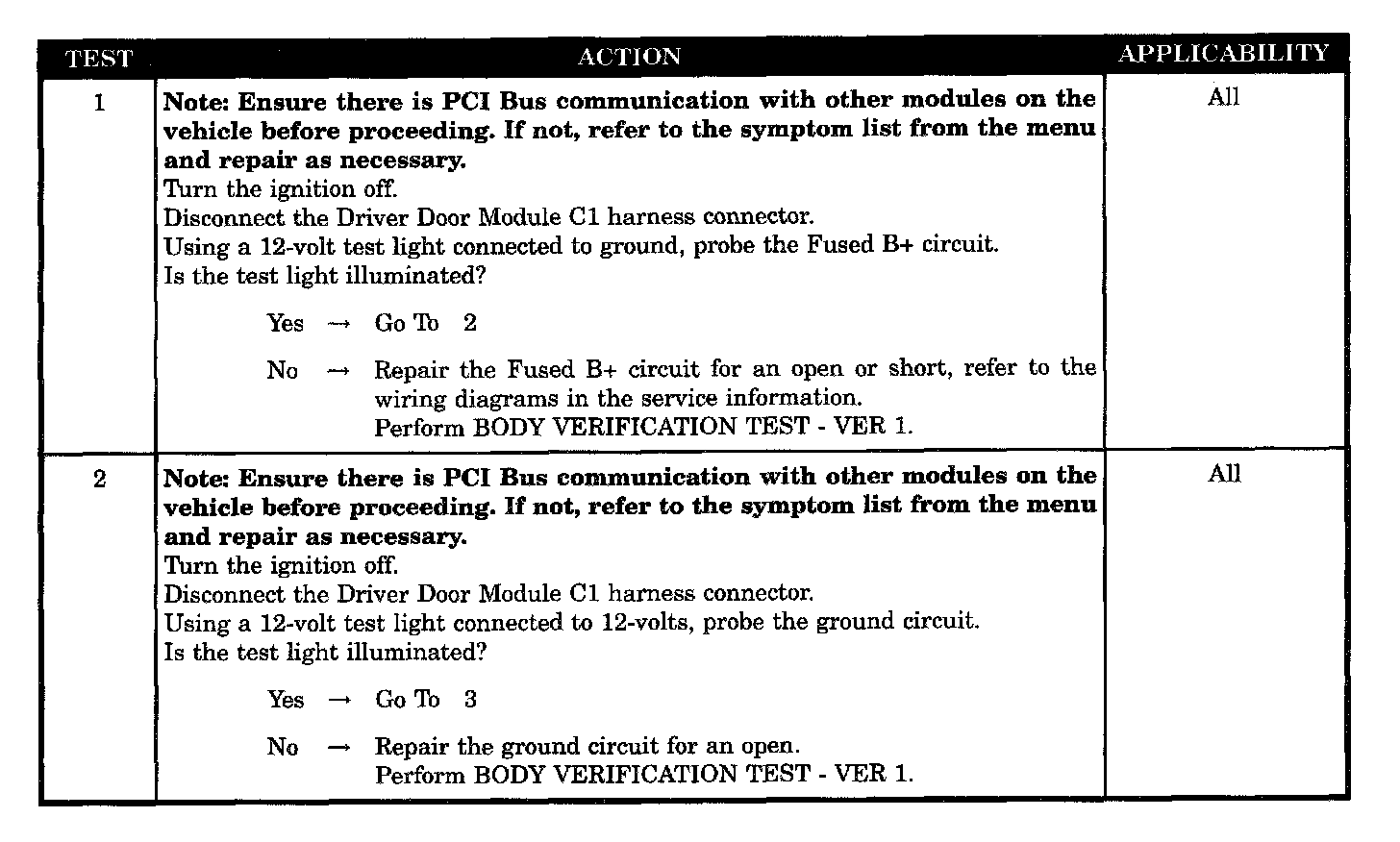

Tests 1 - 2:

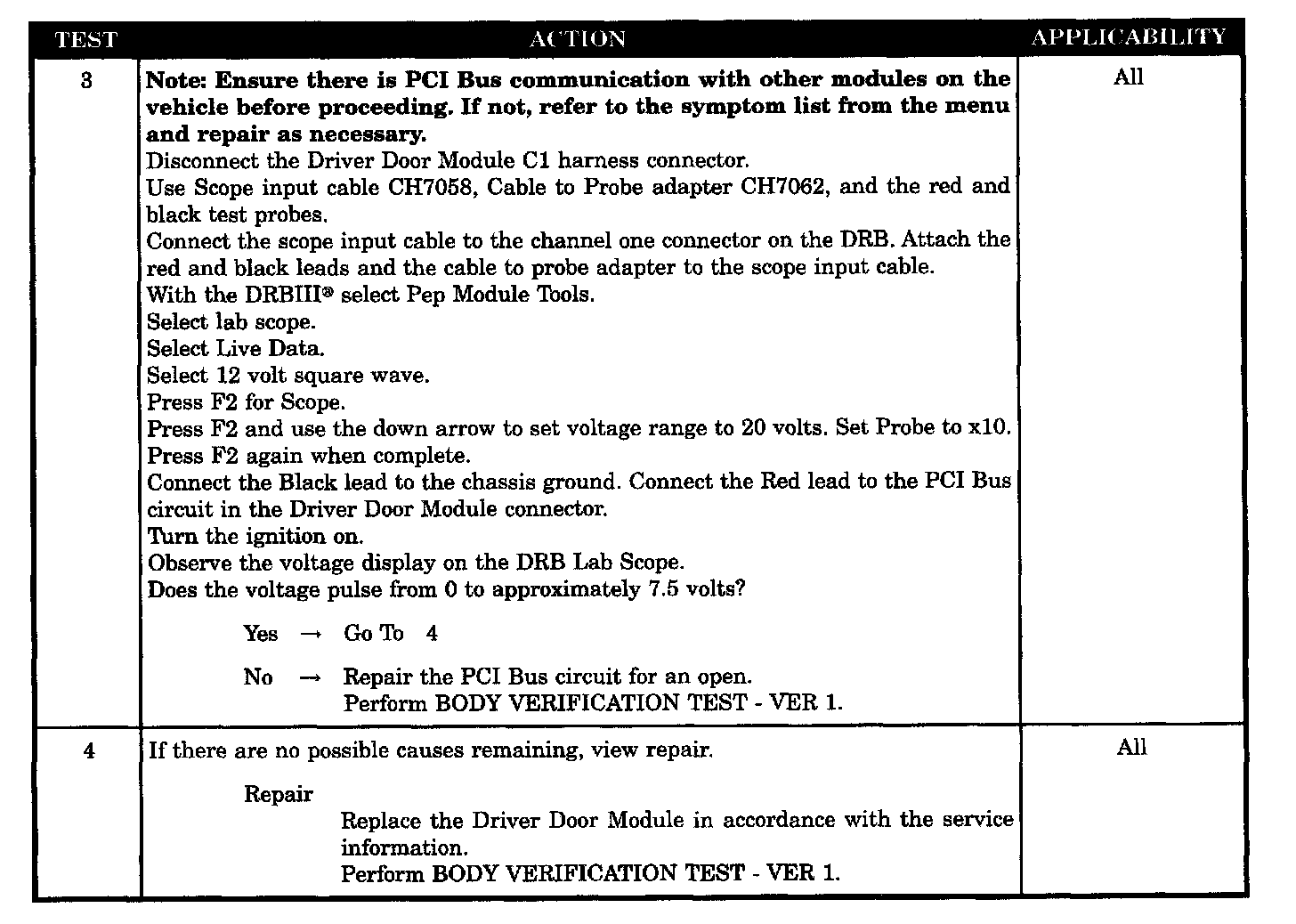

Tests 3 - 4:

SYMPTOM
BUS +/- SIGNALS OPEN OR NO RESPONSE FROM DRIVER DOOR MODULE

POSSIBLE CAUSES
- Open fused B+ circuit
- Open ground circuit
- Open PCI bus circuit
- Driver door module
