Bus (+/-) Signals Open/No Response From BCM

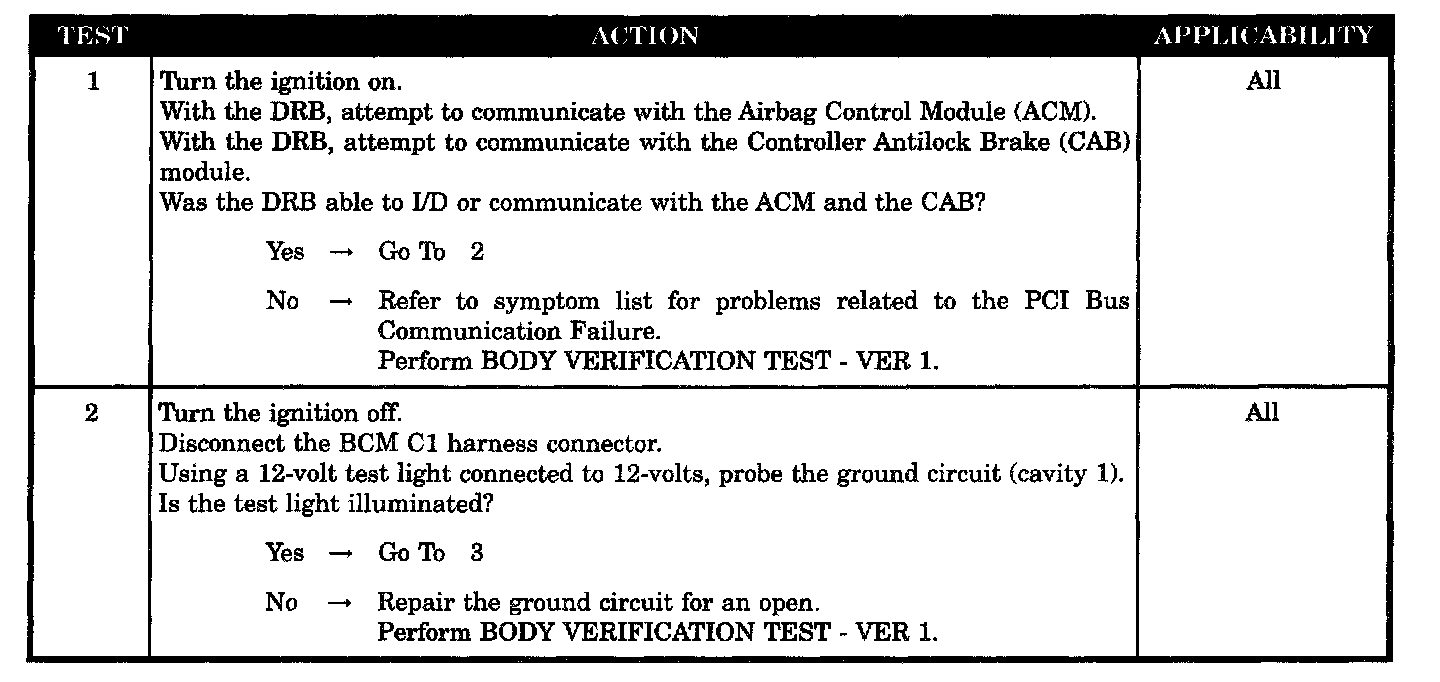

Tests 1 - 2:

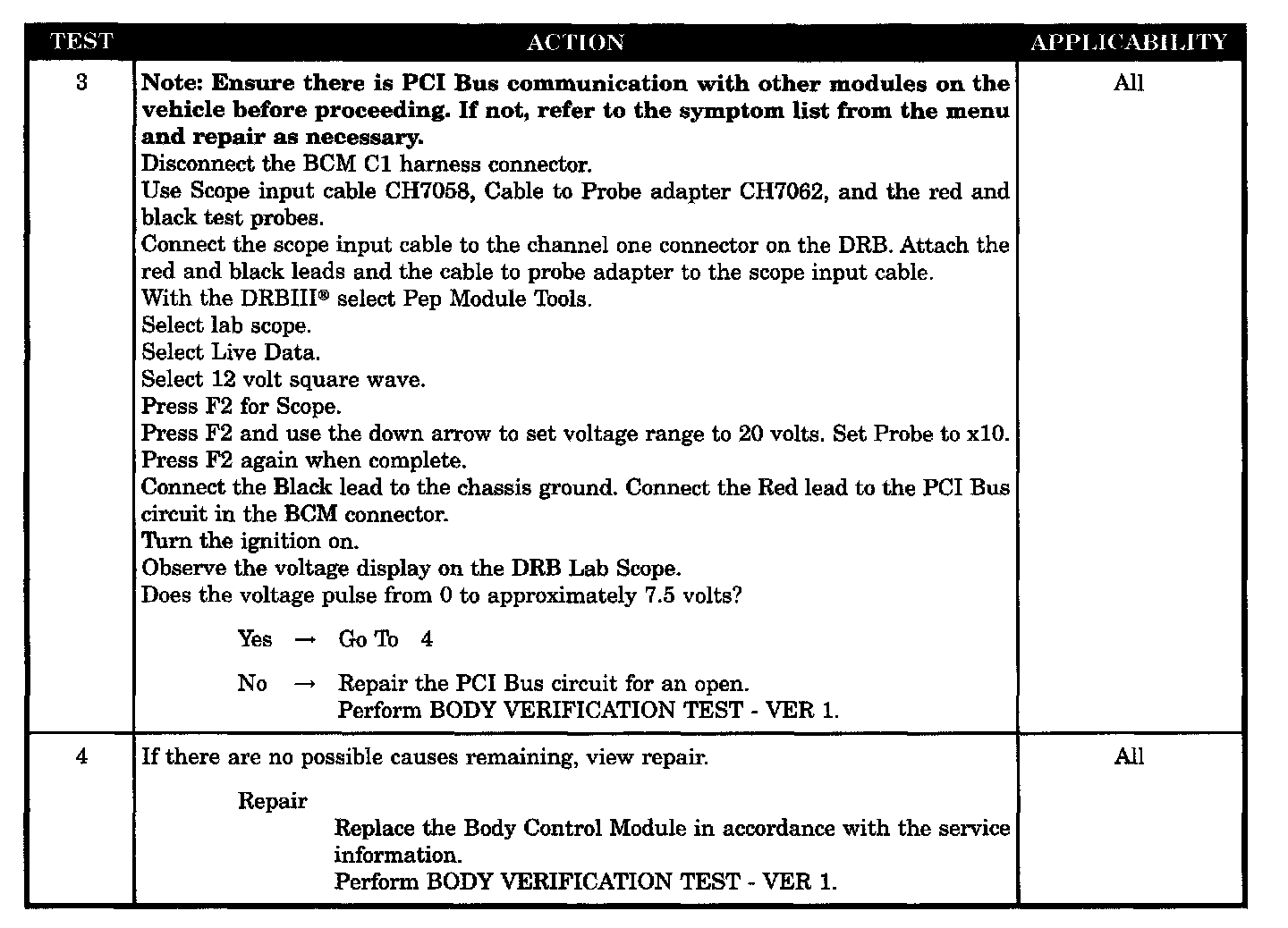

Tests 3 - 4:

SYMPTOM
BUS +/- SIGNALS OPEN OR NO RESPONSE FROM BODY CONTROL MODULE

POSSIBLE CAUSES
- Attempt to communicate with another module
- Open ground circuit
- Open PCI bus circuit
- Body control module
