Right Front Sensor Circuit Failure

Test 1 - 2

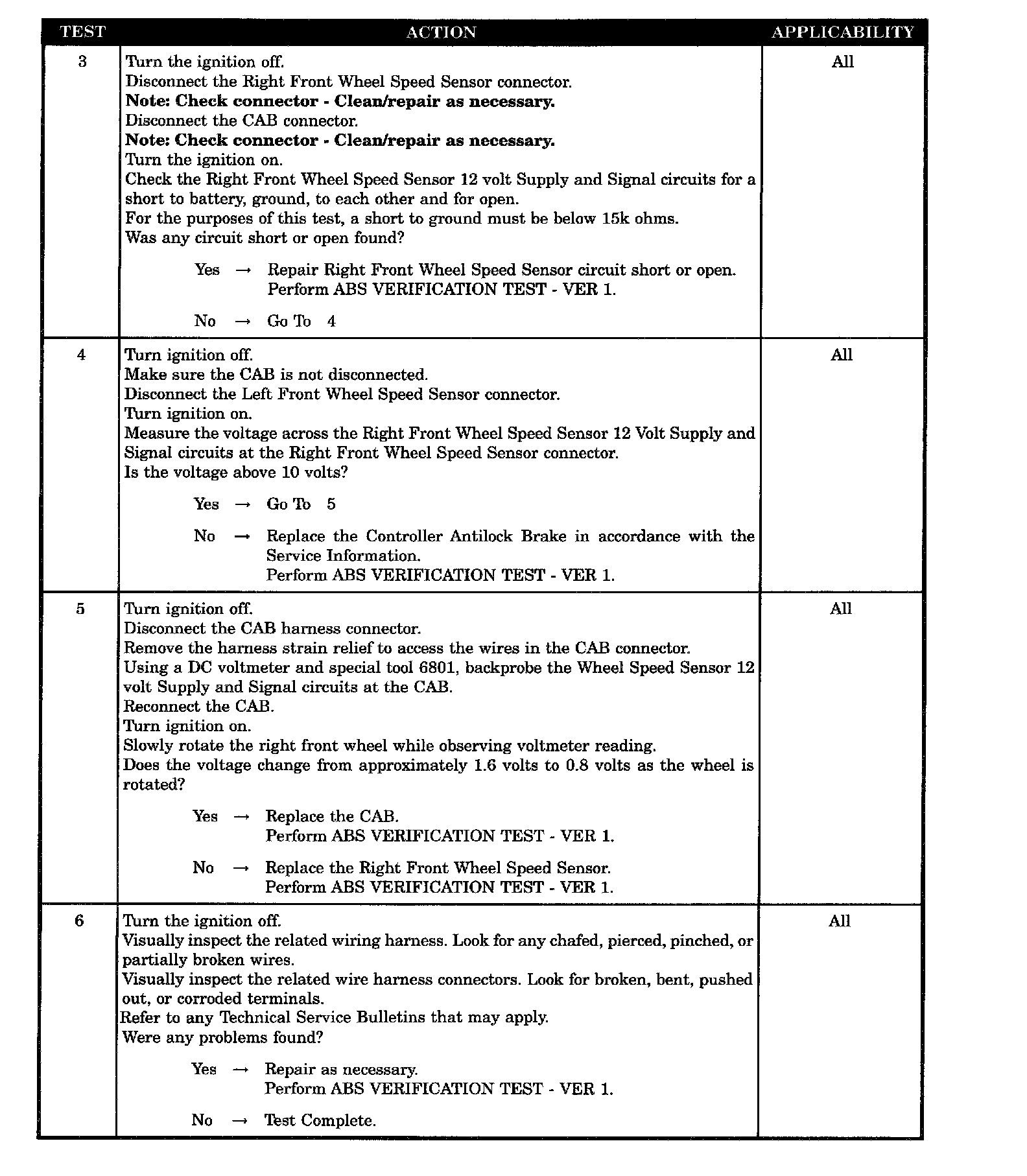

Test 3 - 6

Symptom:
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored: Ignition on. The CAB monitors the wheel speed circuit every 7 milliseconds (ms).

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.





Possible Causes
