Controller Failure

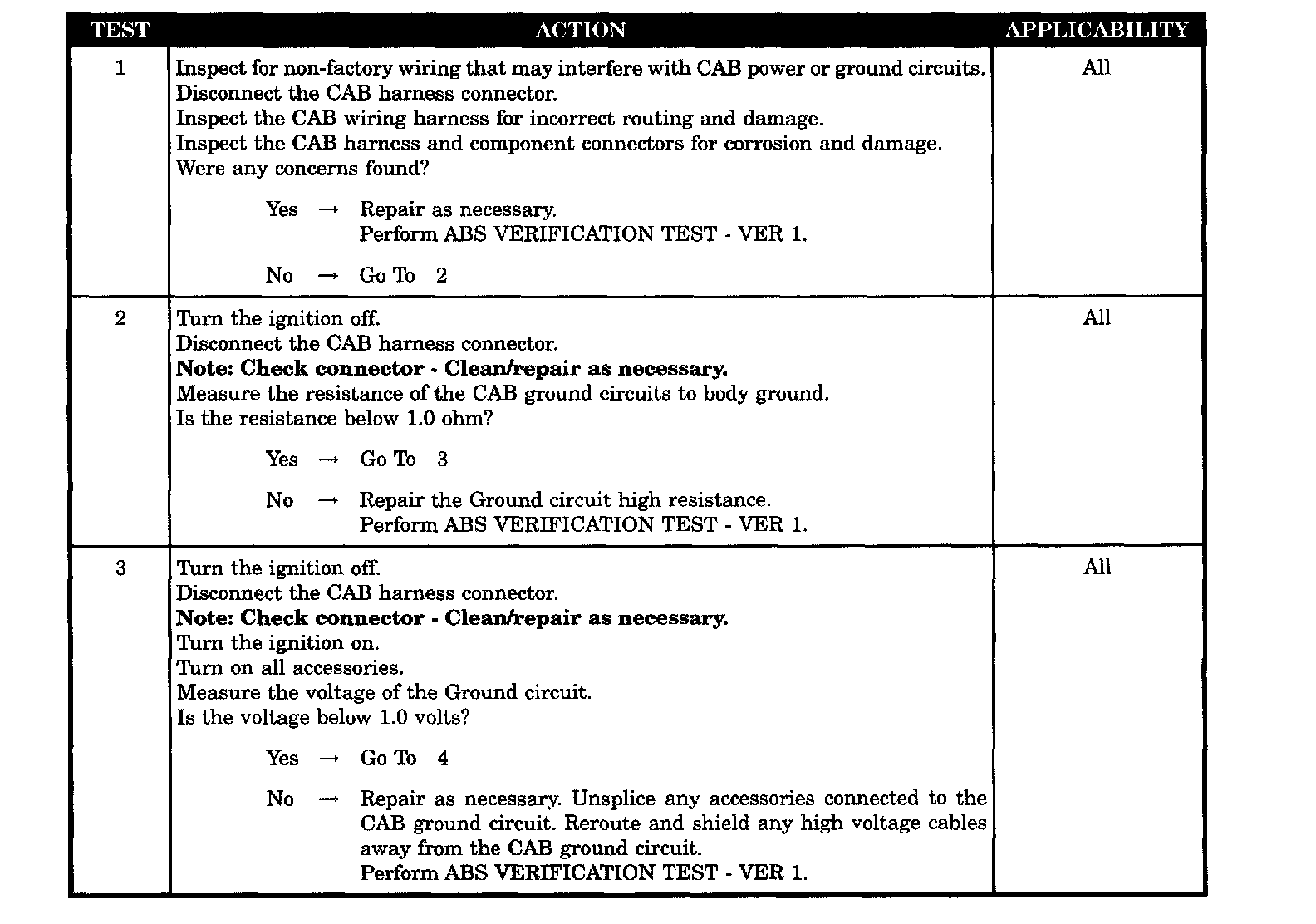

Test 1 - 3





Test 4

Symptom:
CONTROLLER FAILURE

When Monitored and Set Condition:
CONTROLLER FAILURE

When Monitored: Ignition on. The CAB monitors its internal microprocessors for correct operation.

Set Condition: If the CAB detects an internal fault, the DTC is set.





Possible Causes
