Cluster Fault

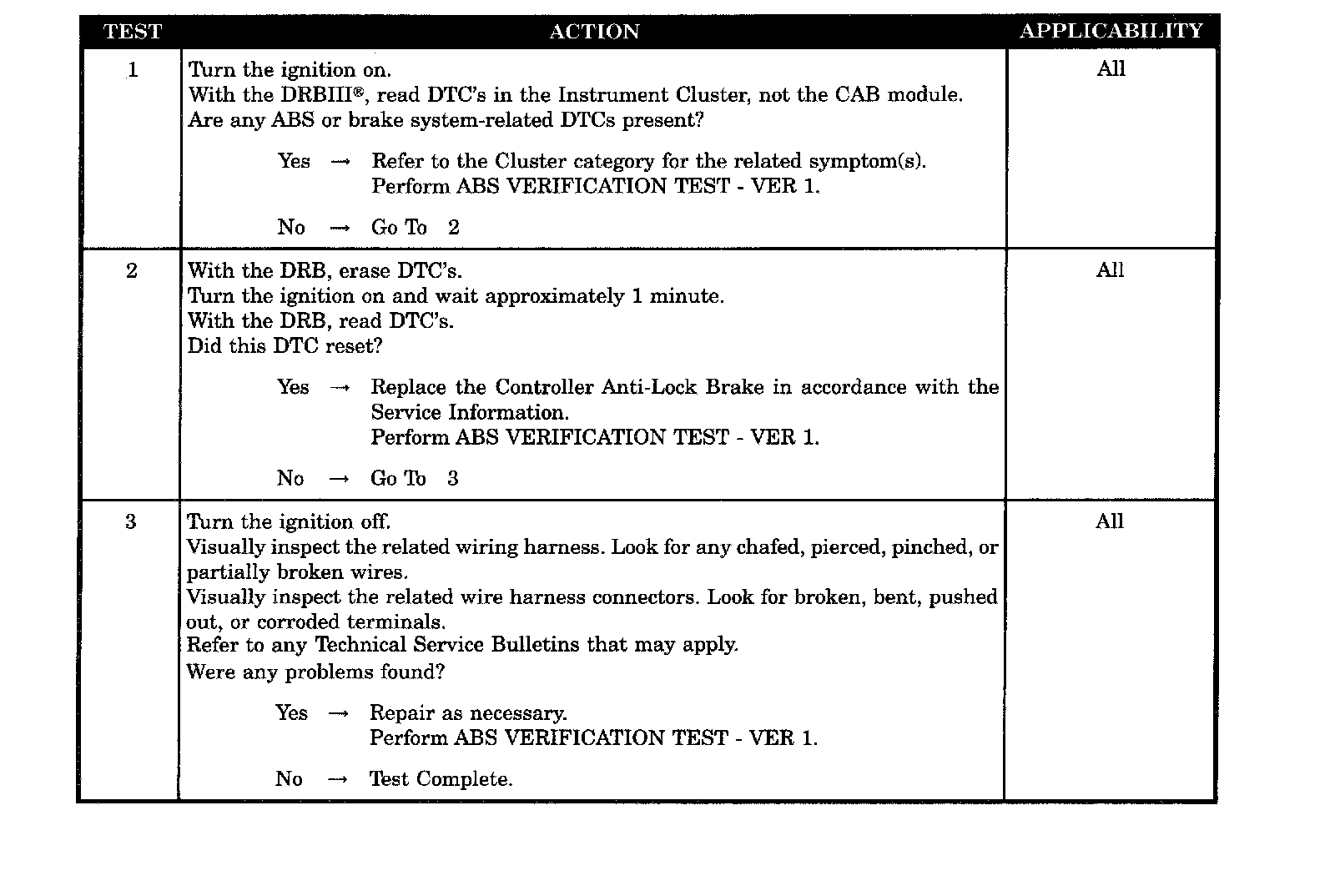

Test 1 - 3

Symptom:
CLUSTER FAULT

When Monitored and Set Condition:
CLUSTER FAULT

When Monitored: Ignition on, every time a message is sent from the Instrument cluster.

Set Condition: When the message from the instrument cluster, via the PCI Bus, informs the CAB that it cannot turn on the ABS Warning Indicator or the Red Brake Warning Indicator.





Possible Causes
