Reverse Idler

  1. Remove idler gear snap rings (see Fig 1).
  2. Remove thrust washer, wave washer, thrust plate and idler gear from shaft.
  3. Remove idler gear needle bearing from shaft.

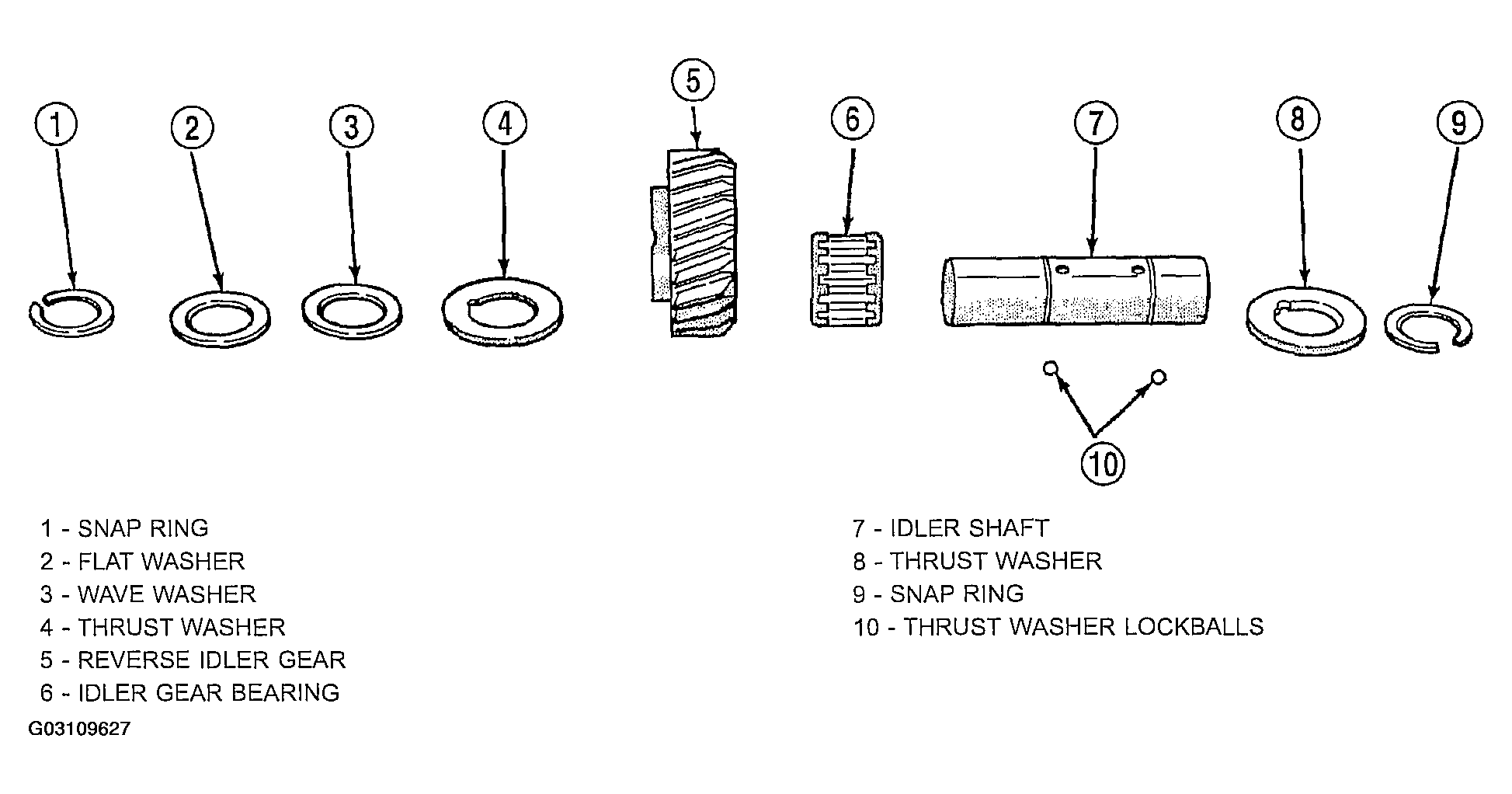

    Fig 1: Reverse Idler Components
    G03109627
