Rear Adapter Housing - 4WD

Locate rear seal dimples (see Fig 1). With slide hammer mounted screw, remove rear seal by inserting screw into one of the seal dimples (see Fig 2).

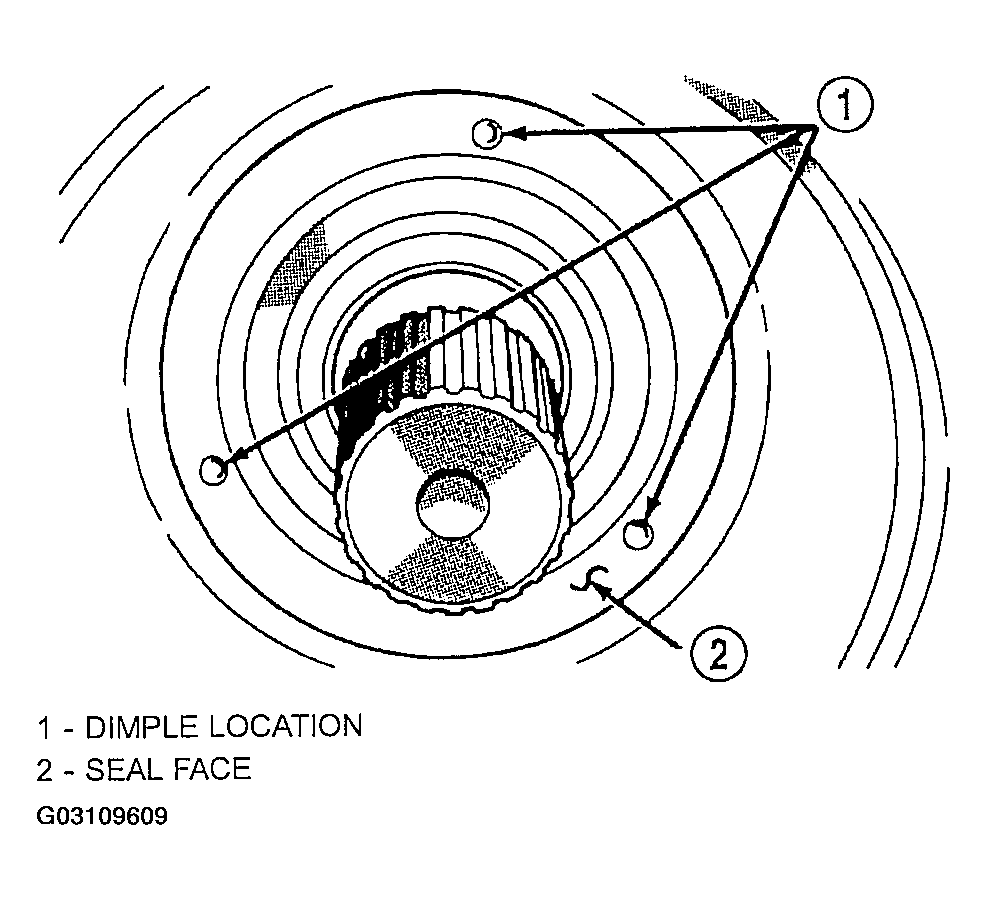

Fig 1: Dimples In Seal Face - 4WD

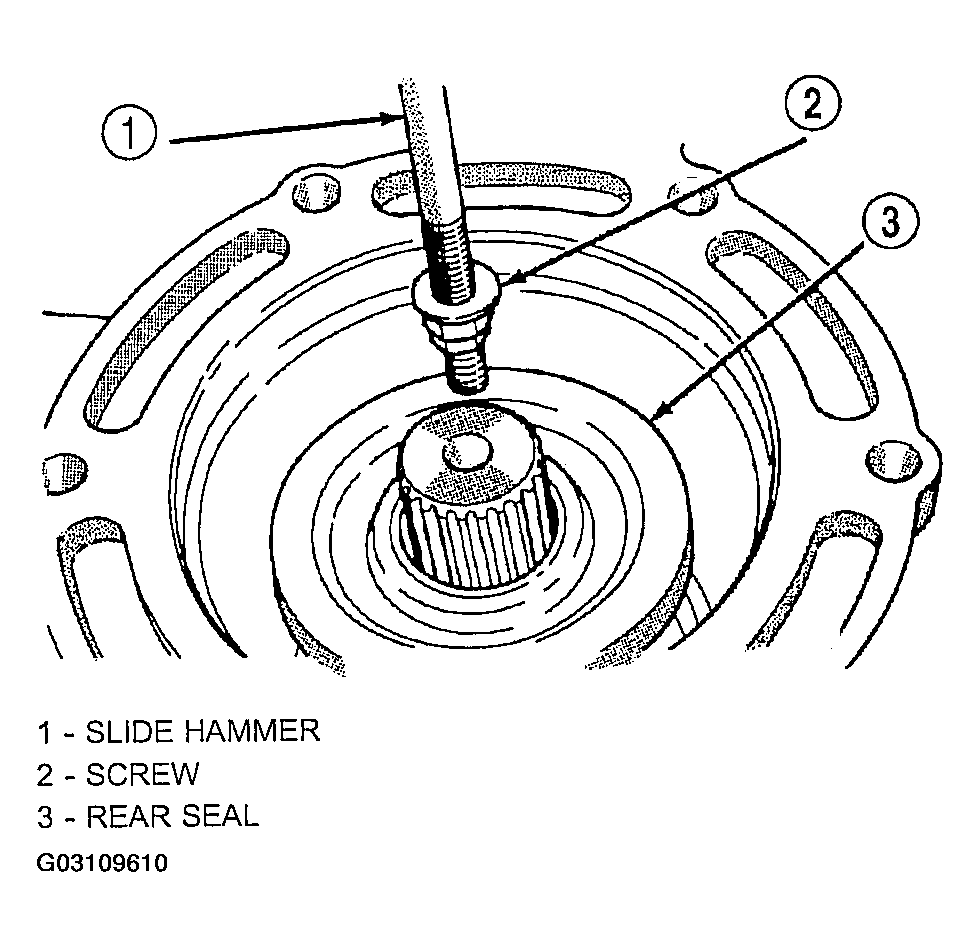

Fig 2: Rear Seal - 4WD
Remove rear bearing snap ring from output shaft with snap ring pliers (see Fig 3).

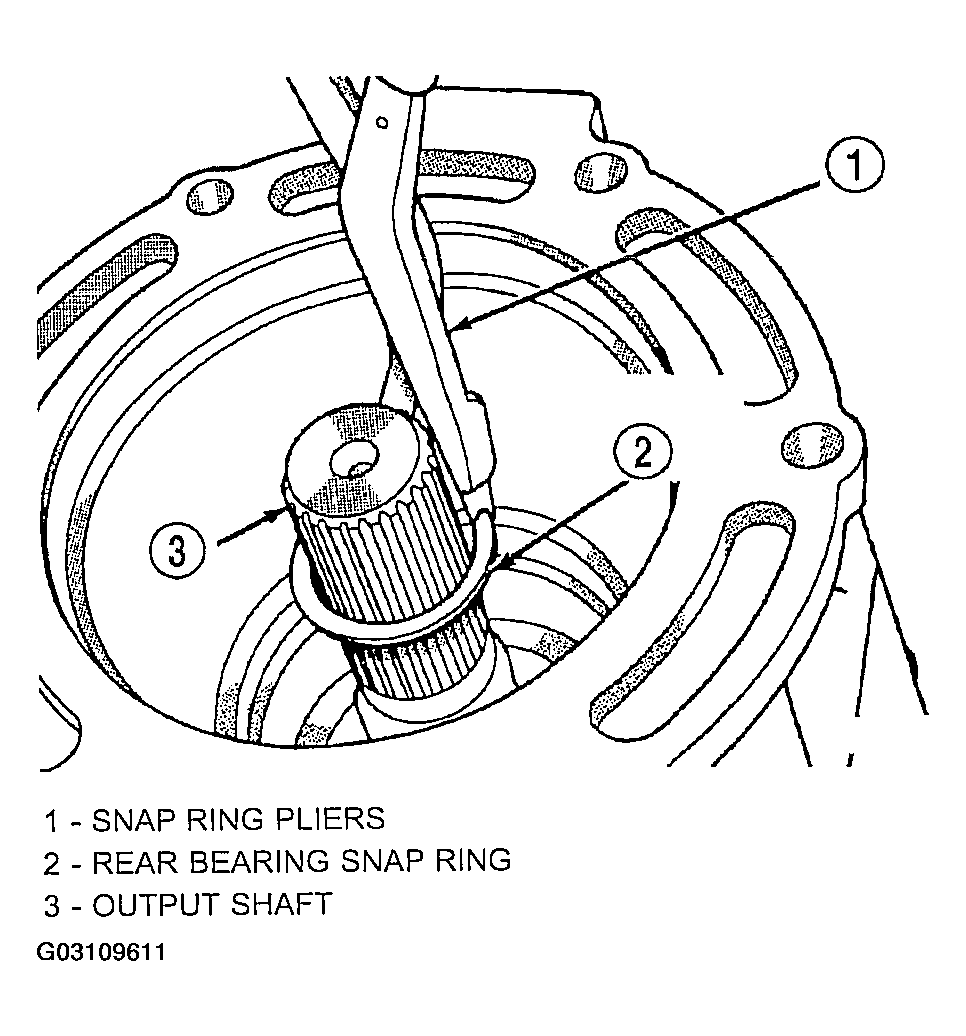

Fig 3: Rear Bearing Snap Ring - 4WD
Lift rear adapter housing upward and off geartrain (see Fig 4).

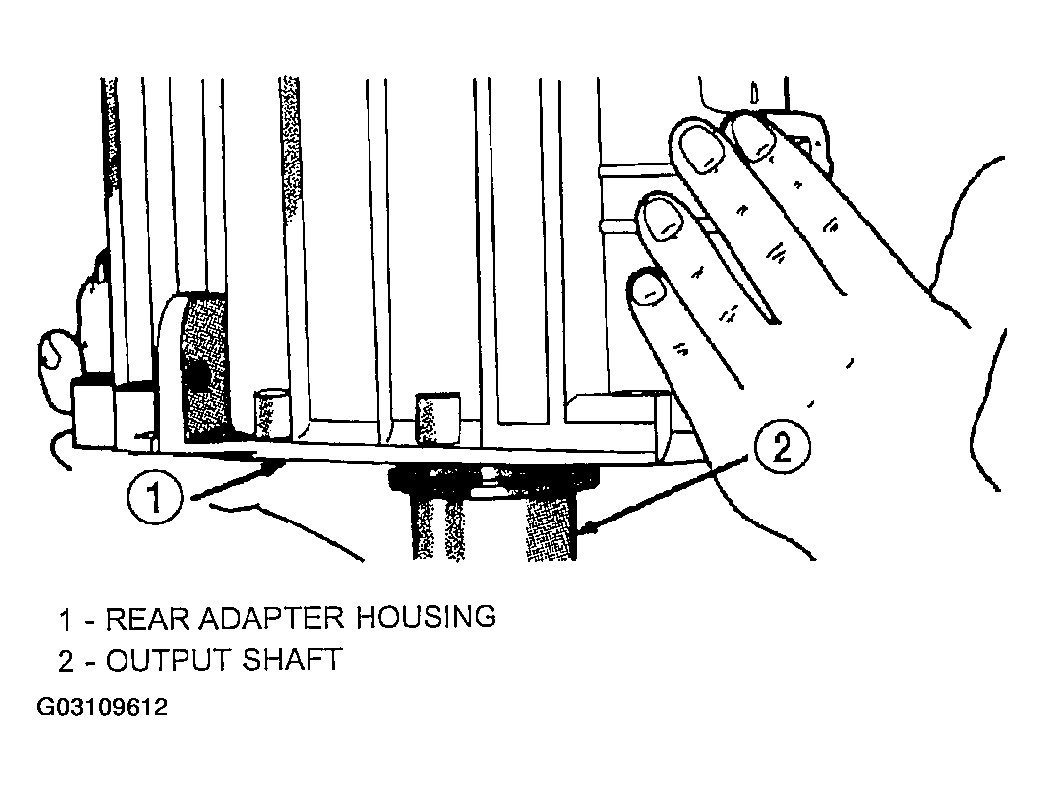

Fig 4: Rear Adapter Housing
Remove bearing retainer bolts and remove rear bearing retainer and rear bearing (see Fig 5). If needed push or tap bearing out of the housing with a hammer.
Examine condition of bearing bore, countershaft rear bearing race and idler shaft notch in rear housing. Replace housing if race, bore or notch are worn or damaged.

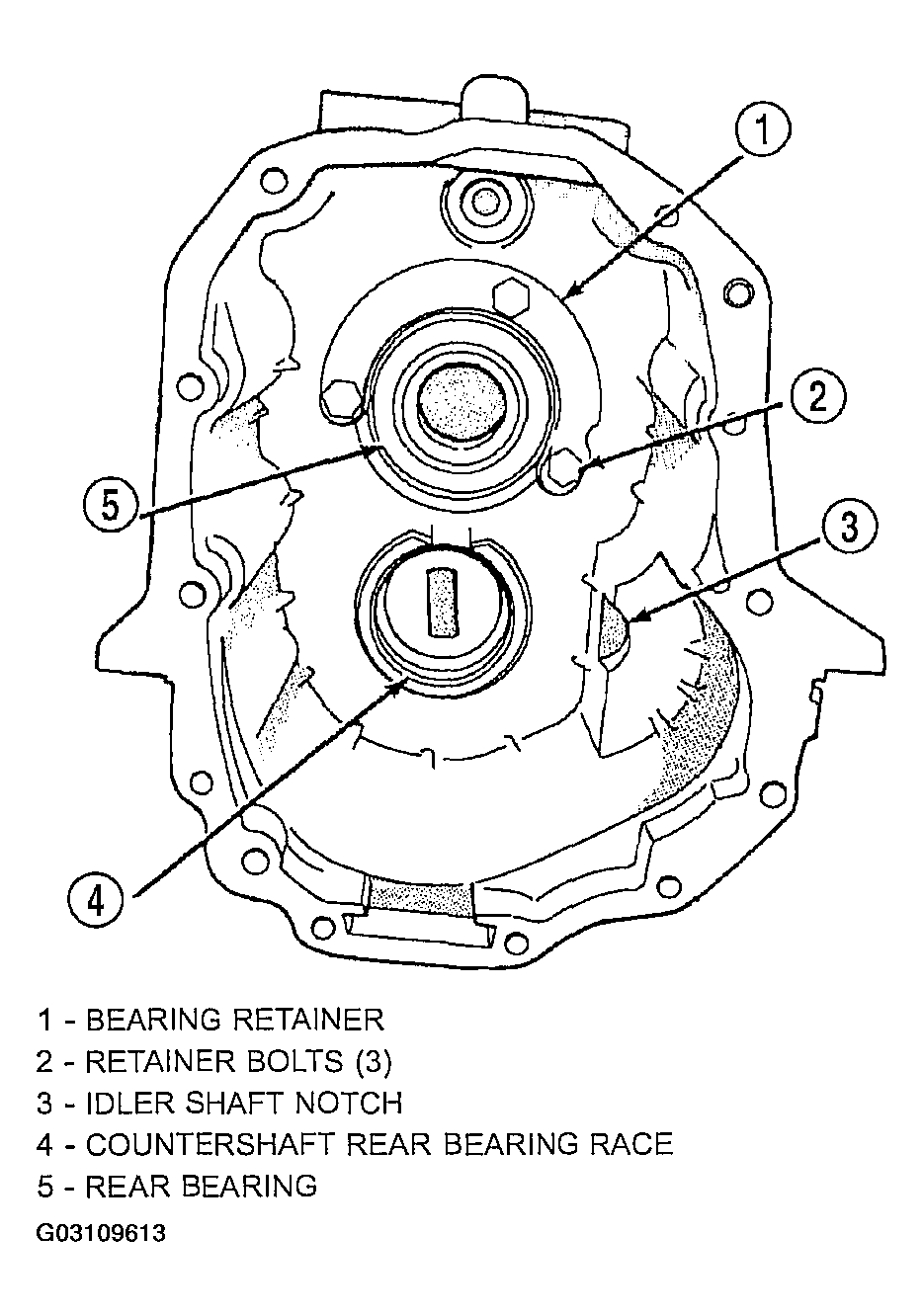

Fig 5: Rear Adapter Housing Components
