Shift Shaft, Shaft Lever And Bushing And Shift Socket

  1. Verify that all synchro sleeves are in Neutral position (centered on hub).
    CAUTION: The transmission synchros must all be in Neutral position for assembly. Otherwise the housings, shift forks and gears can be damaged during installation of the two housings.
  2. Install 3-4 shift fork in synchro sleeve (see Fig 1). Verify that groove in fork arm is aligned with grooves in 1-2 and fifth-reverse fork arms as shown in illustration.

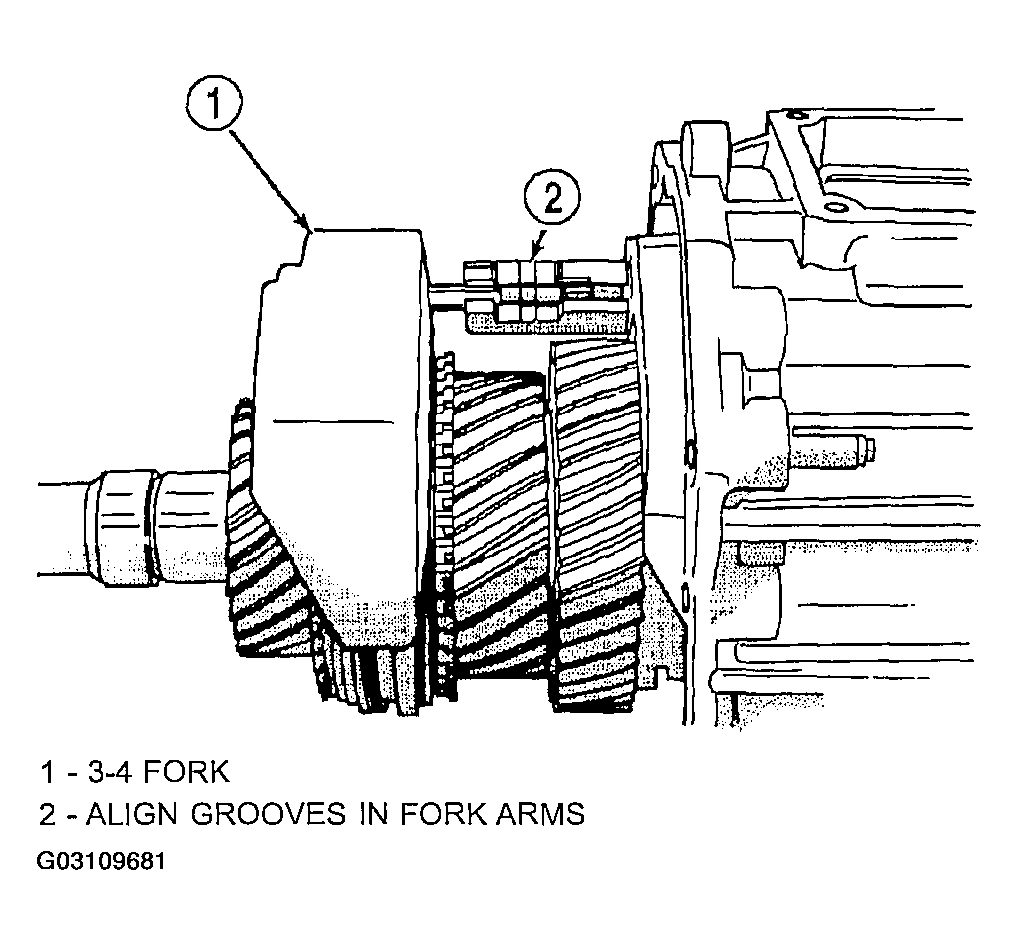

    Fig 1: 3-4 Shift Fork In Synchro Sleeve
    G03109681
  3. Slide the end of shift shaft with shaft detent notches through 3-4 shift fork.
  4. Assemble shift shaft shift lever and bushing (see Fig 2). Be sure slot in bushing is facing up and roll pin hole for lever is aligned with hole in shaft.

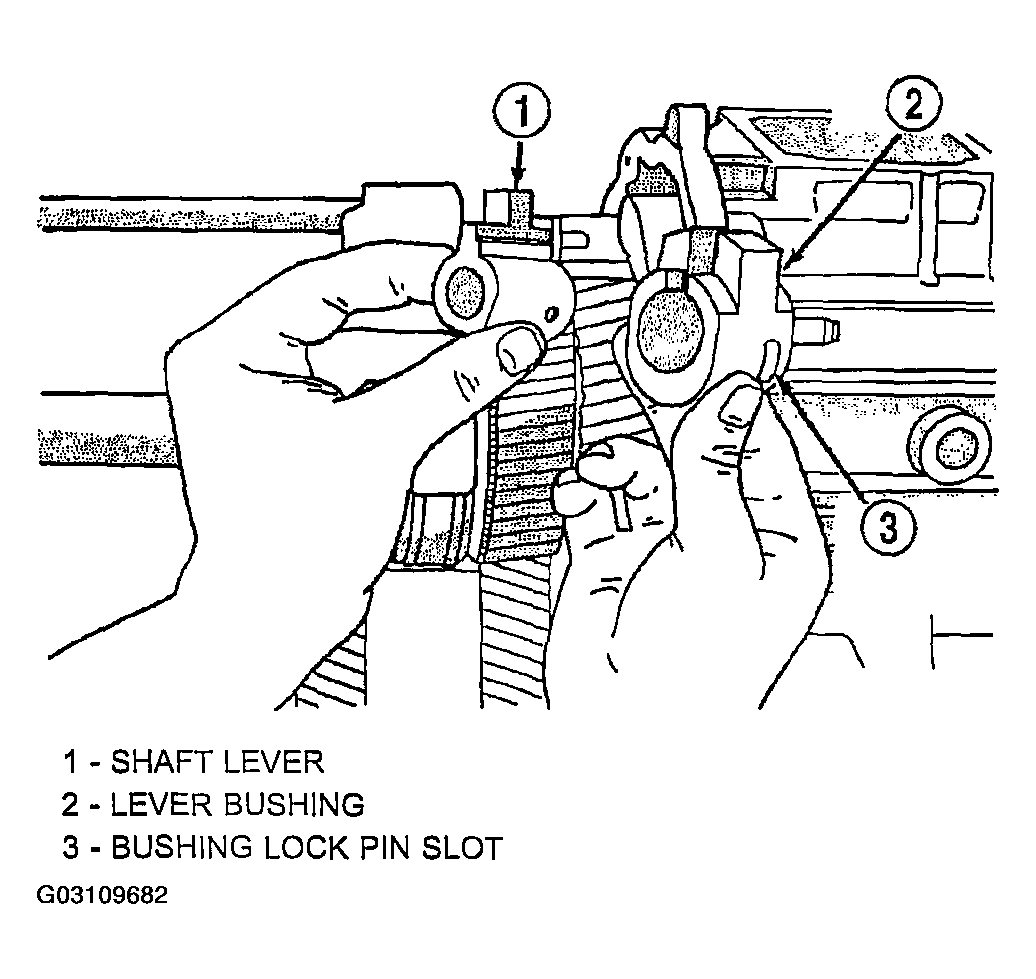

    Fig 2: Assembling Shaft Lever And Bushing
    G03109682
  5. Install assembled lever and bushing on shift shaft (see Fig 3).

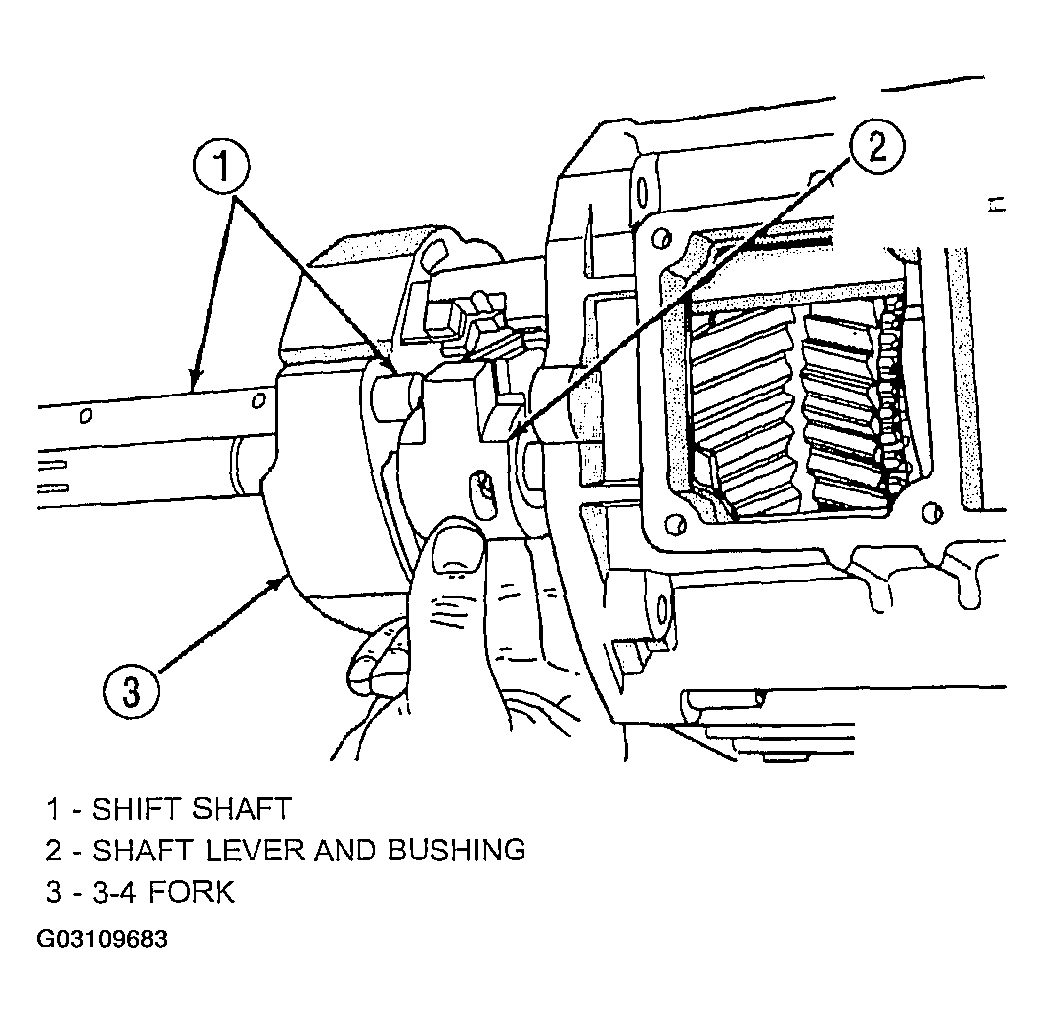

    Fig 3: Installing Lever And Bushing Assembly
    G03109683
  6. Slide shift shaft through 1-2 and fifth-reverse fork and into shift lever opening in rear housing (see Fig 4).

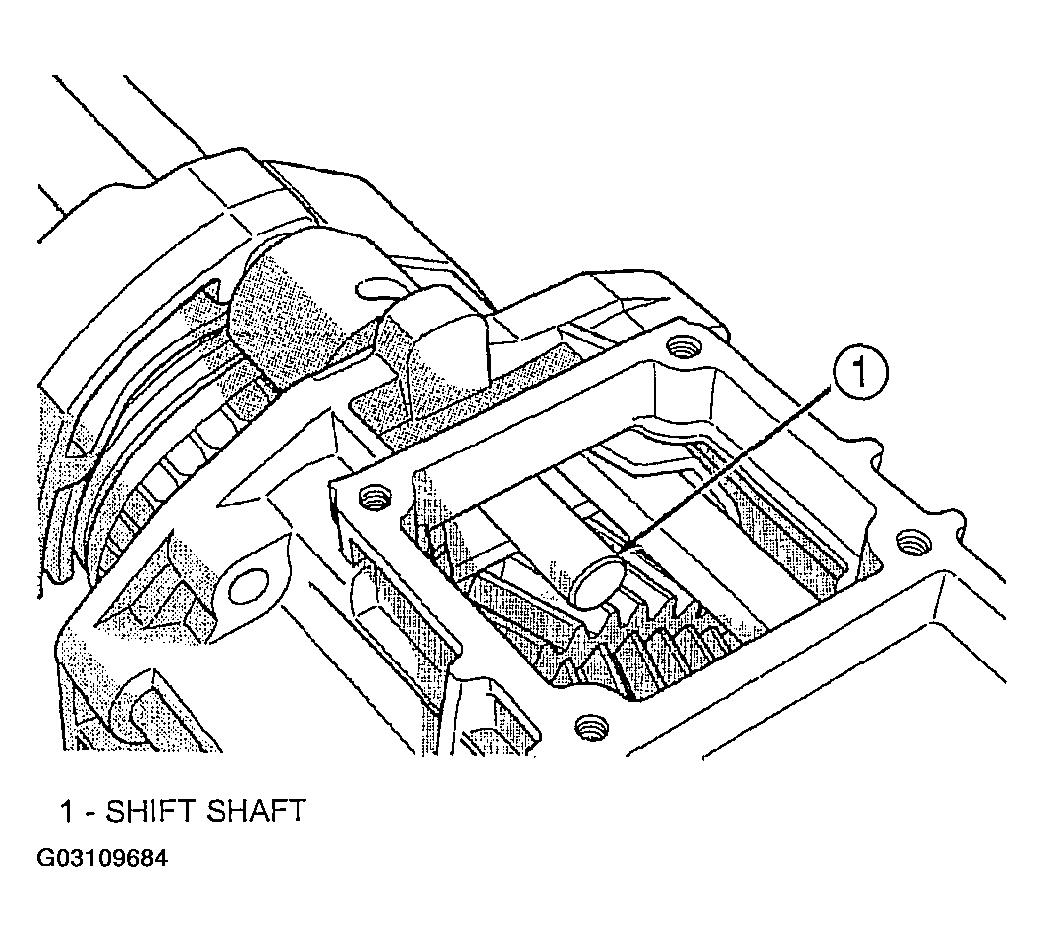

    Fig 4: Shaft In Lever Opening
    G03109684
  7. Align shift socket with shaft and slide shaft through socket and into shift shaft bearing in rear housing (see Fig 5).

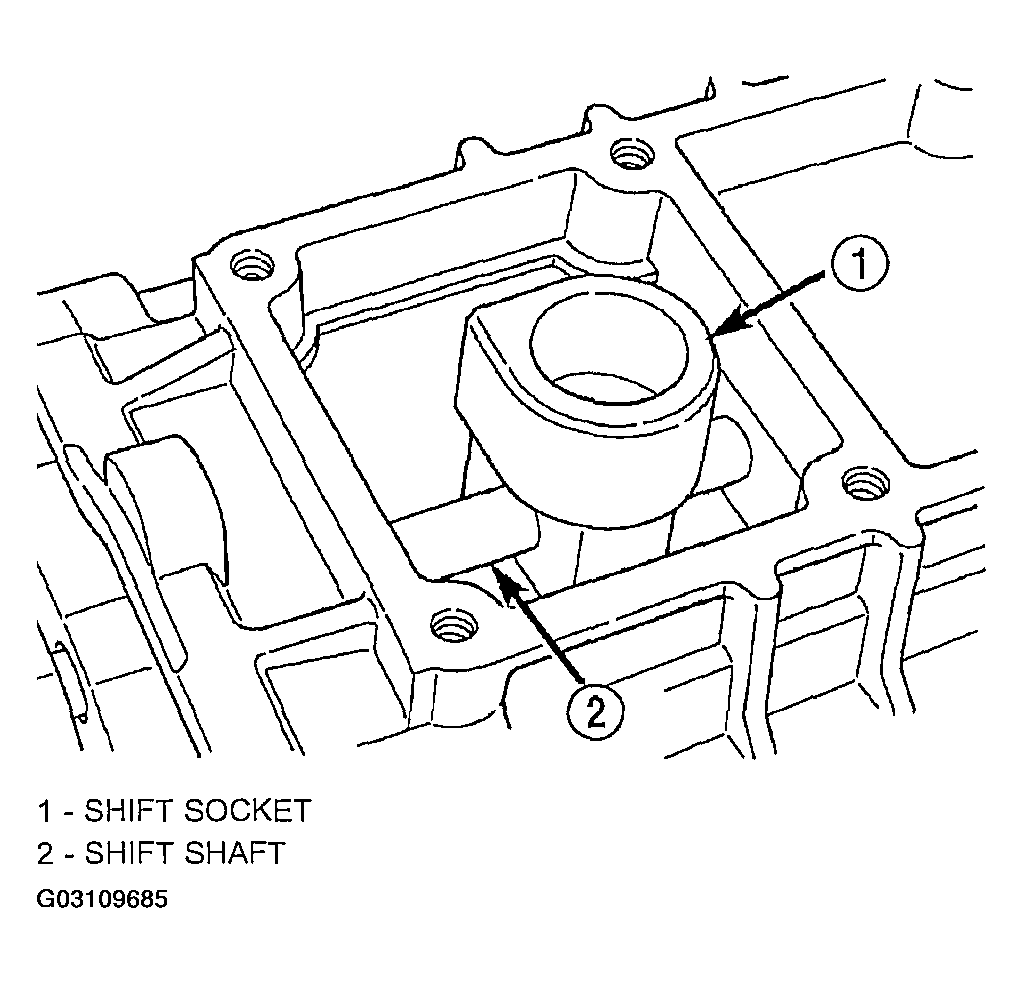

    Fig 5: Shift Socket & Shift Shaft
    G03109685
  8. Rotate shift shaft so detent notches in shaft are facing the TOP of the transmission housing.
    CAUTION: Positioning of the shift shaft detent notch is important. Both of the shaft roll pins can be installed even when the shaft is 180° off. If this occurs, the transmission will have to be disassembled again to correct shaft alignment.
  9. Select correct new roll pin for shift shaft lever (see Fig 6). Shaft lever roll pin is approximately 22 mm (7/8 in.) long. Shift socket roll pin is approximately 33 mm (1-1/4 in.) long.
    Fig 6: Roll Pins
    G03109686
  10. Align roll pin holes in shift shaft, lever and bushing. Then start roll pin into shaft lever by hand (see Fig 7).

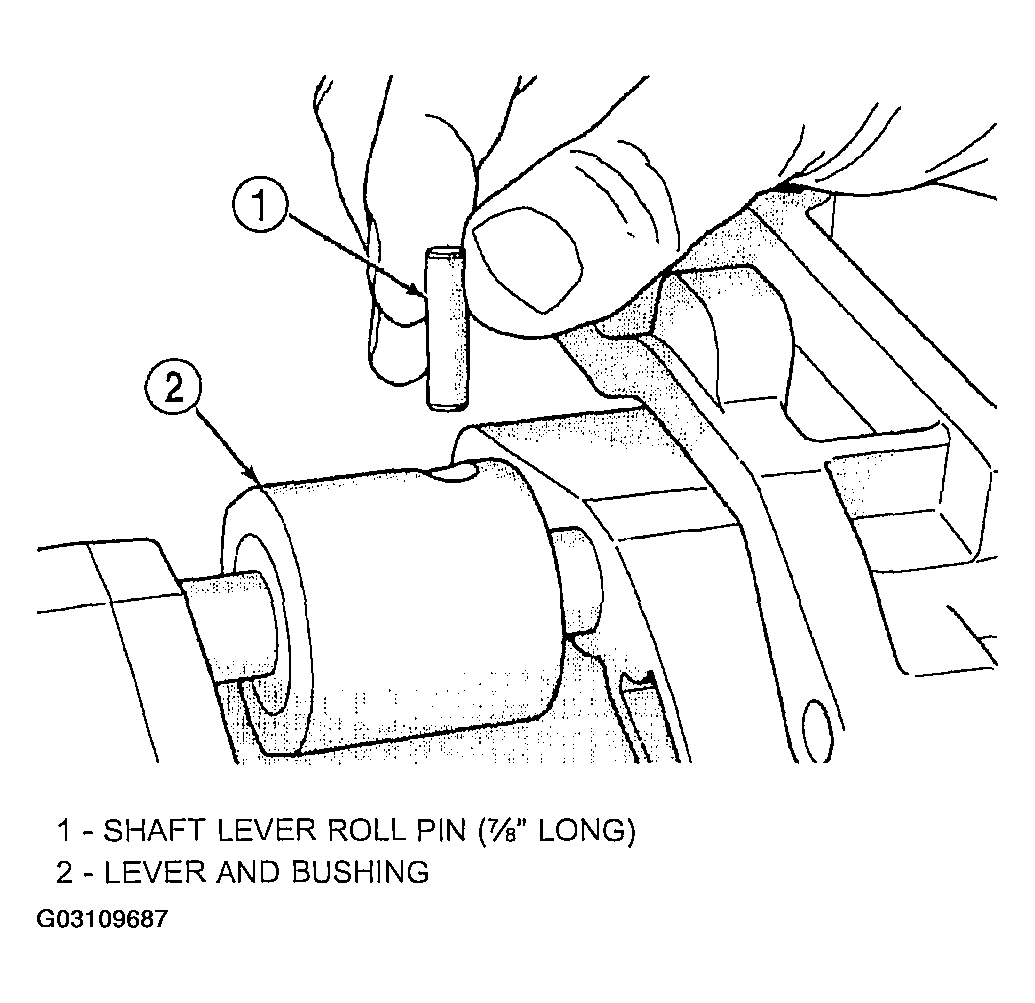

    Fig 7: Roll Pin In Shift Socket
    G03109687
  11. Seat shaft lever roll pin with pin punch (see Fig 8).
    CAUTION: The shaft lever roll pin must be flush with the surface of the lever. The lever bushing will bind on the roll pin if the pin is not seated flush.
  12. Verify that lock pin slot in lever bushing is positioned as shown (see Fig 8).

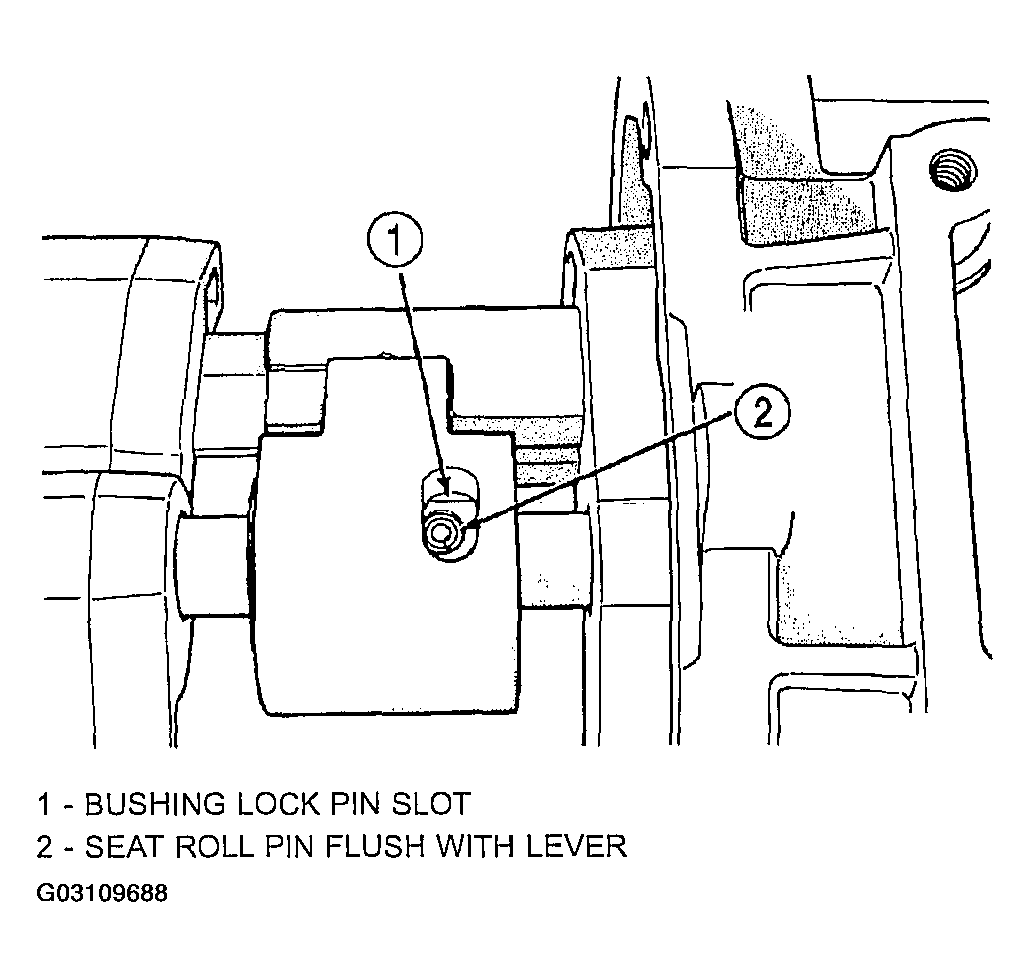

    Fig 8: Shift Shaft Lever Roll Pin
    G03109688
  13. Align roll pin holes in shift socket and shift shaft. Then start roll pin into shift shaft by hand (see Fig 9).

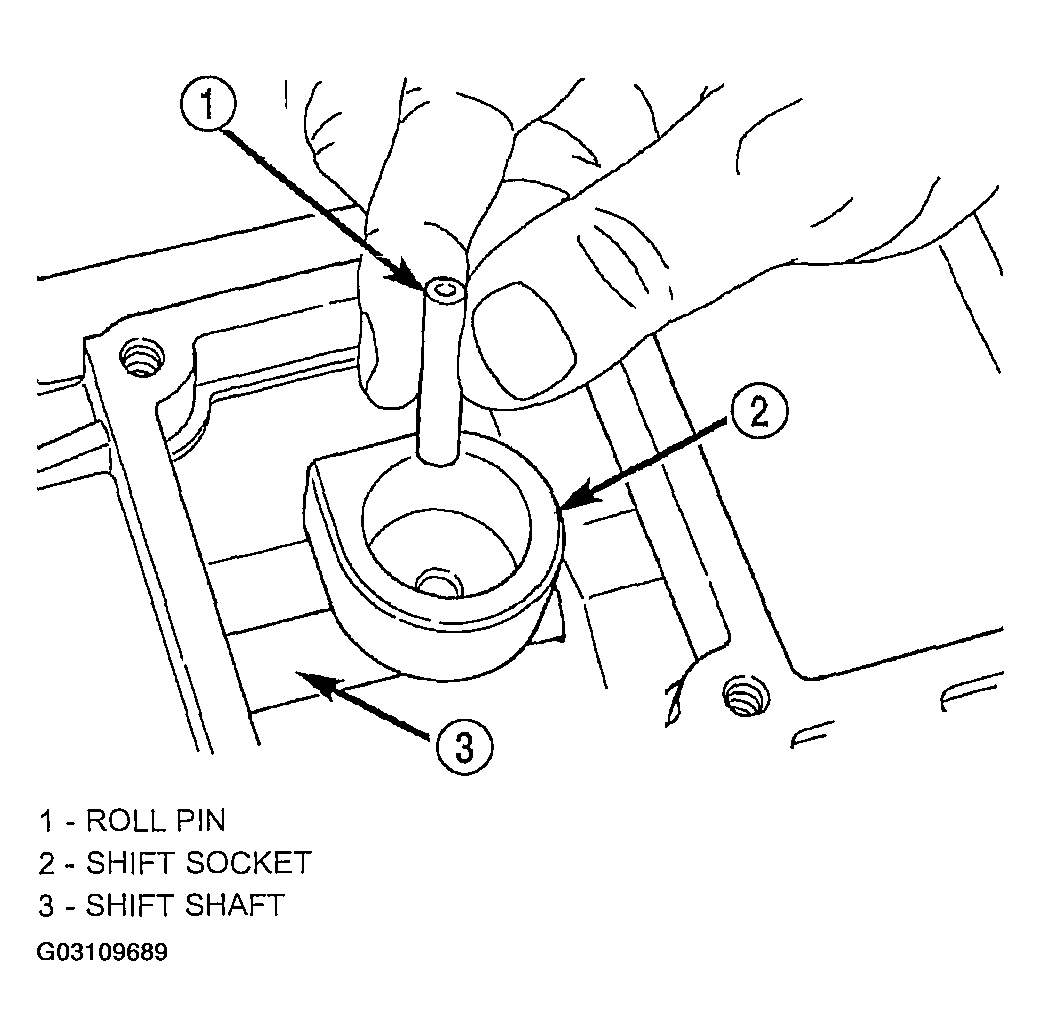

    Fig 9: Roll Pin In Shift Socket
    G03109689
  14. Seat roll pin in shift socket with pin punch. Roll pin must be flush with socket (see Fig 10).
  15. Verify that notches in shift fork arms are aligned. Realign arms if necessary.

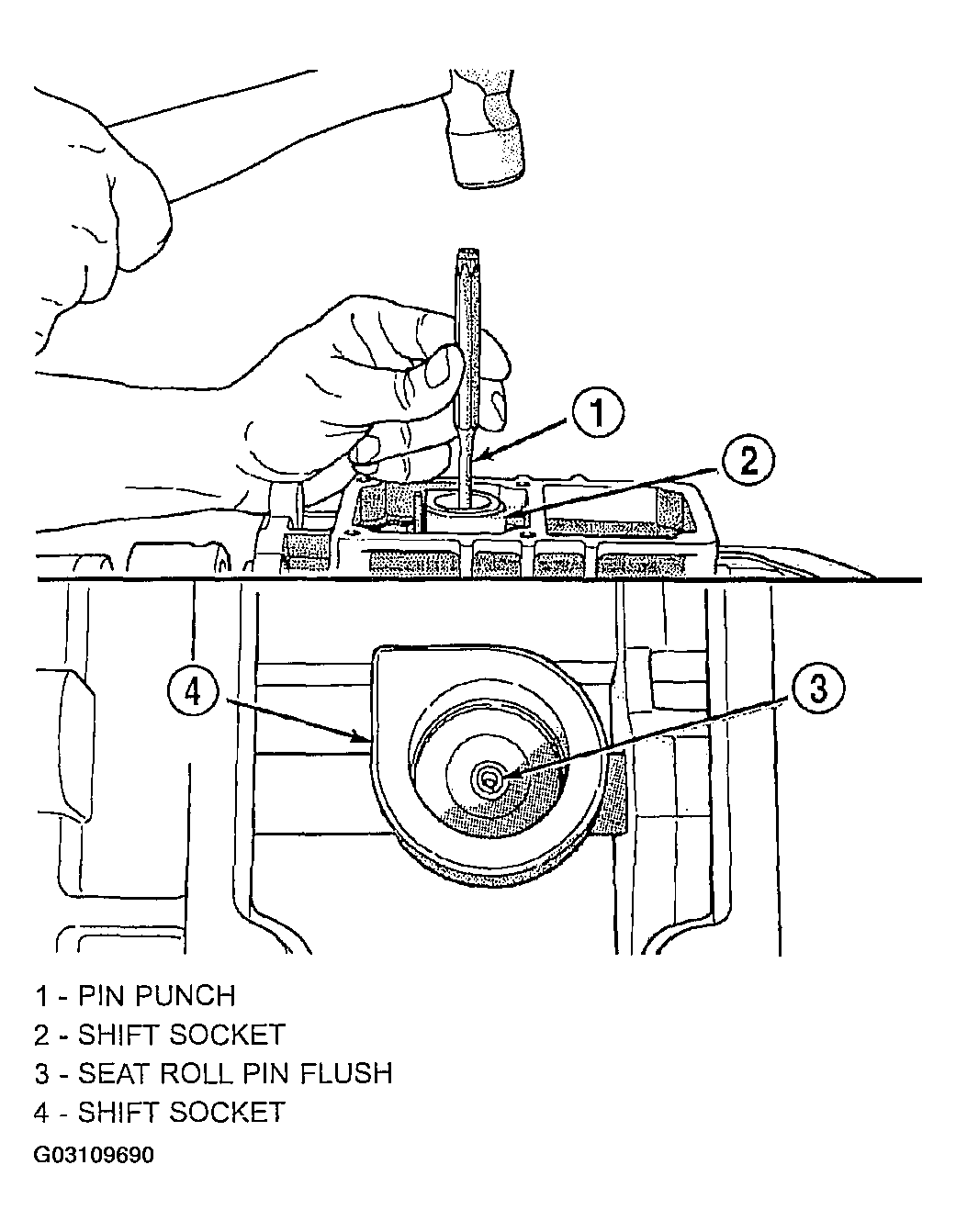

    Fig 10: Seat Roll Pin In Shift Socket
    G03109690
