Removal - Yoke Bushing

  1. Raise and support vehicle.
  2. Mark reference lines on the propeller shaft and remove shaft.
  3. Remove housing yoke seal.
  4. Insert Remover 6957 into rear housing and tighten tool to bushing and remove bushing (see Figure).

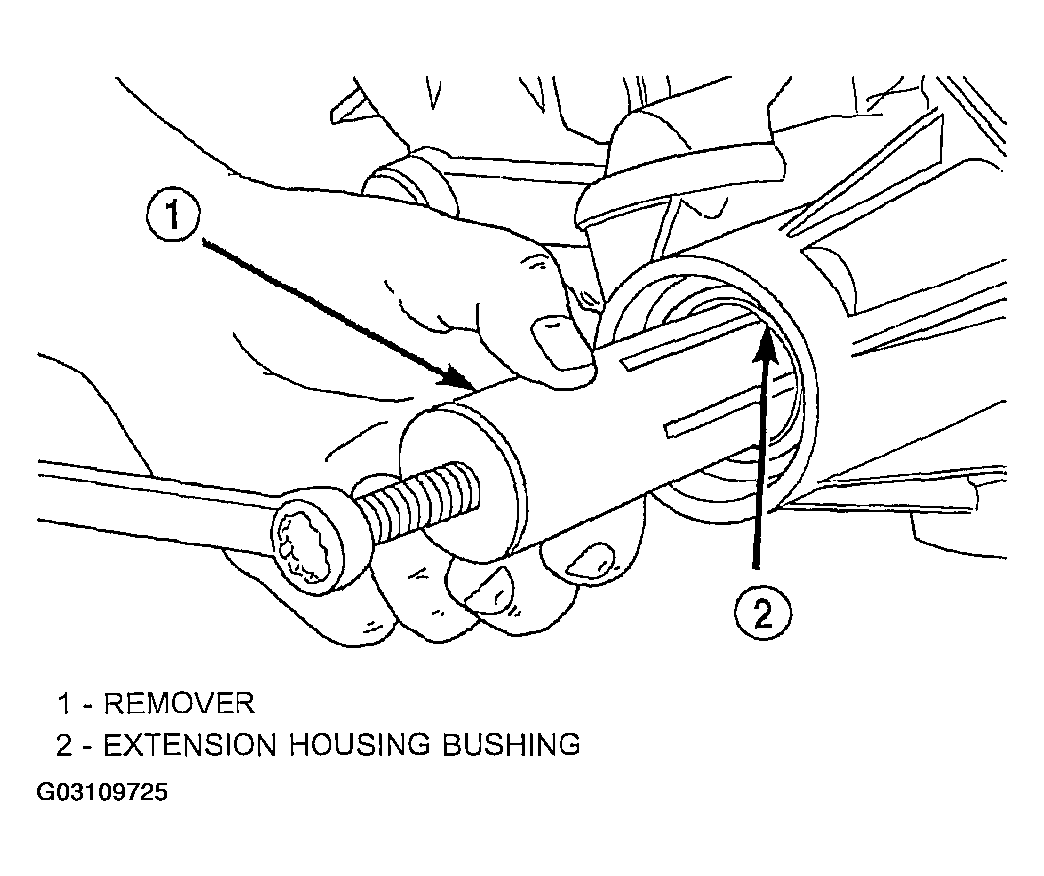

    Fig 1: Bushing Removal - Typical
    G03109725
