Removal - Yoke Seal 2WD

  1. Raise and support vehicle.
  2. Mark propeller shaft and axle yoke for alignment reference.
  3. Disconnect and remove propeller shaft.
  4. Remove old seal with Remover C-3985-B (see Figure and Fig 1) from transmission housing.

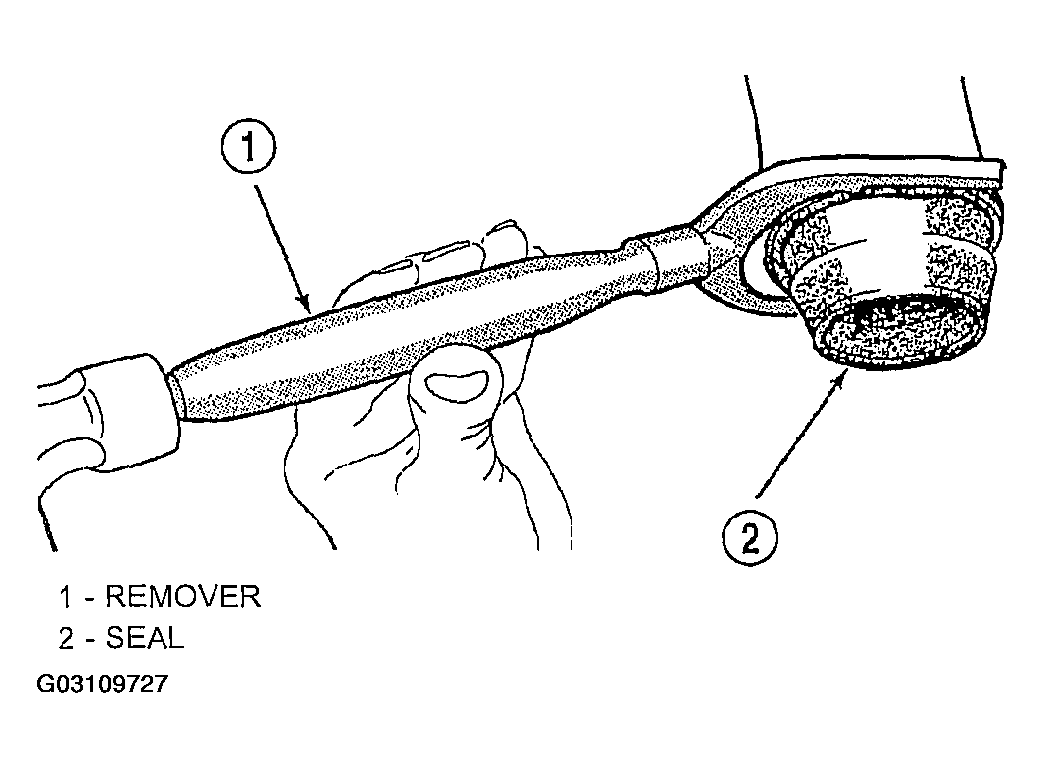

    Fig 1: Removing Transmission Housing Yoke Seal
    G03109727
