Installation - Yoke Seal 2WD
- Place seal in position on transmission housing.

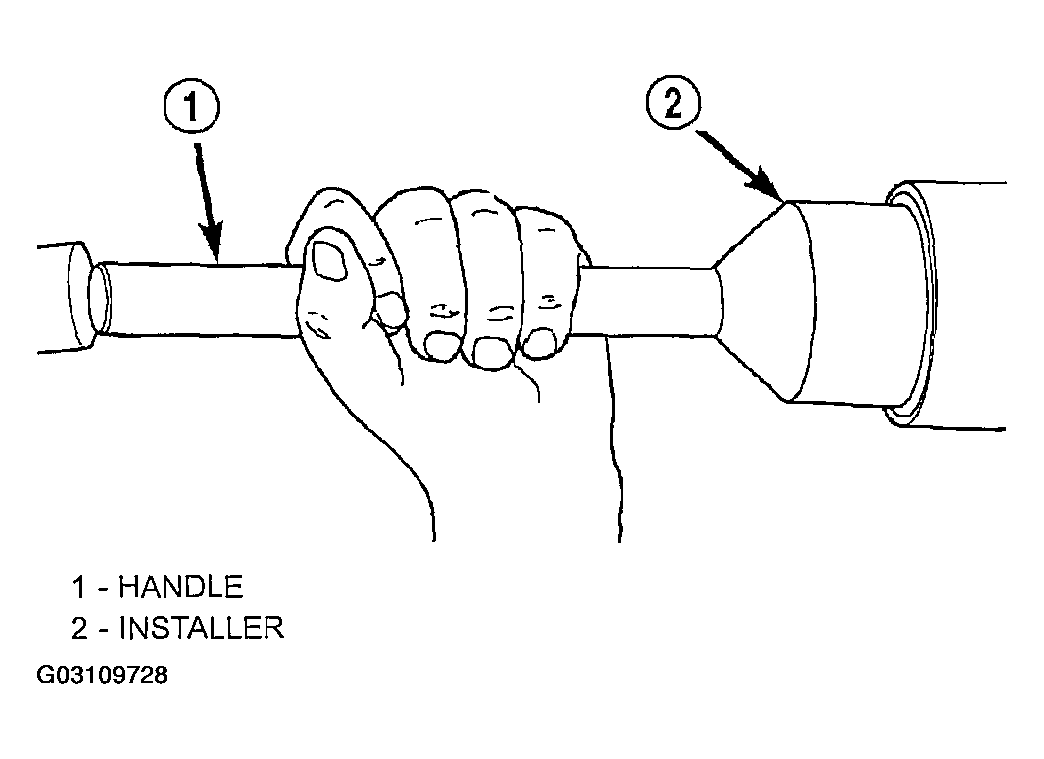

- Drive new seal into transmission housing with Installer C-3972-A and Handle C-4171 (see Figure and Fig 1).
- Carefully guide propeller shaft slip yoke into housing and onto output shaft splines.
- Install propeller shaft with reference marks aligned.
- Remove support and lower vehicle.
- Check transmission fluid level.
