Upper Suspension Arm: Installation

  1. Position the upper suspension arm in the axle bracket and frame rail bracket.
  2. Install the bolts and finger tighten the nuts.
  3. Install the parking brake cable/bracket and ABS wiring bracket on the arm if equipped.
  4. Remove the supports and lower the vehicle.
  5. Tighten the upper suspension arm frame rail bracket bolt to specification. See TORQUE SPECIFICATIONS  .
  6. Tighten the upper suspension arm axle bracket nut to specification. See TORQUE SPECIFICATIONS  .

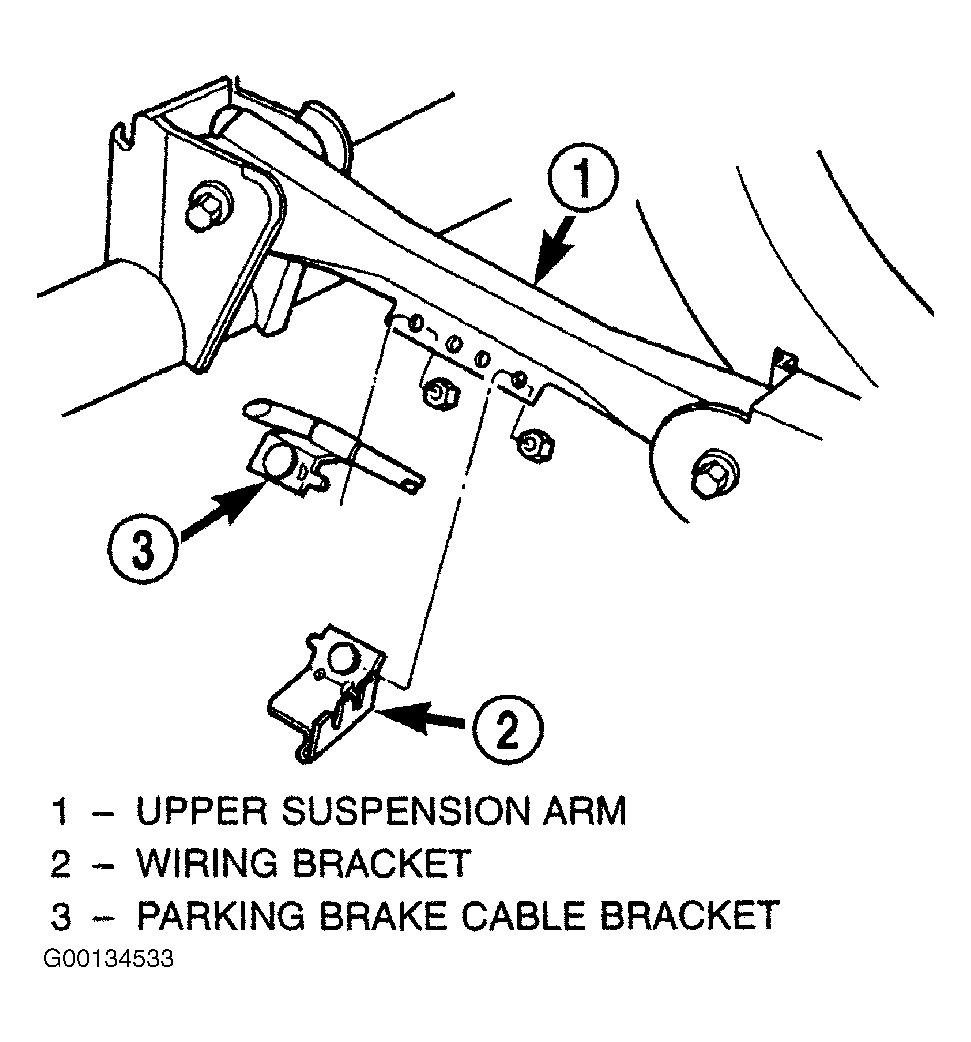

Fig 1: Removing/Installing Upper Rear Suspension Arm
G00134533Courtesy of CHRYSLER CORP.
