Lower Suspension Arm: Removal

  1. Raise and support the vehicle.
  2. Remove the lower suspension arm nut and bolt at the axle bracket. See Fig 1 .
  3. Remove the nut and bolt at the frame rail mount. Remove the lower suspension arm.

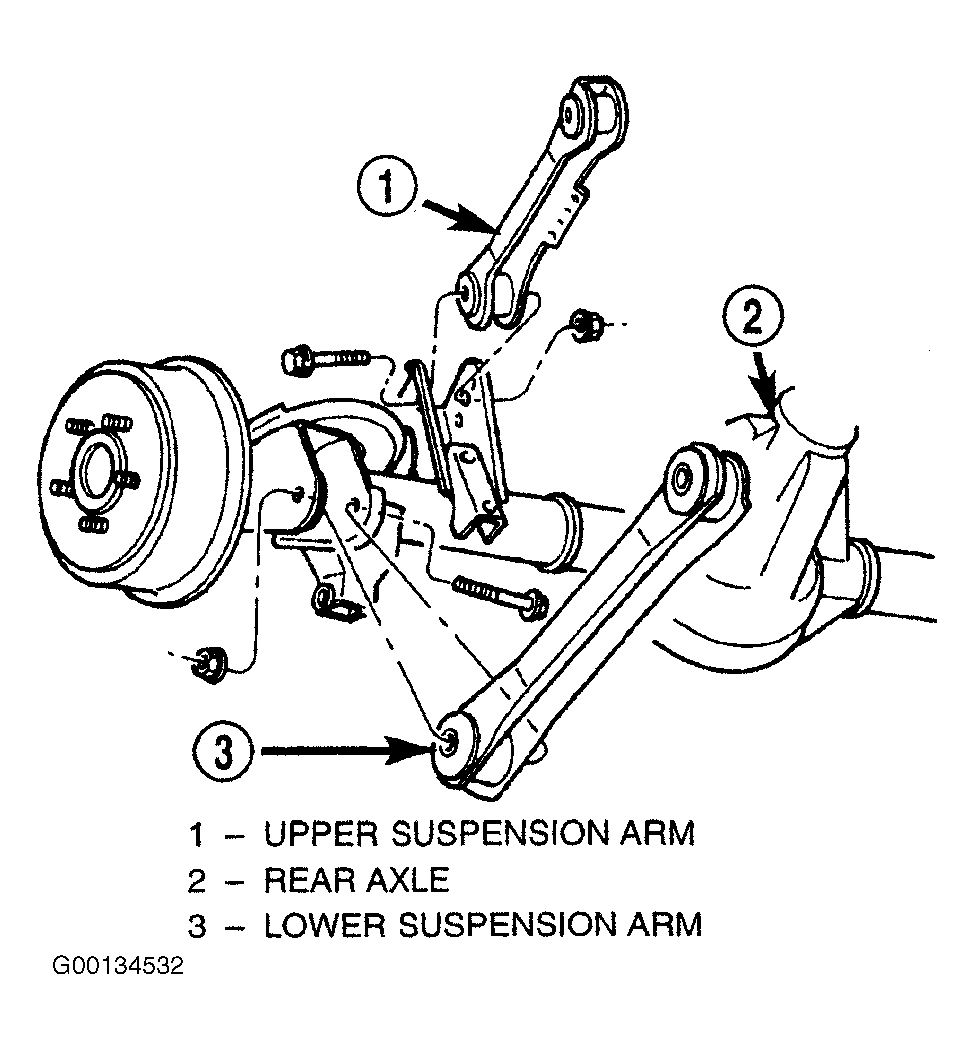

Fig 1: Removing/Installing Lower Suspension Arm
G00134532Courtesy of CHRYSLER CORP.
