Removal & Installation (Grand Cherokee)

NOTE: For removal and installation procedures, see Fig 1 and Fig 2 . Figures referenced in the removal and installation procedures are contained in the illustrations.

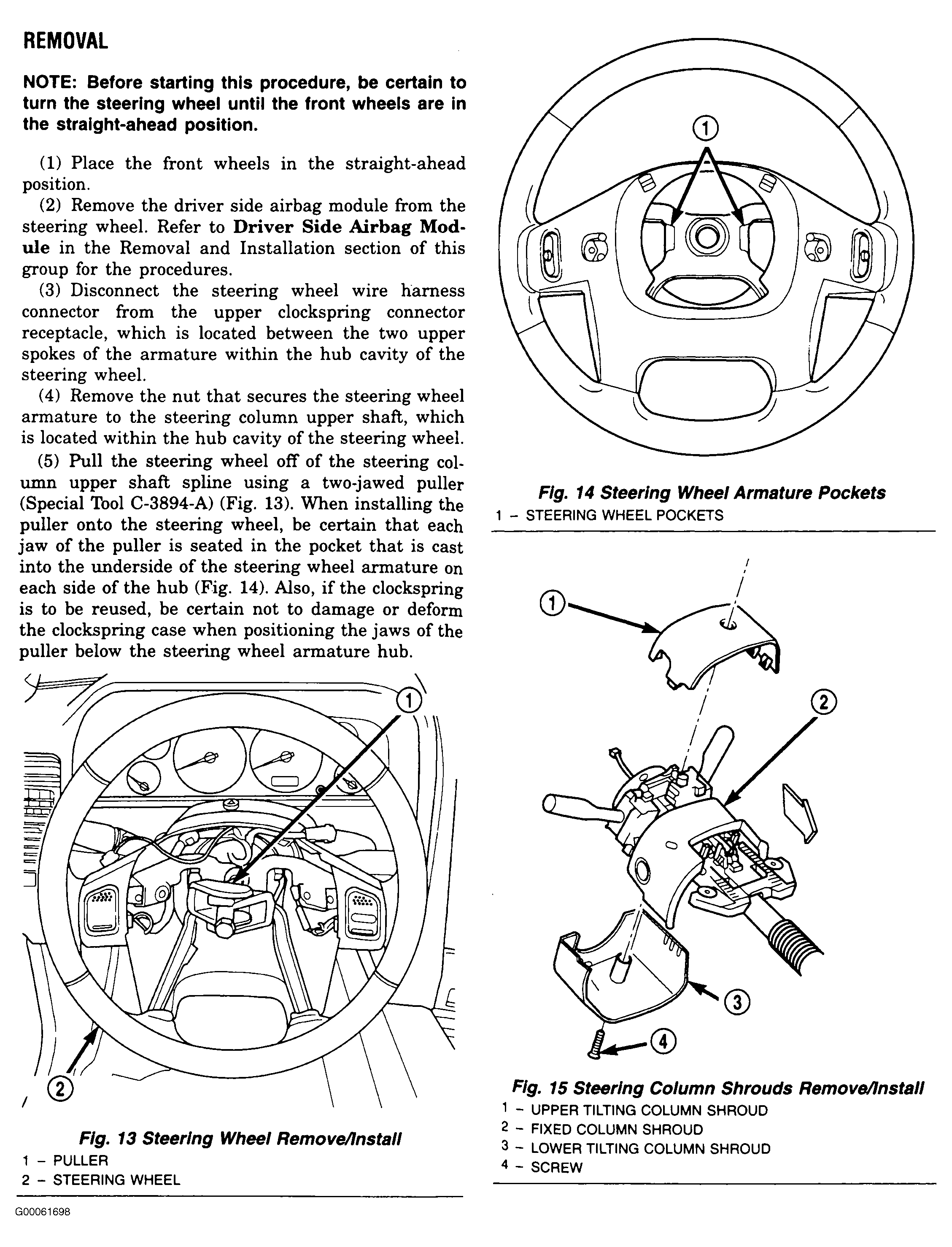

Fig 1: Removing & Installing Steering Wheel & Clockspring - Grand Cherokee (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

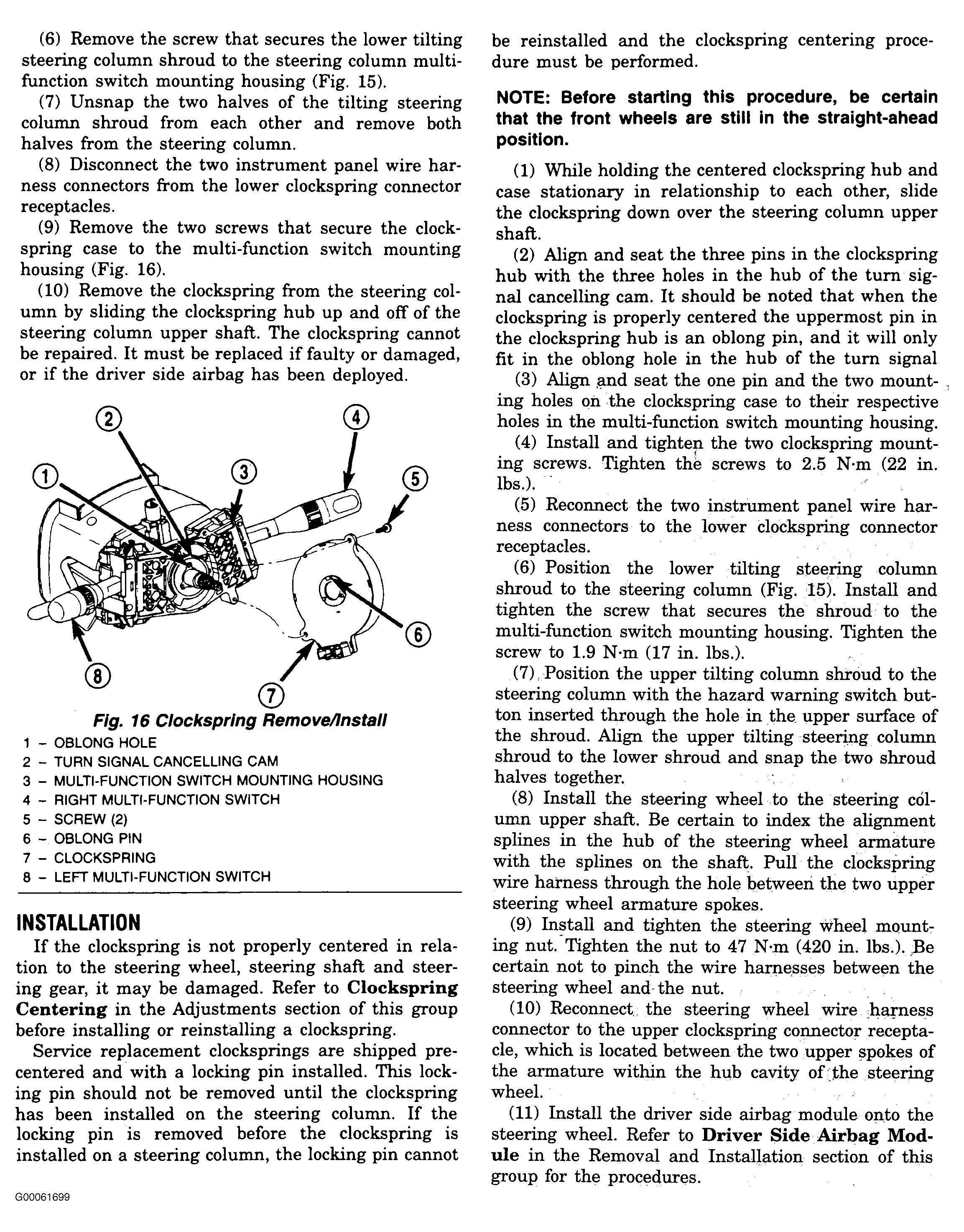

Fig 2: Removing & Installing Steering Wheel & Clockspring - Grand Cherokee (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
