Removal & Installation (Cherokee & Wrangler)

  1. Disconnect negative battery cable. Remove lower steering column cover and shroud. Remove floor console and related trim. Pull carpet back for access to gear selector lever bellcrank.
  2. Remove tie strap from park-lock cable, near solenoid closest to steering column. Disengage wire connector from solenoid. With ignition removed or in unlocked position, disengage lock tab holding park-lock cable end to steering column.

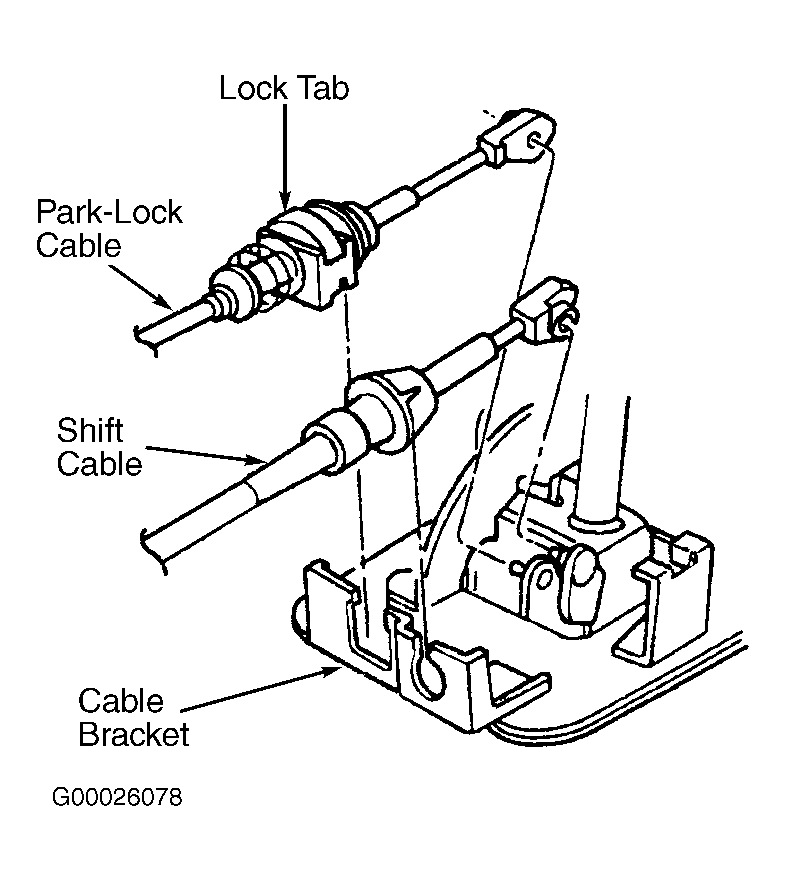

  3. Disconnect park-lock cable eyelet from bellcrank. Disconnect and remove park-lock cable from shift bracket. See FigureFigure . To install, reverse removal procedure. Before completing installation, check park-lock cable adjustment to ensure proper operation. See PARK-LOCK CABLE  under ADJUSTMENTS.
