Double CARDAN Universal Joint: Disassembly

  1. Scribe or paint marks on yokes and drive shaft for reassembly reference. Remove bearing cap retainer clips. Using sockets and vise as a press, remove bearing caps and front spider from link yoke. Remove drive shaft yoke from link yoke. See Fig 1 .
  2. Remove bearing caps and rear spider from link yoke. Remove rear spider and socket yoke from link yoke. Remove bearing caps retaining front spider in drive shaft yoke. Remove front spider from drive shaft yoke.

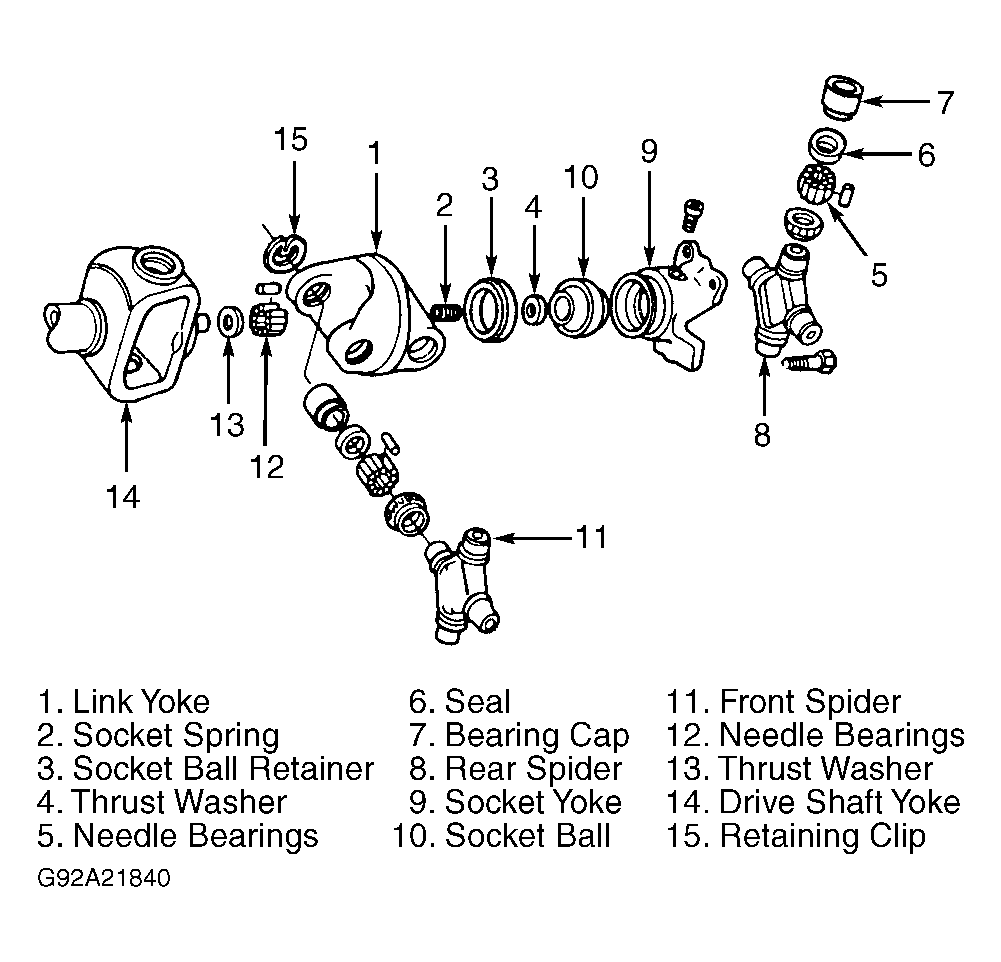

Fig 1: Exploded View Of Double Cardan Universal Joint
G92A21840Courtesy of CHRYSLER CORP.
