Removal & Installation

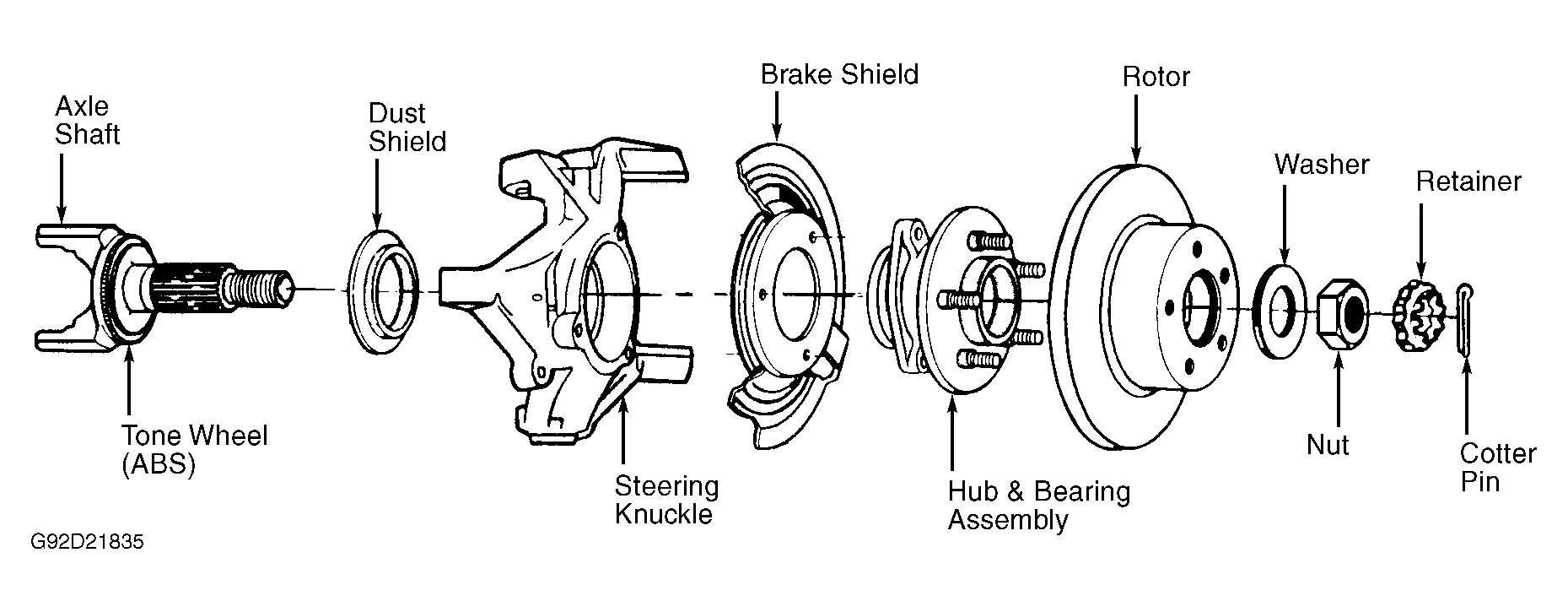

Raise and support vehicle. Remove front wheels. Remove caliper. See FRONT BRAKE CALIPER & BRAKE PADS . Attach caliper to underbody with wire. Mark rotor and hub for reassembly reference. Remove push nuts securing rotor to hub. Remove rotor from hub. To install, align reference marks and reverse removal procedure. See Fig 1.
