30RH & 32RH & 36RH & 37RH Automatic Transmission - Hydraulic Diagrams

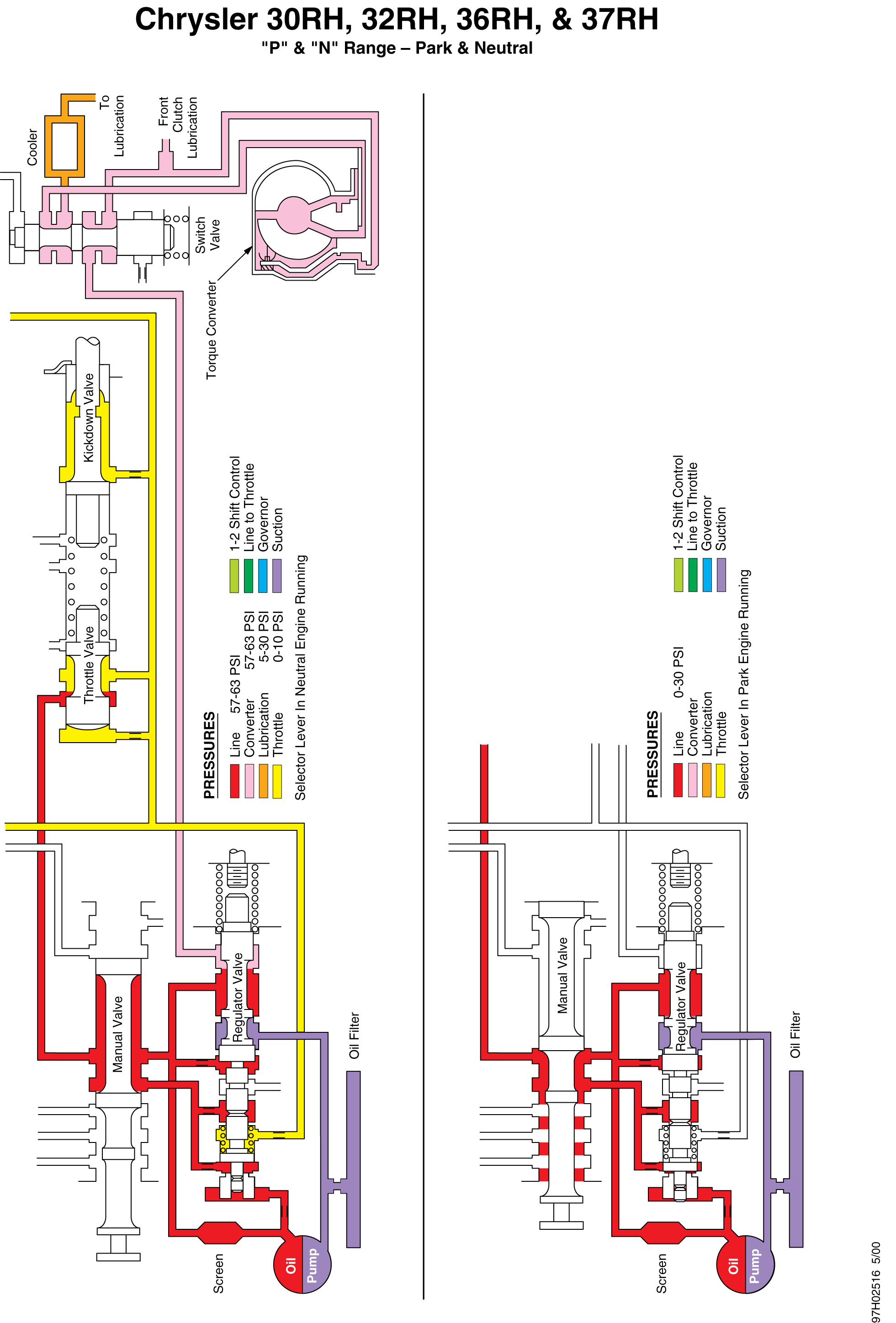

Fig 1: "N" & P" Range - Neutral & Park

Courtesy of DAIMLERCHRYSLER CORP.

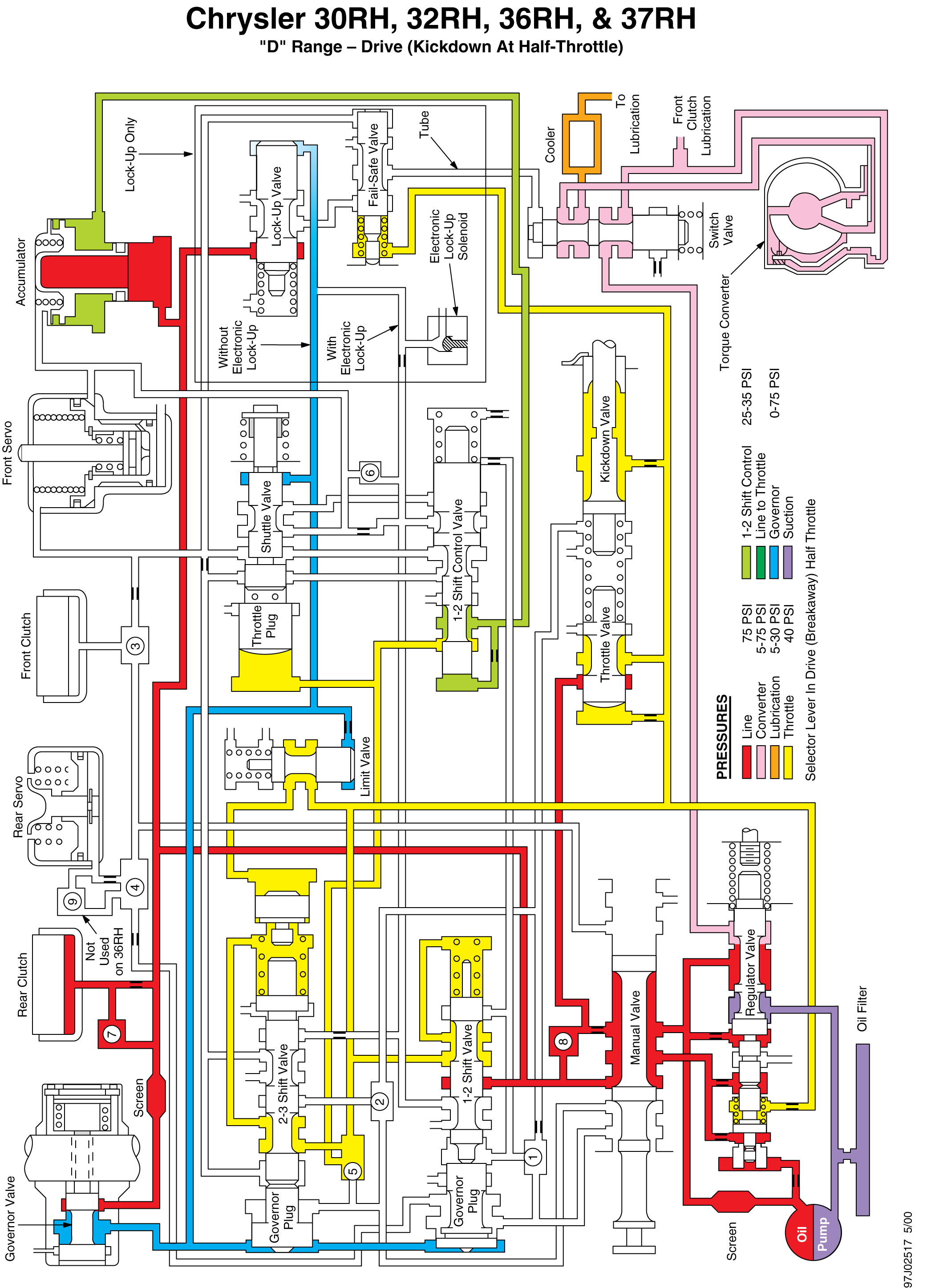

Fig 2: "D" Range - Drive (Kickdown At Half-Throttle)

Courtesy of DAIMLERCHRYSLER CORP.

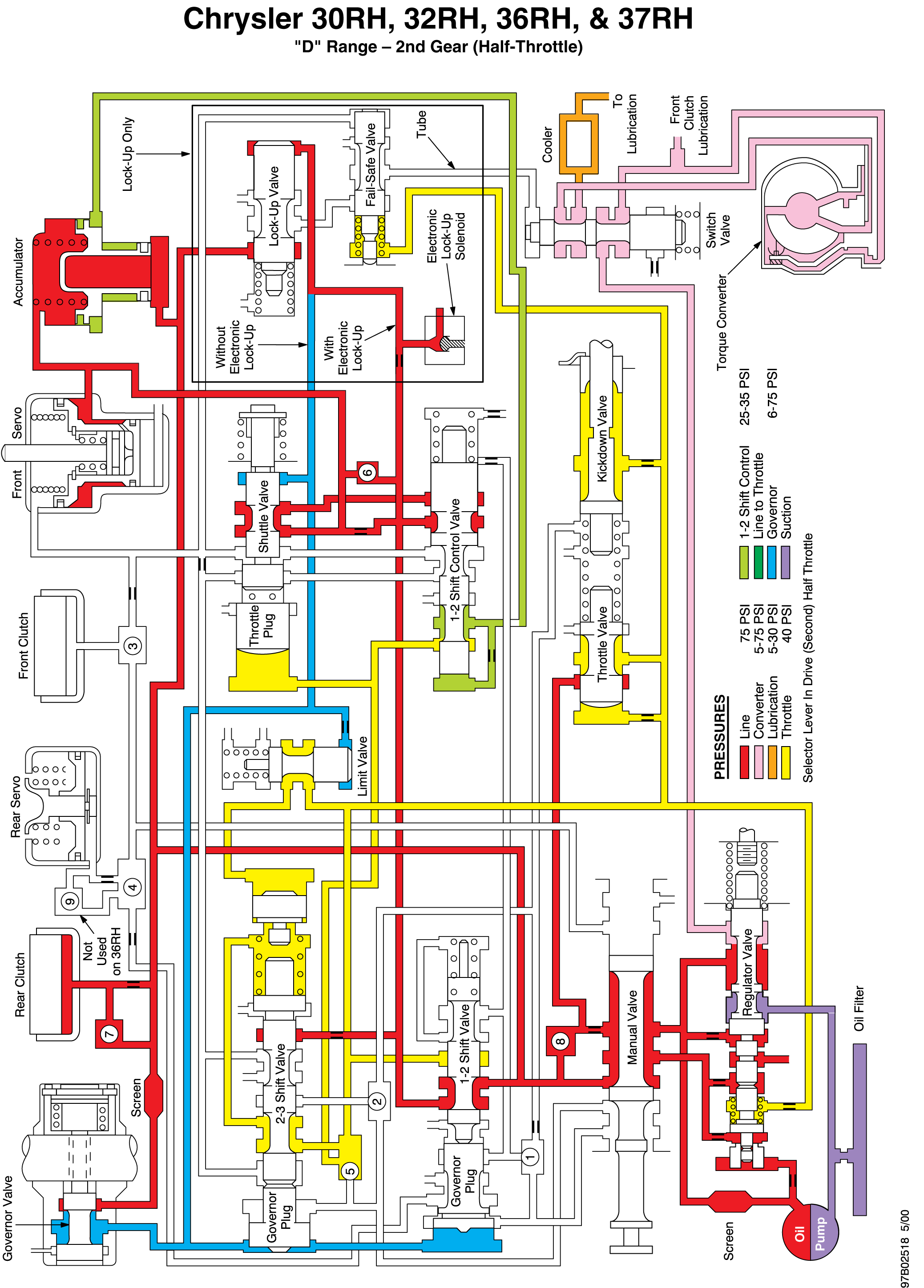

Fig 3: "D" Range - 2nd Gear (Half-Throttle)

Courtesy of DAIMLERCHRYSLER CORP.

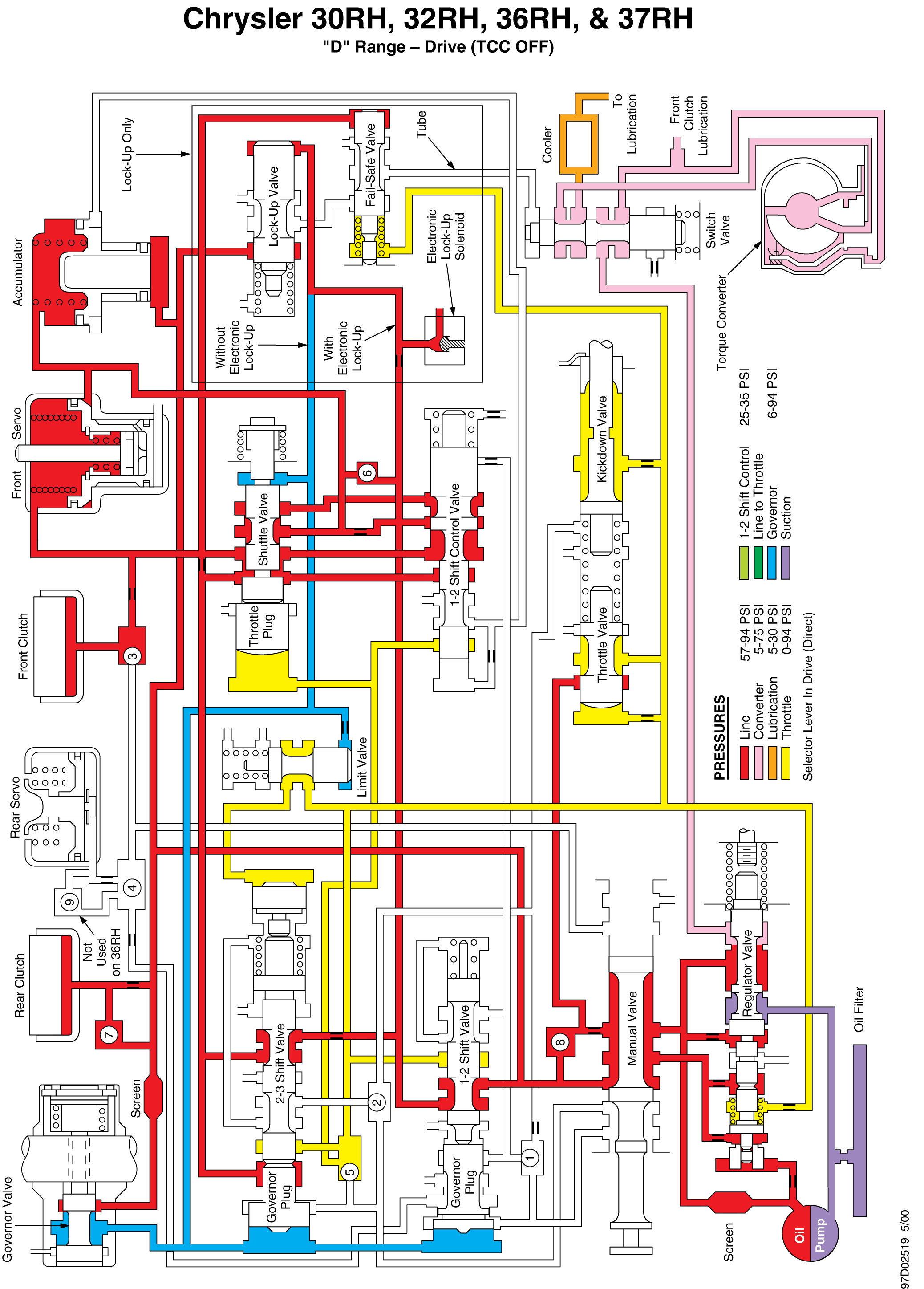

Fig 4: "D" Range - Drive (TCC OFF)

Courtesy of DAIMLERCHRYSLER CORP.

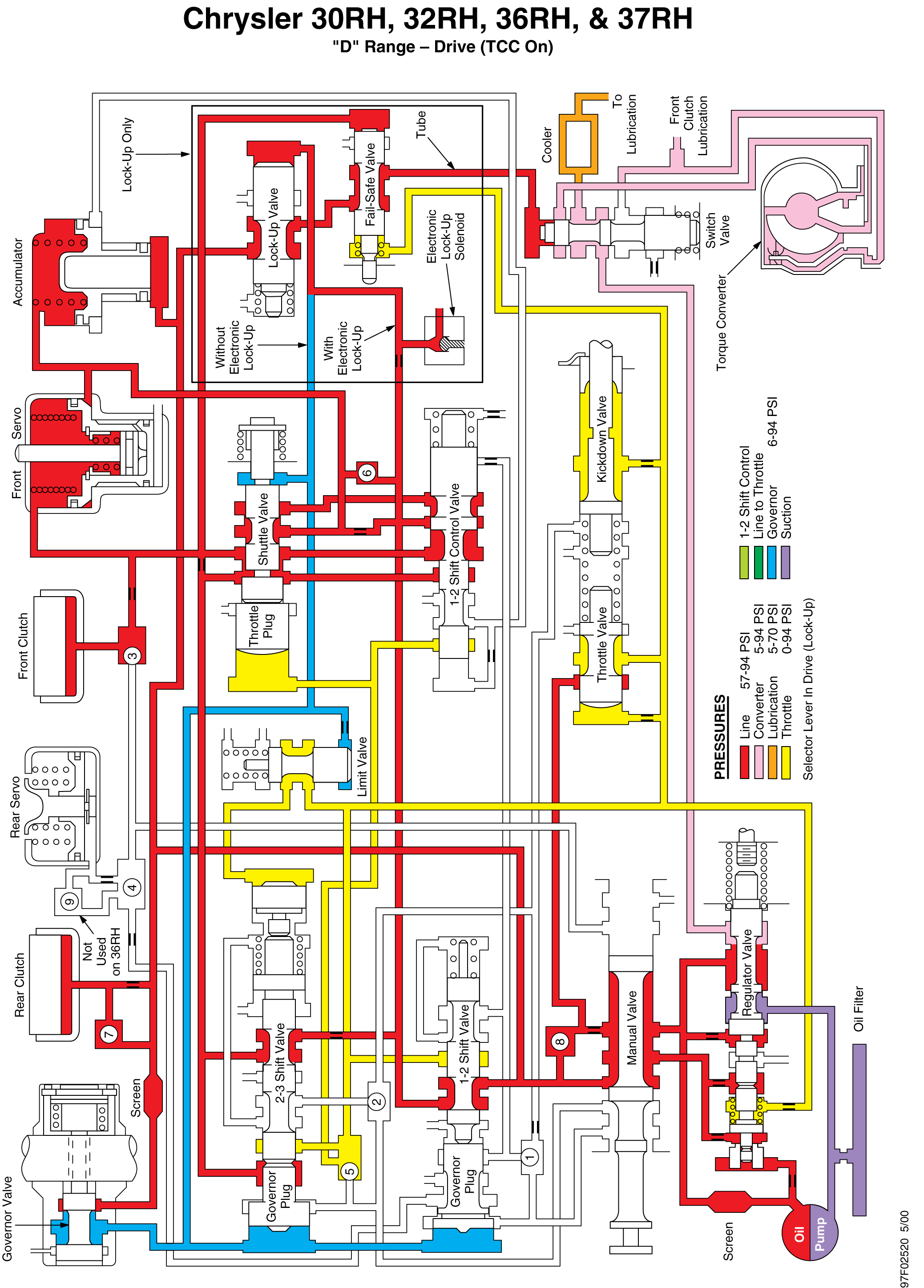

Fig 5: "D" Range - Drive (TCC ON)

Courtesy of DAIMLERCHRYSLER CORP.

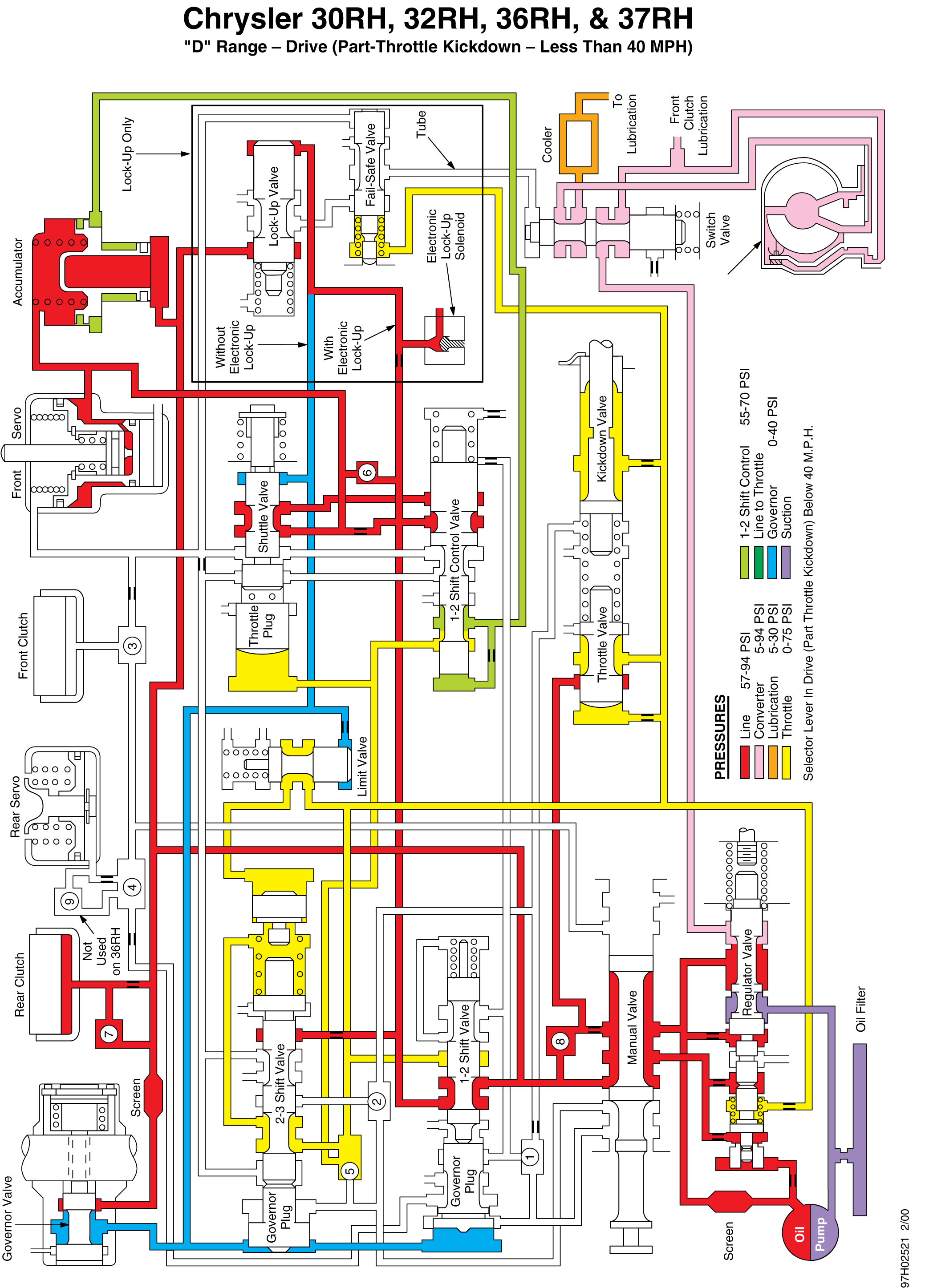

Fig 6: "D" Range - Drive (Part Throttle Kickdown Below 40 MPH)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: "D" Range - Drive (Full Throttle Kickdown)

Courtesy of DAIMLERCHRYSLER CORP.

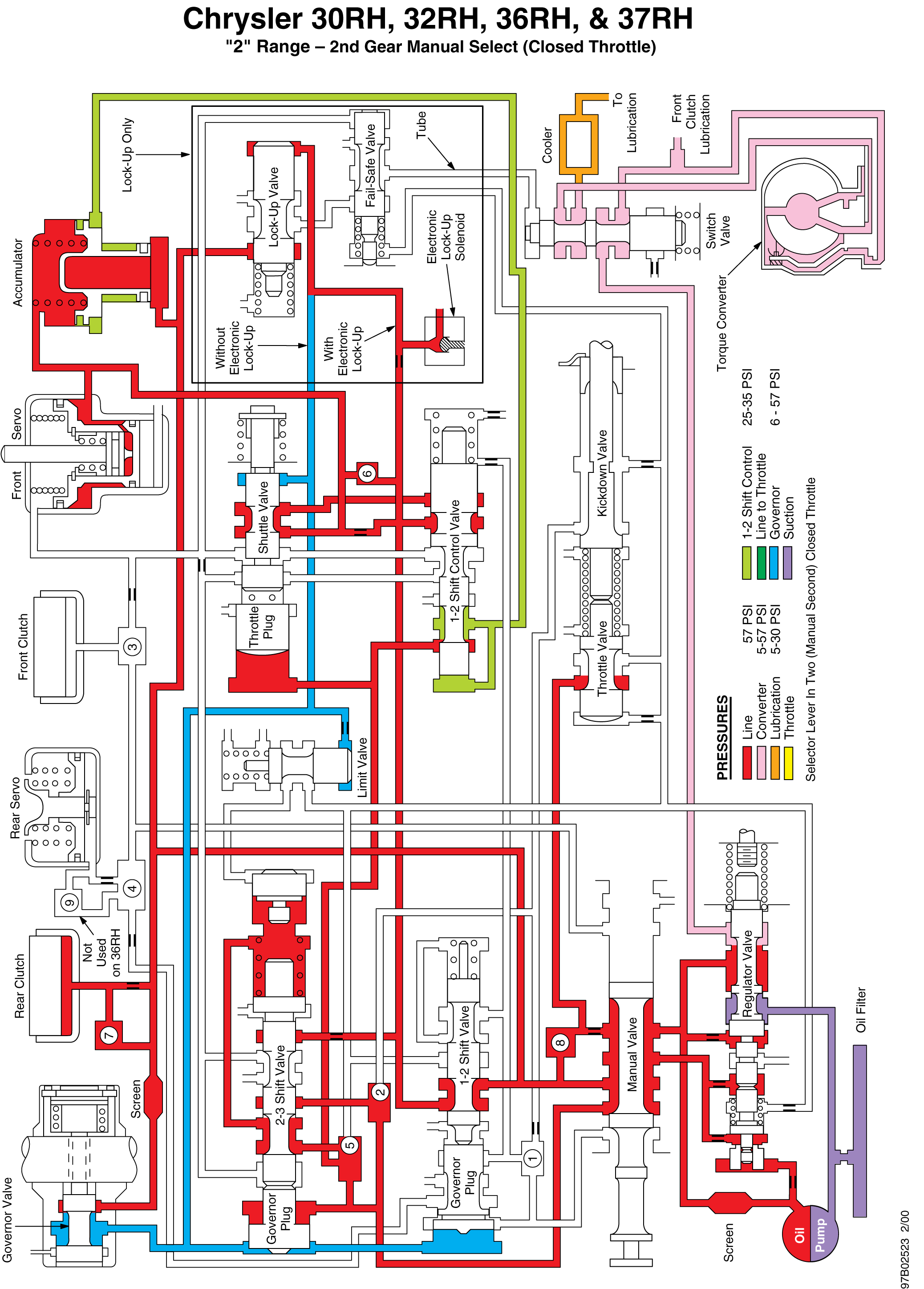

Fig 8: "2" Range - 2nd Gear Manual Select (Closed Throttle)

Courtesy of DAIMLERCHRYSLER CORP.

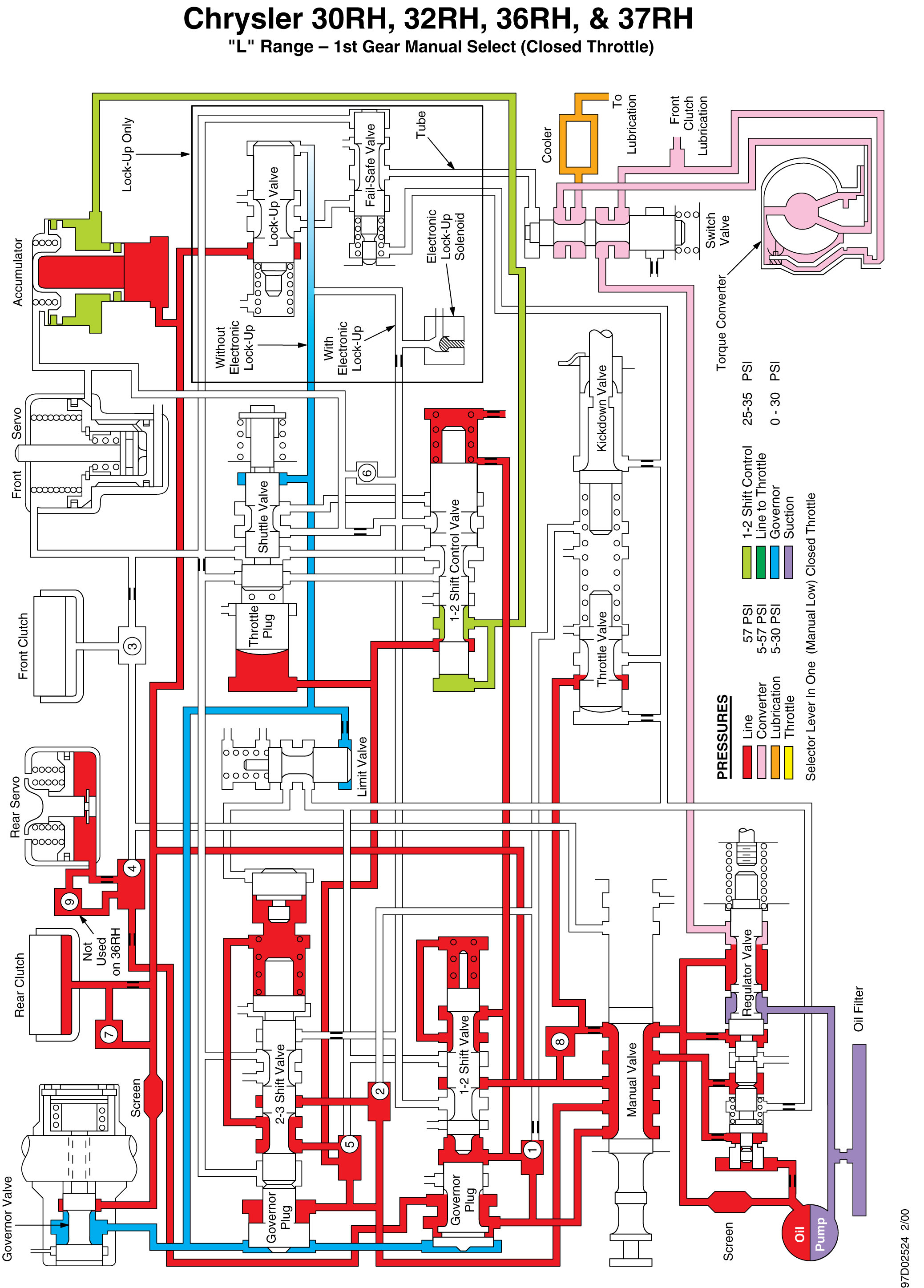

Fig 9: "L" Range - 1st Gear Manual Select (Closed Throttle)

Courtesy of DAIMLERCHRYSLER CORP.

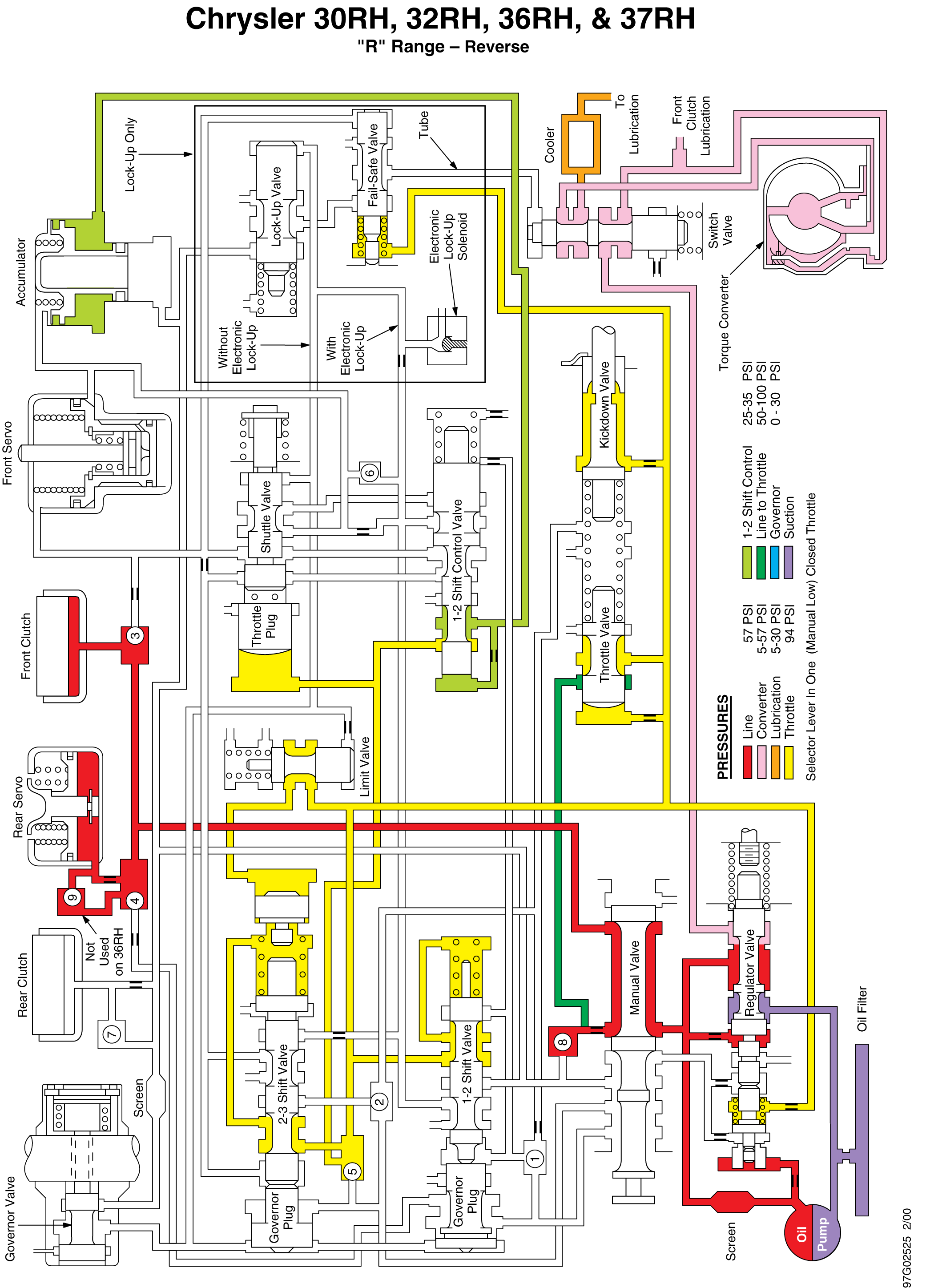

Fig 10: "R" Range - Reverse

Courtesy of DAIMLERCHRYSLER CORP.
