DRB Scan Tool

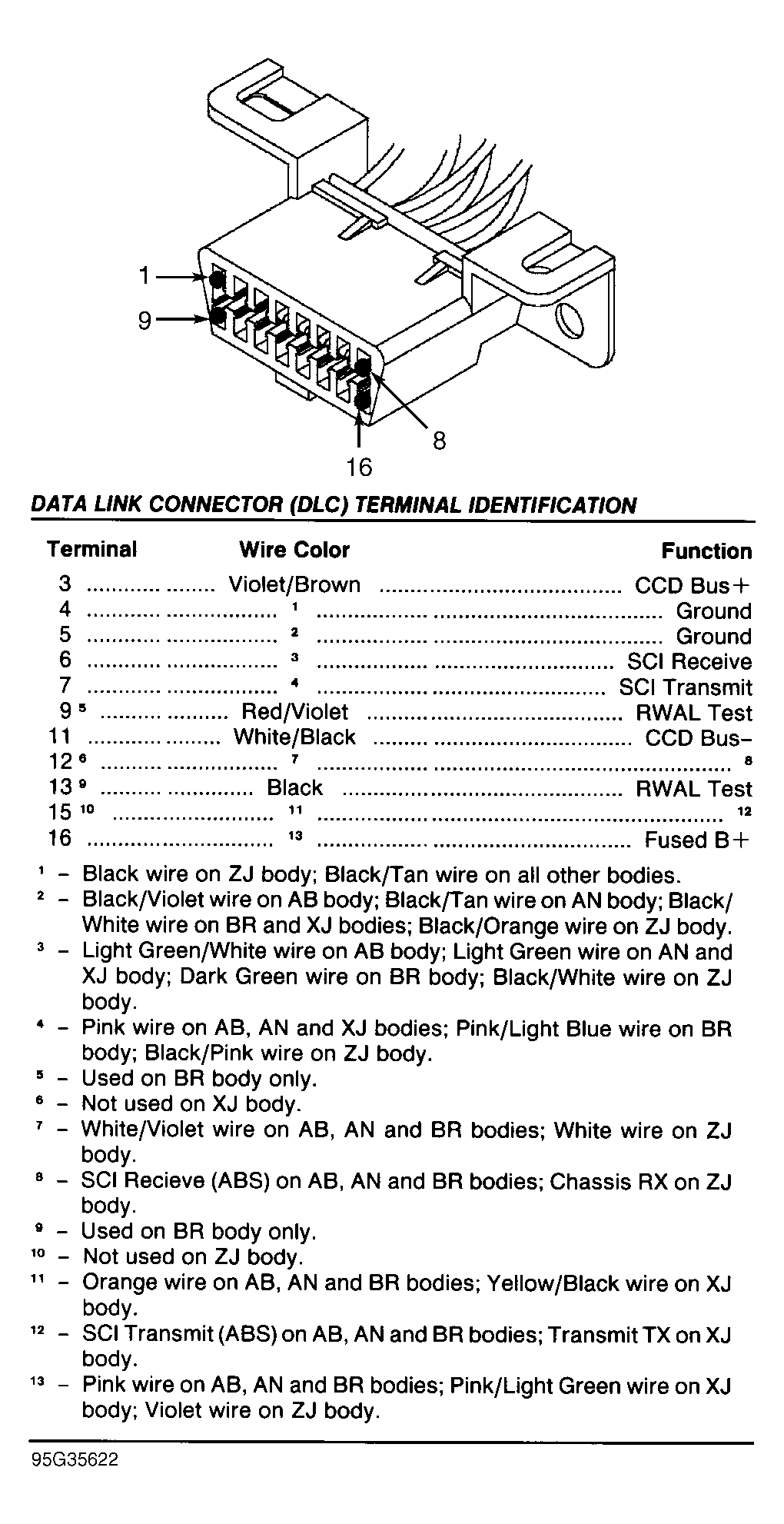

Refer to DRB scan tool instructions to read and clear DTCs, and when performing other scan tool functions. DRB scan tool is grounded through DLC connector terminal No. 4. Only one volt/ohmmeter test lead is required to measure voltage or resistance. DRB scan tool volt/ohmmeter mode should only be used when specified by test procedure. See Figure.
