Governor Pressure Sensor

NOTE: Governor pressure sensor may be referred to as governor pressure transducer.

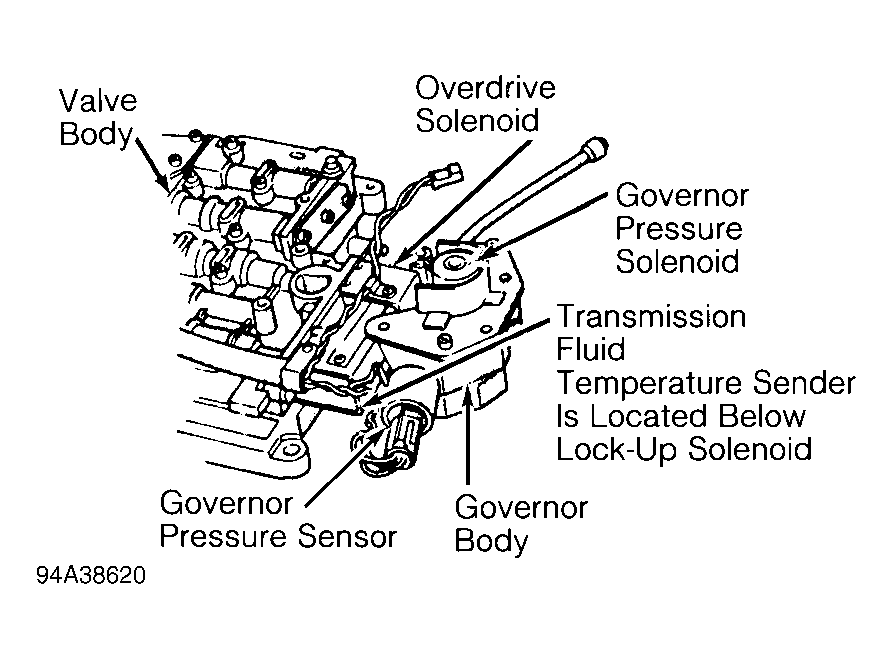

Governor pressure sensor delivers an output signal to the PCM indicating the output pressure of the governor pressure solenoid. The PCM uses this signal to control the governor pressure. Governor pressure solenoid is located on the valve body. See Figure.
