Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector		Illustration
Data Link Connector (DLC)		See Fig 1.
Overdrive (O/D) Off Switch
ZJ Body		See Fig 2.
Except ZJ Body		See Fig 3.
Park/Neutral (P/N) Switch		See Fig 4.
Powertrain Control Module (PCM)		See Fig 5.
Torque Converter Clutch (TCC) Solenoid		See Fig 6.
Transmission Control Relay
AB Body		See Fig 7.
AN Body		See Fig 8.
BR Body		See Fig 9.
ZJ Body		See Fig 10.
Transmission Governor Pressure Sensor		See Fig 11.
Transmission Output Speed Sensor		See Fig 12.
Transmission Solenoid		See Fig 13.

Fig 1: Data Link Connector (DLC) Terminals Courtesy of Chrysler Corp.

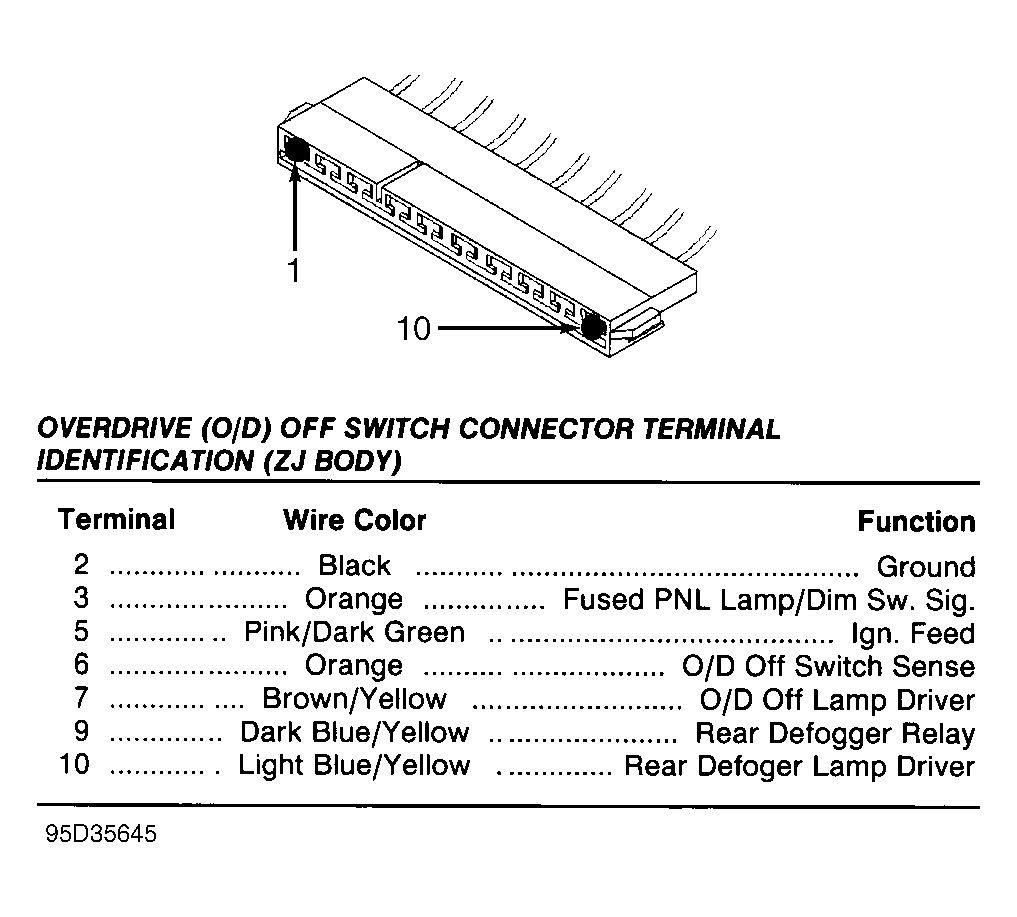

Fig 2: Overdrive (O/D) Off Switch Connector Terminals (ZJ Body) Courtesy of Chrysler Corp.

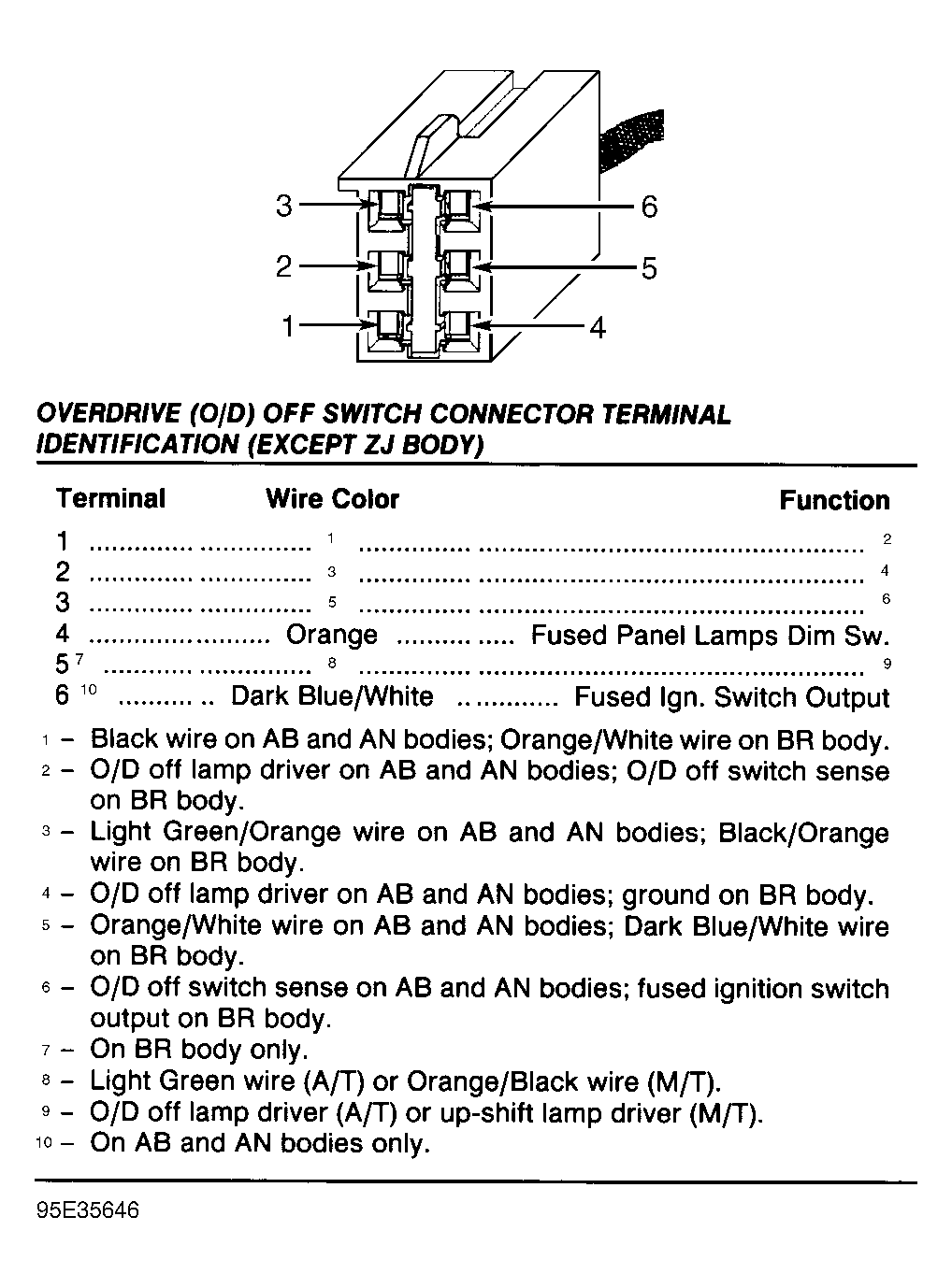

Fig 3: Overdrive (O/D) Off Switch Connector Terminals (Exc. ZJ Body) Courtesy of Chrysler Corp.

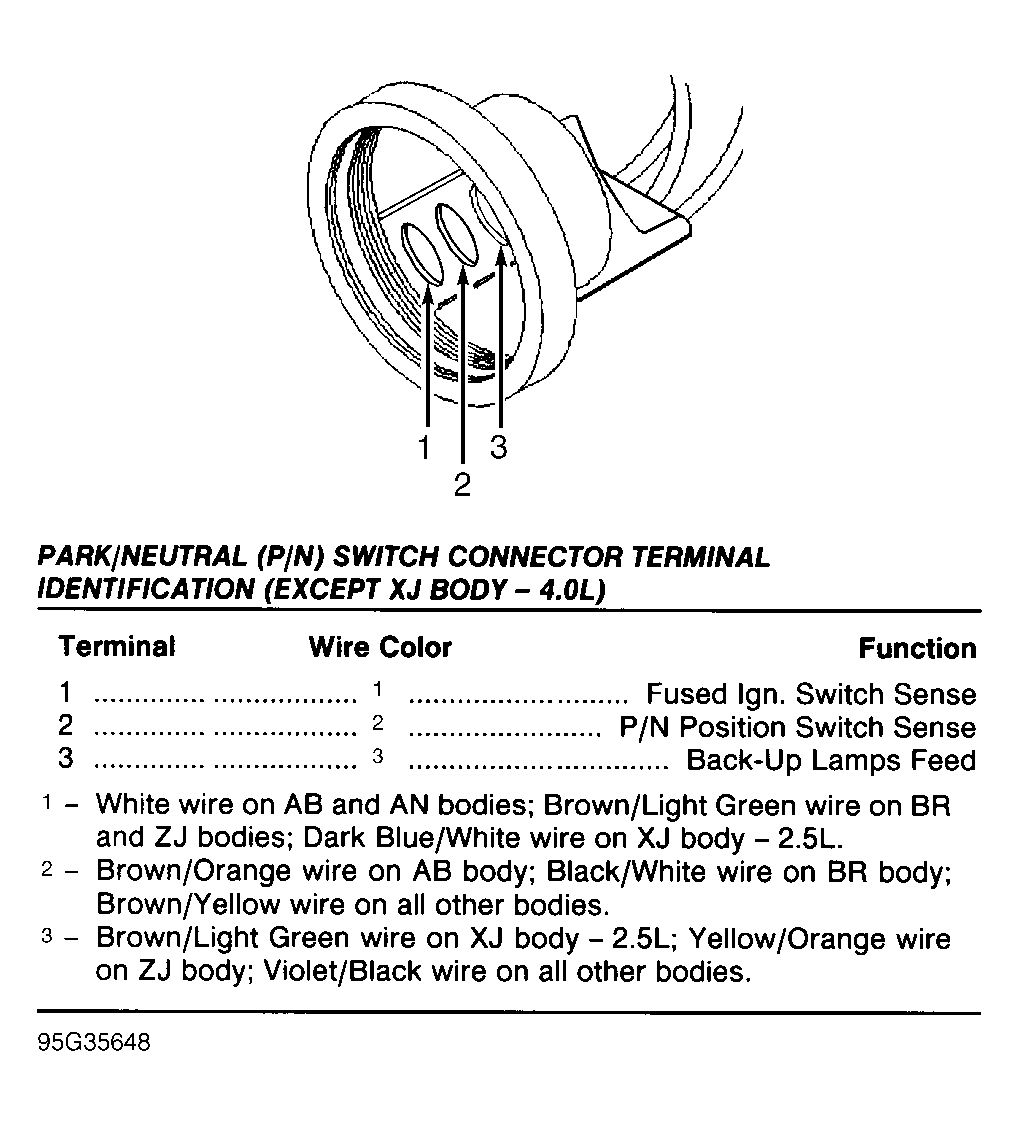

Fig 4: Park/Neutral (P/N) Switch Connector Terminals Courtesy of Chrysler Corp.

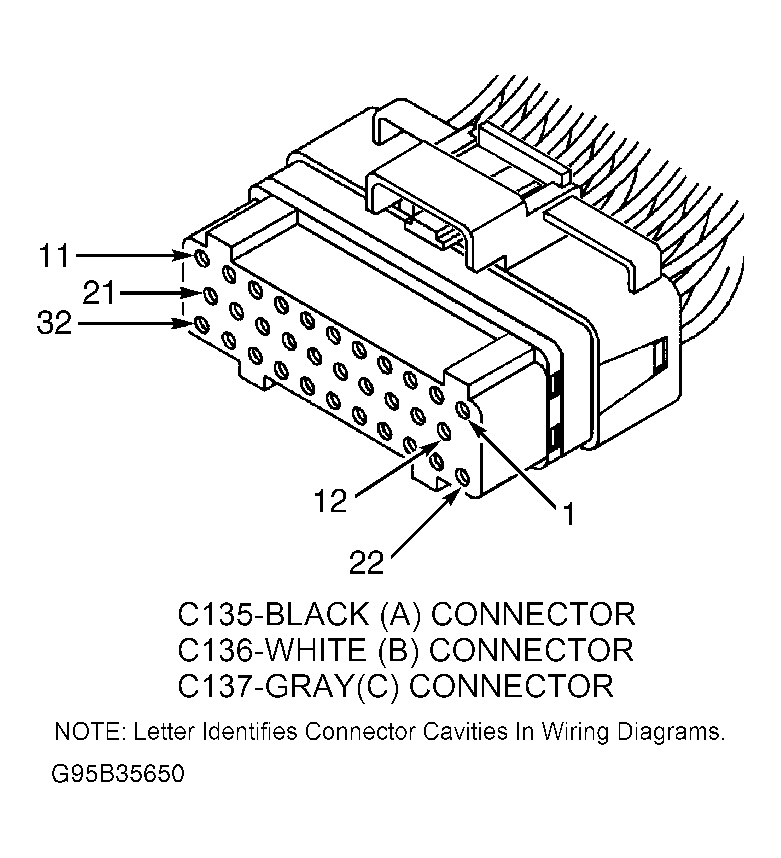

Fig 5: Powertrain Control Module (PCM) Connector Terminals Courtesy of Chrysler Corp.

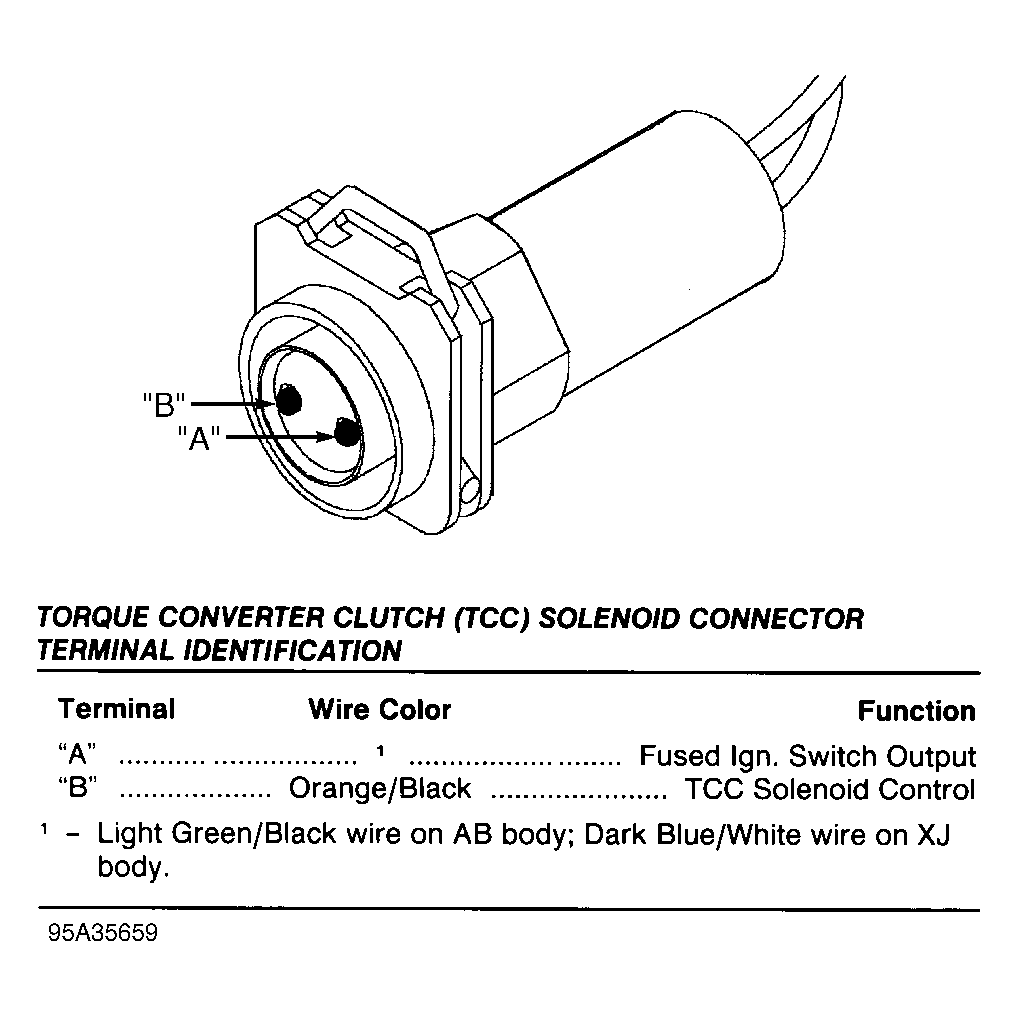

Fig 6: TCC Solenoid Connector Terminals Courtesy of Chrysler Corp.

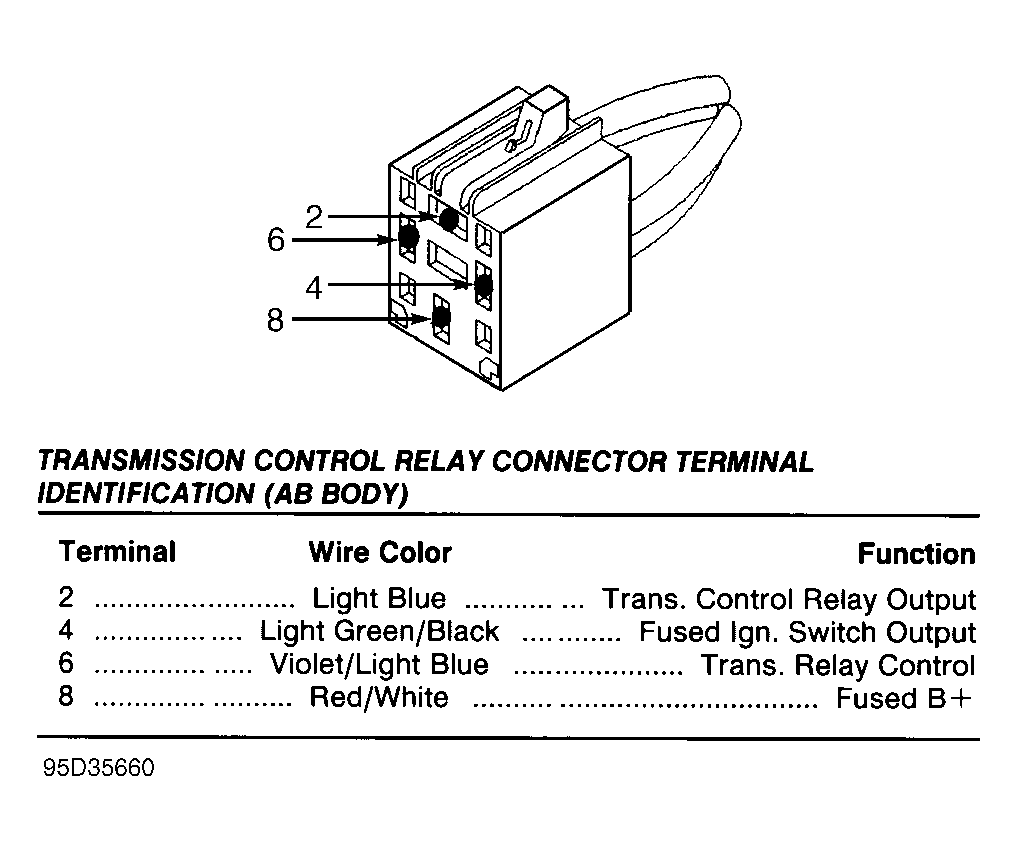

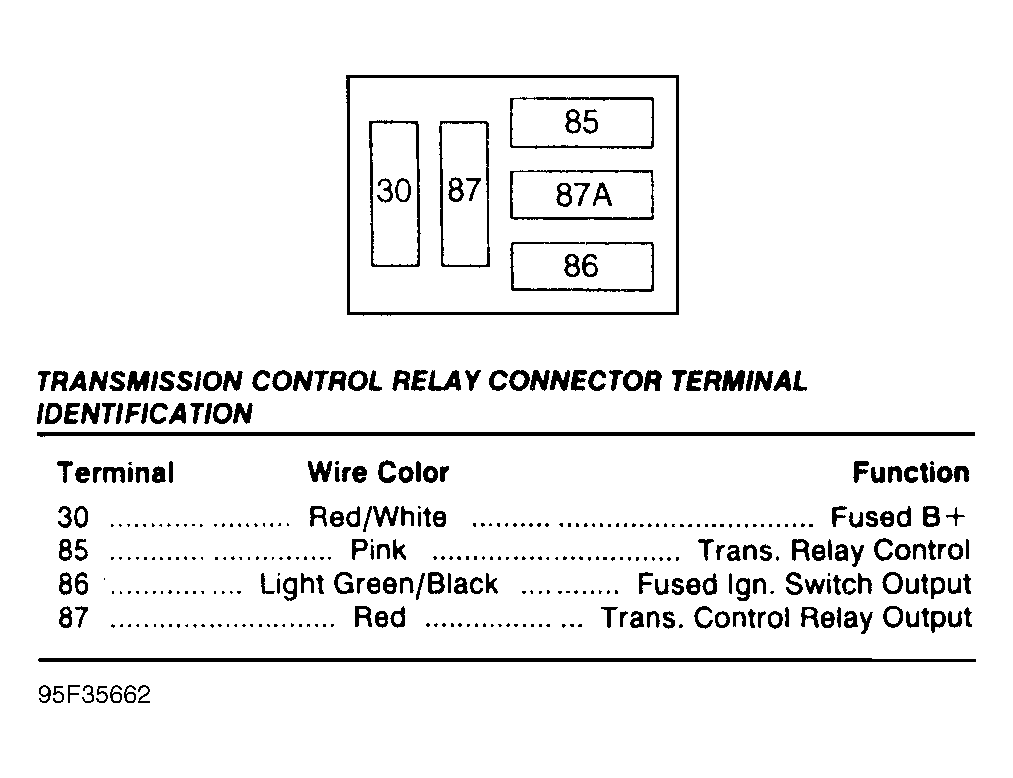

Fig 7: Trans. Control Relay Connector Terminals (AB Body) Courtesy of Chrysler Corp.

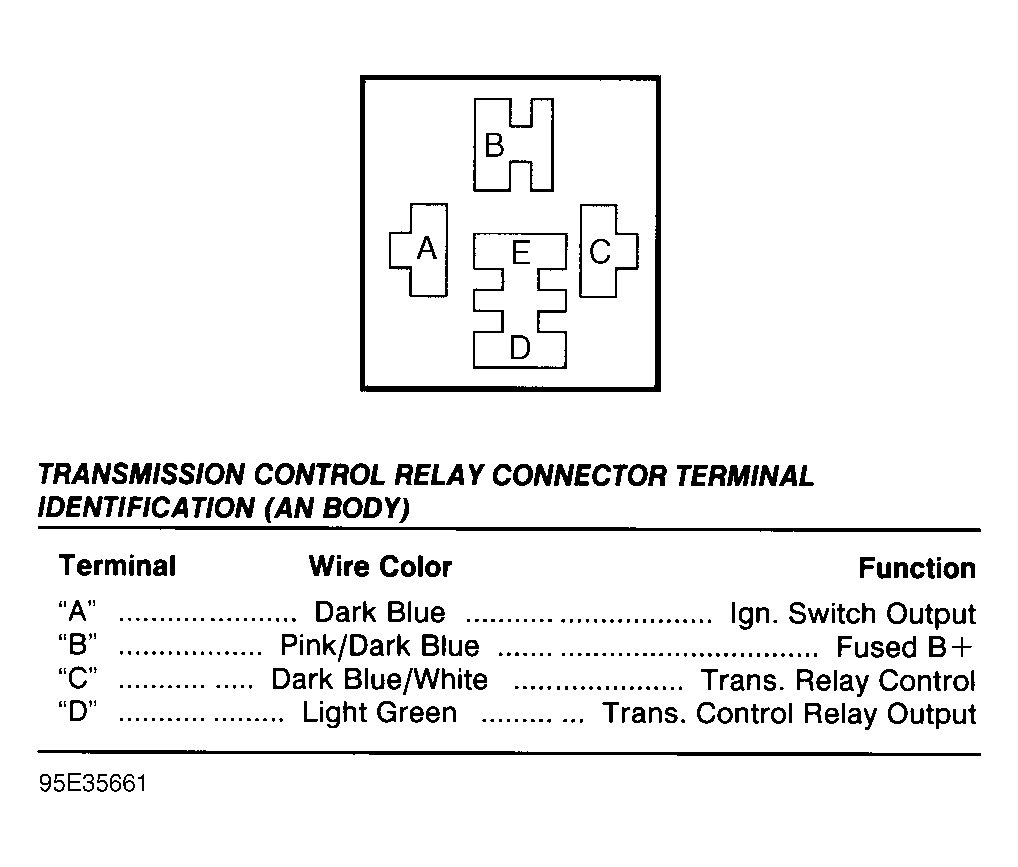

Fig 8: Trans. Control Relay Connector Terminals (AN Body) Courtesy of Chrysler Corp.

Fig 9: Trans. Control Relay Connector Terminals (BR Body) Courtesy of Chrysler Corp.

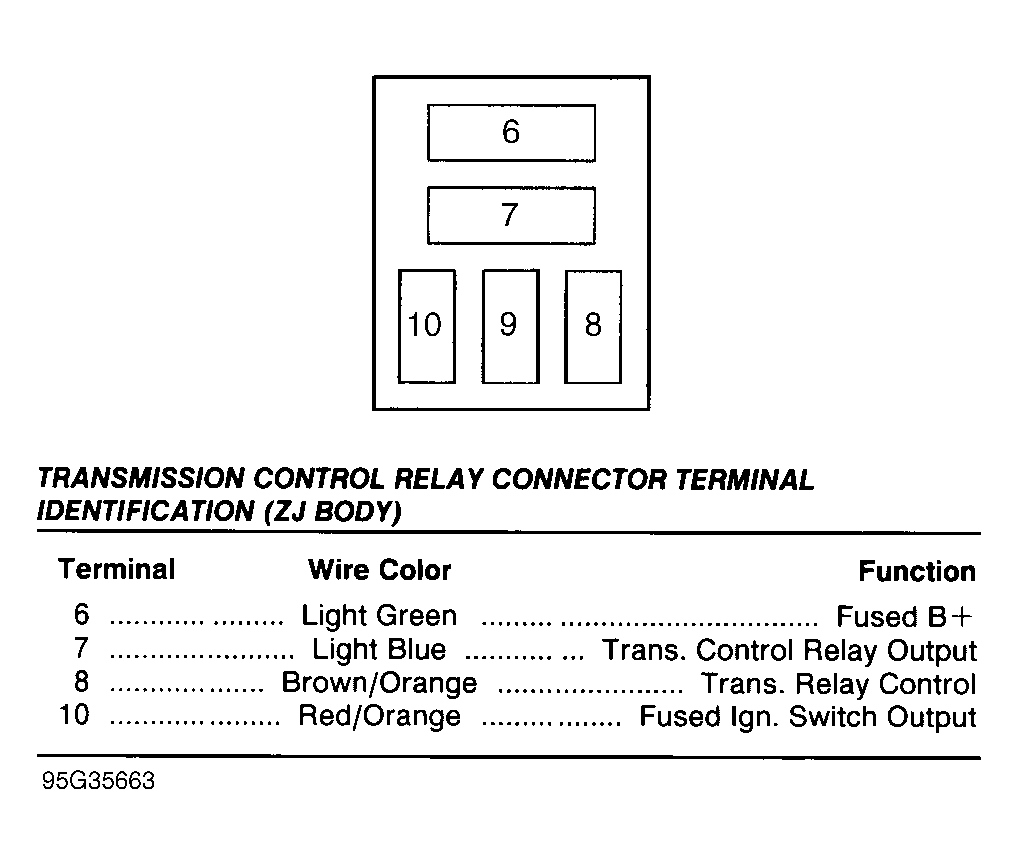

Fig 10: Trans. Control Relay Connector Terminals (ZJ Body) Courtesy of Chrysler Corp.

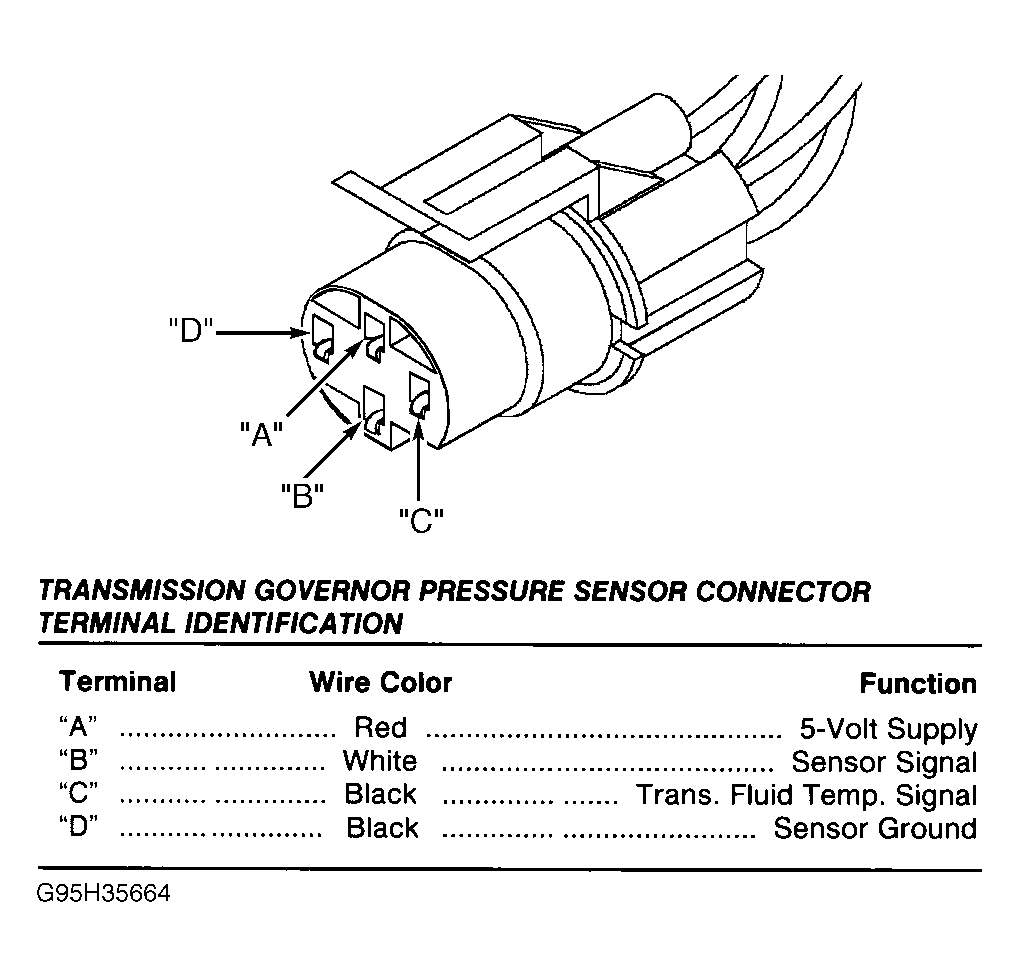

Fig 11: Trans. Governor Pressure Sensor Connector Terminals Courtesy of Chrysler Corp.

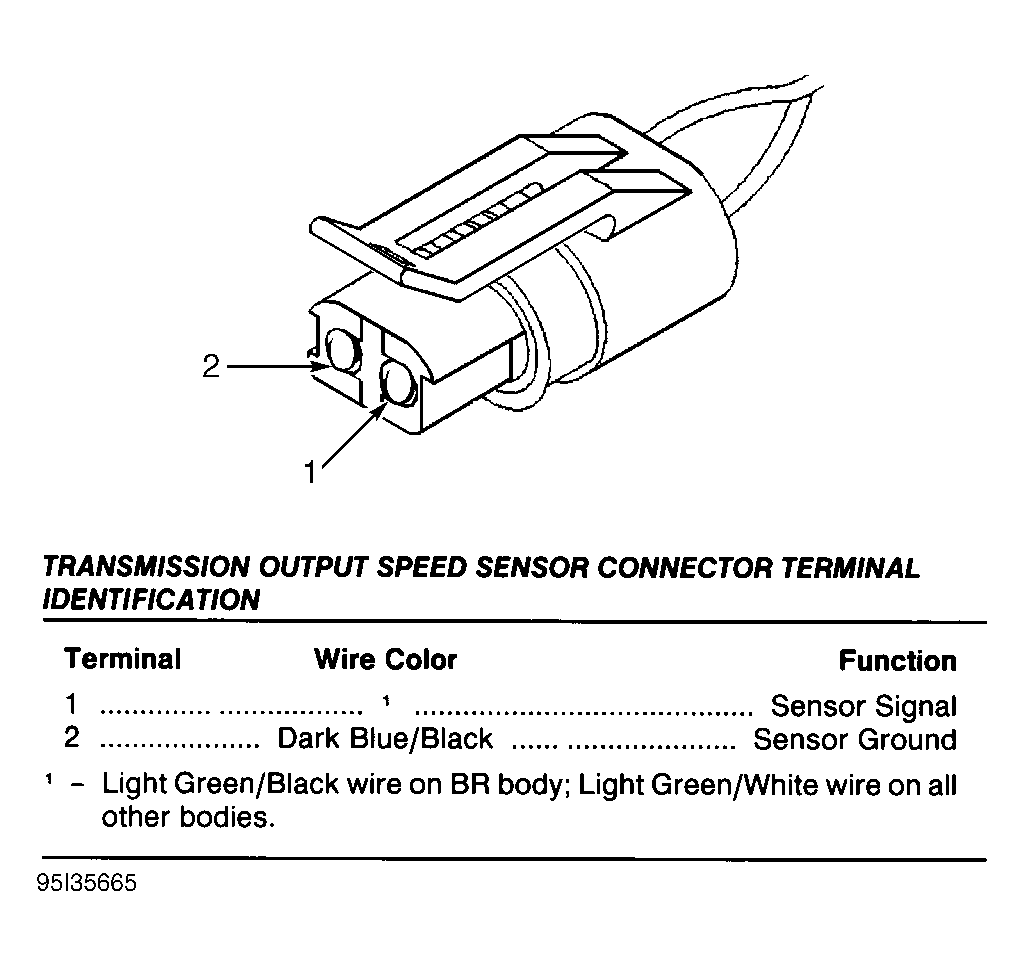

Fig 12: Trans. Output Speed Sensor Connector Terminals Courtesy of Chrysler Corp.

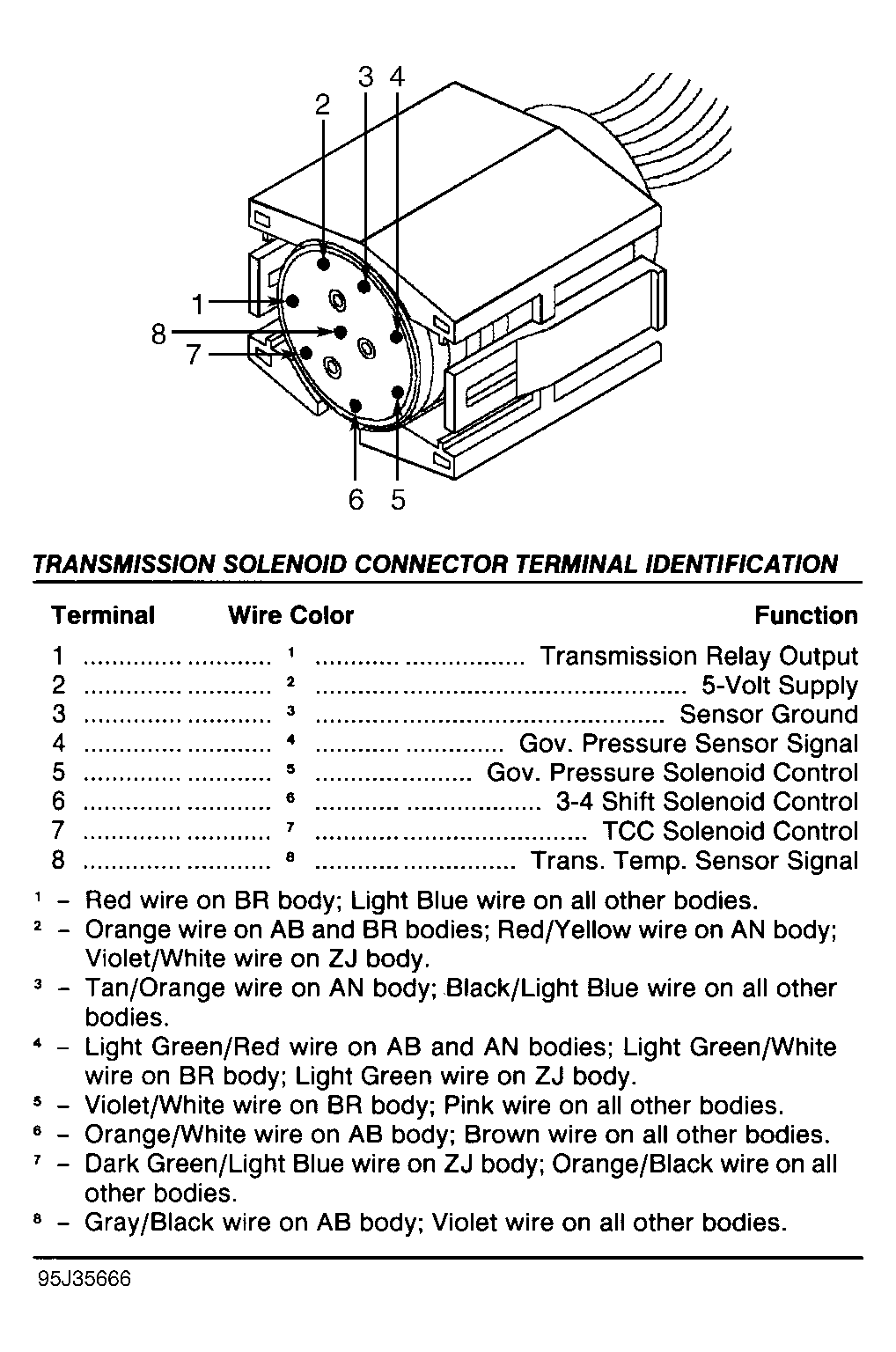

Fig 13: Trans. Solenoid Connector Terminals Courtesy of Chrysler Corp.
