Test TC-45A - A/C Clutch Relay Circuit (DTC 33)

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

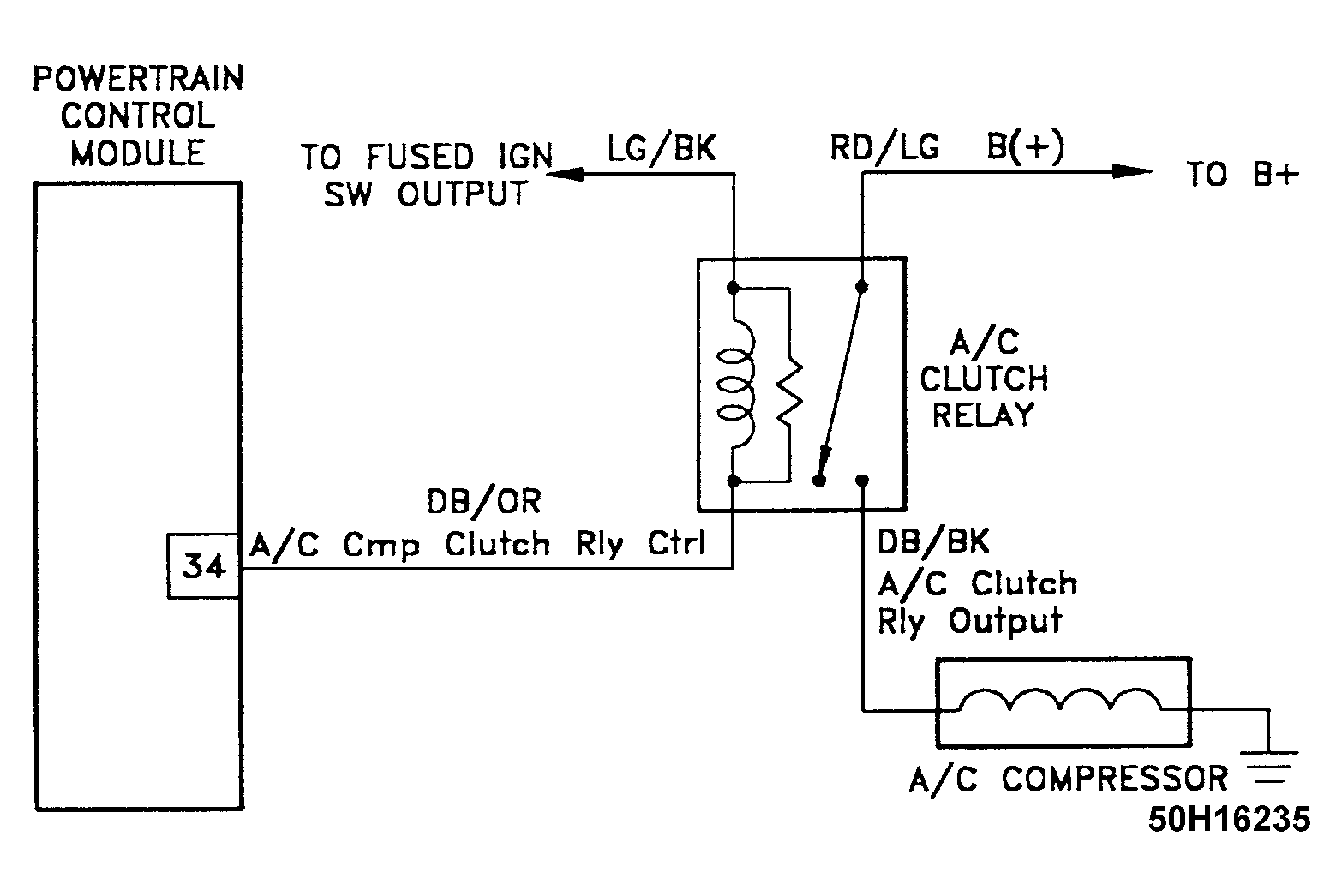

Fig 1: Test TC-45A - A/C Clutch Relay Circuit Schematic

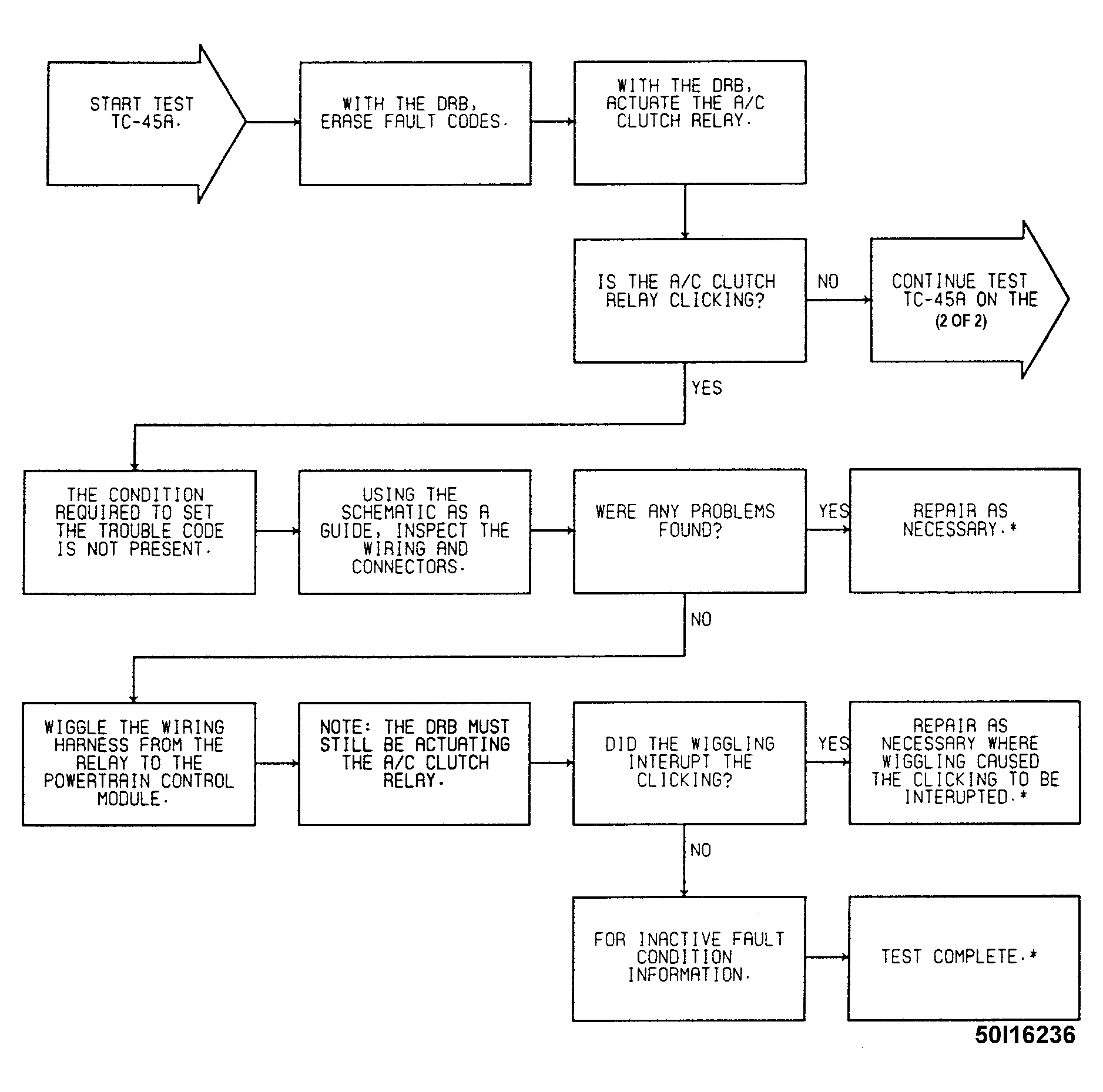

Fig 2: Test TC-45A - A/C Clutch Relay Circuit (1 of 2)

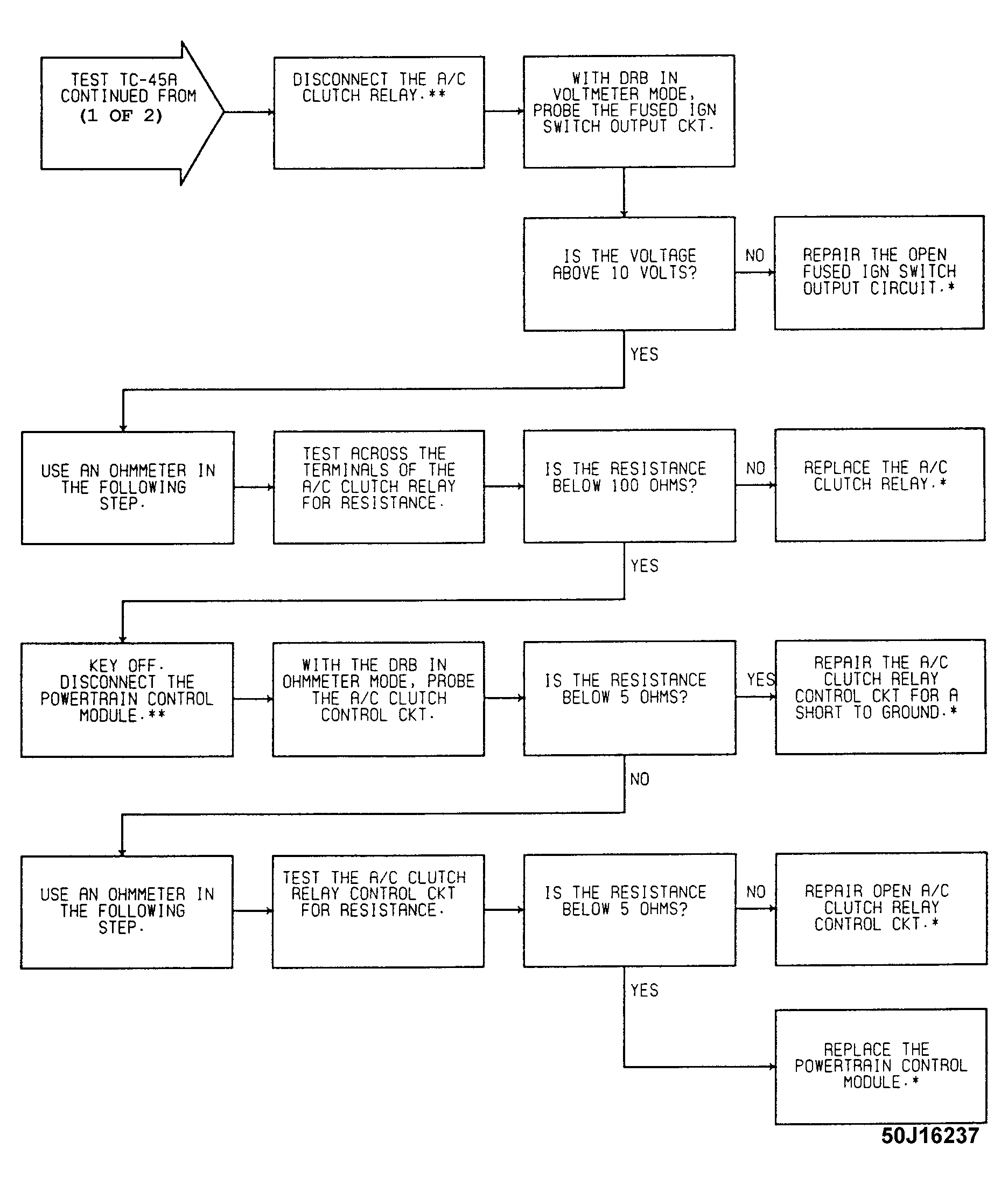

Fig 3: Test TC-45A - A/C Clutch Relay Circuit (2 of 2)
