Connector Identification

WARNING: This page is about a different car, the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Dodge Spirit, 1994 Dodge Shadow, and 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR IDENTIFICATION DIRECTORY

Connector See
A/C Clutch Relay Fig 1 & Fig 2
Auto Shutdown (ASD) Relay Fig 3 & Fig 4
Camshaft Position Sensor Fig 5
Crankshaft Position Sensor Fig 6
Distributor Connector (Harness Side) Fig 7
Engine Coolant Temperature (ECT) Sensor Fig 8
Evaporative Purge Solenoid Fig 9
Flexible Fuel Sensor Fig 10
Fuel Pump Fig 11
Fuel Pump Relay Fig 12 & Fig 13
Idle Air Control (IAC) Motor Fig 14
Intake Air Temperature (IAT) Sensor Fig 15
Injector Connector Fig 16 & Fig 17
Manifold Absolute Pressure (MAP) Sensor Fig 18
Oxygen Sensor Fig 19
Powertrain Control Module (PCM) Fig 20
Radiator Fan Relay Fig 21 & Fig 22
Torque Converter Clutch Solenoid Fig 23
Throttle Position Sensor (TPS) Fig 24
Vehicle Speed Sensor (VSS) Fig 25
A/C CLUTCH RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Light Green Radiator Fan Relay Output
B Red Fused Battery Voltage
C Dark Blue/Orange Control
D Dark Blue/Black Output
Fig 1: A/C Clutch Relay Connector Terminal ID (LeBaron Sedan)
G94A32557Courtesy of CHRYSLER CORP.
A/C CLUTCH RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Light Green Radiator Fan Relay Output
B Red Fused Battery Voltage
C Dark Blue/Orange Control
D Dark Blue/Black Output
Fig 2: A/C Clutch Relay Connector Terminal ID (AJ Body)
G94B32558Courtesy of CHRYSLER CORP.
ASD RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Dark Blue Fused Ignition Switch Output
B Red/White Fused Battery Voltage
C Dark Blue/Yellow Control
D Dark Green/Orange Output
Fig 3: Auto Shutdown (ASD) Relay Connector Term. ID (AA Body)
G94F32560Courtesy of CHRYSLER CORP.
ASD RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Dark Blue Fused Ignition Switch Output
B Red/White Fused Battery Voltage
C Dark Blue/Yellow Control
D Dark Green/Orange Output
Fig 4: Auto Shutdown (ASD) Relay Connector Term. ID (AJ Body)
G94G32561Courtesy of CHRYSLER CORP.
CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Orange 8-Volt Supply
2 Black/Light Blue Ground
3 Tan/Yellow Signal
Fig 5: Camshaft Position Sensor Connector Terminal ID
G93D41064Courtesy of CHRYSLER CORP.
CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Orange 8-Volt Supply
2 Black/Light Blue Ground
3 Gray/Black Signal
Fig 6: Crankshaft Position Sensor Connector Terminal ID
G93E41065Courtesy of CHRYSLER CORP.
DISTRIBUTOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Gray/Black Crankshaft Signal
2 Tan/Yellow Camshaft Signal
3 Orange 8-Volt Supply
4 Black/Light Blue Ground
Fig 7: Distributor Connector Terminal ID
G94I32563Courtesy of CHRYSLER CORP.
ENGINE TEMP COOLANT (ECT) SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Tan/Black Signal
2 Black/Light Blue Ground
Fig 8: Engine Coolant Temperature (ECT) Sensor Connector Term. ID
G93G41067Courtesy of CHRYSLER CORP.
EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 (1) Dark Blue Ignition 12-Volt Feed
2 Pink/Black Control
(1) Dark Blue/White on AA and AJ bodies with 3.0L.
Fig 9: Evaporative Purge Solenoid Connector Terminal ID
G94J32564Courtesy of CHRYSLER CORP.
FLEXIBLE FUEL SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Red Signal
2 Black/Light Blue Ground
3 Orange 8-Volt Supply
Fig 10: Flexible Fuel Sensor Connector Terminal ID
G94A32565Courtesy of CHRYSLER CORP.
FUEL PUMP CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Dark Green/Black Fuel Pump Relay Output
2 Black Ground
Fig 11: Fuel Pump Connector Terminal ID (AA, AJ & AP Bodies)
G93H41076Courtesy of CHRYSLER CORP.
FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Dark Blue Ignition 12-Volt Feed
B Red/White Fused Battery Voltage
C Dark Blue/Yellow ASD Relay Control
D Dark Green/Black Fuel Pump Relay Output
Fig 12: Fuel Pump Relay Connector Terminal ID (AA & AP Bodies)
G94C32567Courtesy of CHRYSLER CORP.
FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Dark Blue Ignition 12-Volt Feed
B Red/White Fused Battery Voltage
C Dark Blue/Yellow ASD Relay Control
D Dark Green/Black Fuel Pump Relay Output
Fig 13: Fuel Pump Relay Connector Terminal ID (AJ Body)
G93G41109Courtesy of CHRYSLER CORP.
IDLE AIR CONTROL (IAC) MOTOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Gray/Red IAC Driver No. 3
2 Yellow/Black IAC Driver No. 2
3 Brown/White IAC Driver No. 1
4 Violet/Black IAC Driver No. 4
Fig 14: Idle Air Control (IAC) Motor Connector Terminal ID
G94B32574Courtesy of CHRYSLER CORP.
INTAKE AIR TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Red Signal
2 Black/Light Blue Ground
Fig 15: Intake Air Temperature (IAT) Sensor Connector Terminal ID
G93G41133Courtesy of CHRYSLER CORP.
INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal Wire Color Function
1 White/Dark Blue Injector Driver No. 1
2 Brown Injector Driver No. 2
3 Yellow/White Injector Driver No. 3
4 Light Blue/Brown Injector Driver No. 4
5 Dark Green/Orange ASD Output
6 ** Not Used
7 Brown/Dark Blue Injector Driver No. 6
8 Gray Injector Driver No. 5

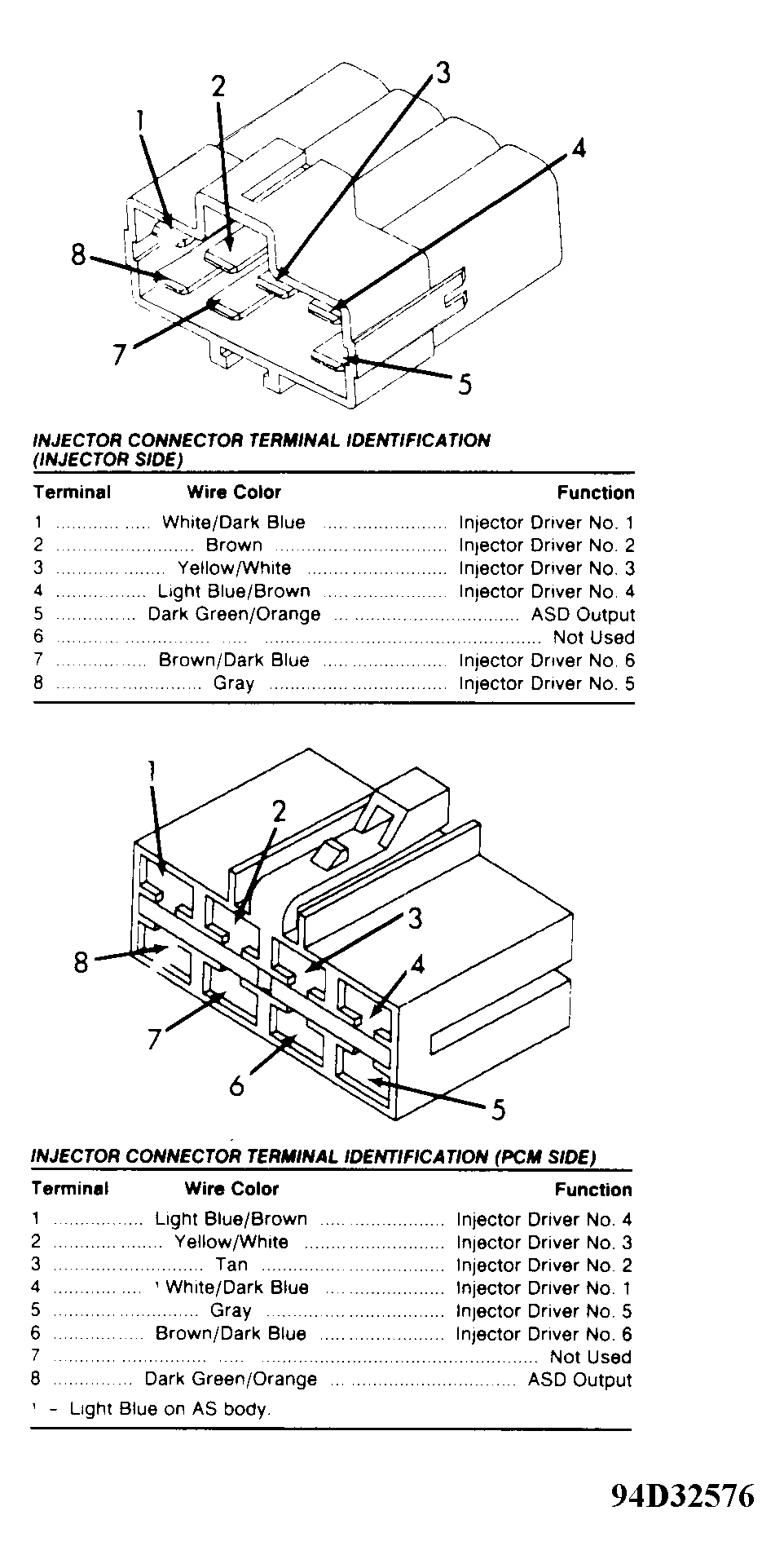

Fig 16: Injector Connector Terminal ID
G94D32576Courtesy of CHRYSLER CORP.
INJECTOR CONNECTOR TERMINAL ID (PCM SIDE)

Terminal Wire Color Function
1 Light Blue/Brown Injector Driver No. 4
2 Yellow/White Injector Driver No. 3
3 Tan Injector Driver No. 2
4 White/Dark Blue Injector Driver No. 1
5 Gray Injector Driver No. 5
6 Brown/Dark Blue Injector Driver No. 6
7 *** Not Used
8 Dark Green/Orange ASD Output
Fig 17: Injector Connector Terminal ID
G94D32576Courtesy of CHRYSLER CORP.
MAP SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Light Blue Ground
2 Dark Green/Red Signal
3 Violet/White 5-Volt Supply
Fig 18: MAP Sensor Connector Terminal ID
G93H41134Courtesy of CHRYSLER CORP.
OXYGEN SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Light Blue Sensor Ground
2 Black/Dark Green Signal
3 Black Heater Ground
4 Dark Green/Black Heater Feed
Fig 19: Oxygen Sensor Connector Terminal ID
G94G32579Courtesy of CHRYSLER CORP.
Fig 20: Powertrain Control Module (PCM) Connector Terminal ID
G92I04785Courtesy of CHRYSLER CORP.
RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Dark Blue Ignition 12-Volt Feed
B Gray Battery Voltage
C Dark Blue/Pink Control
D Light Green Output
Fig 21: Radiator Fan Relay Connector Terminal ID (AA Body)
G94J32580Courtesy of CHRYSLER CORP.
RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal Wire Color Function
A Dark Blue Ignition 12-Volt Feed
B Gray Battery Voltage
C Dark Blue/Pink Control
D Light Green Output
Fig 22: Radiator Fan Relay Connector Terminal ID (AJ Body)
G94B32582Courtesy of CHRYSLER CORP.
TORQUE CONVERTER CLUTCH SOLENOID CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 ** Not Used
2 Dark Blue Ignition 12-Volt Feed
3 (1) Orange/Black Control
(1) Orange/Light Green on AP body.
THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Light Blue Ground
2 Orange/Dark Blue Signal
3 Violet/White 5-Volt Supply
Fig 23: Torque Converter Clutch Solenoid Connector Terminal ID
G94C32583Courtesy of CHRYSLER CORP.
VEHICLE SPEED SENSOR (VSS) CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 White/Orange Signal
2 Black/Light Blue Ground
3 Orange 8-Volt Supply
THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Light Blue Ground
2 Orange/Dark Blue Signal
3 Violet/White 5-Volt Supply
Fig 24: Throttle Position Sensor (TPS) Connector Terminal ID
G94D32584Courtesy of CHRYSLER CORP.
VEHICLE SPEED SENSOR (VSS) CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 White/Orange Signal
2 Black/Light Blue Ground
3 Orange 8-Volt Supply

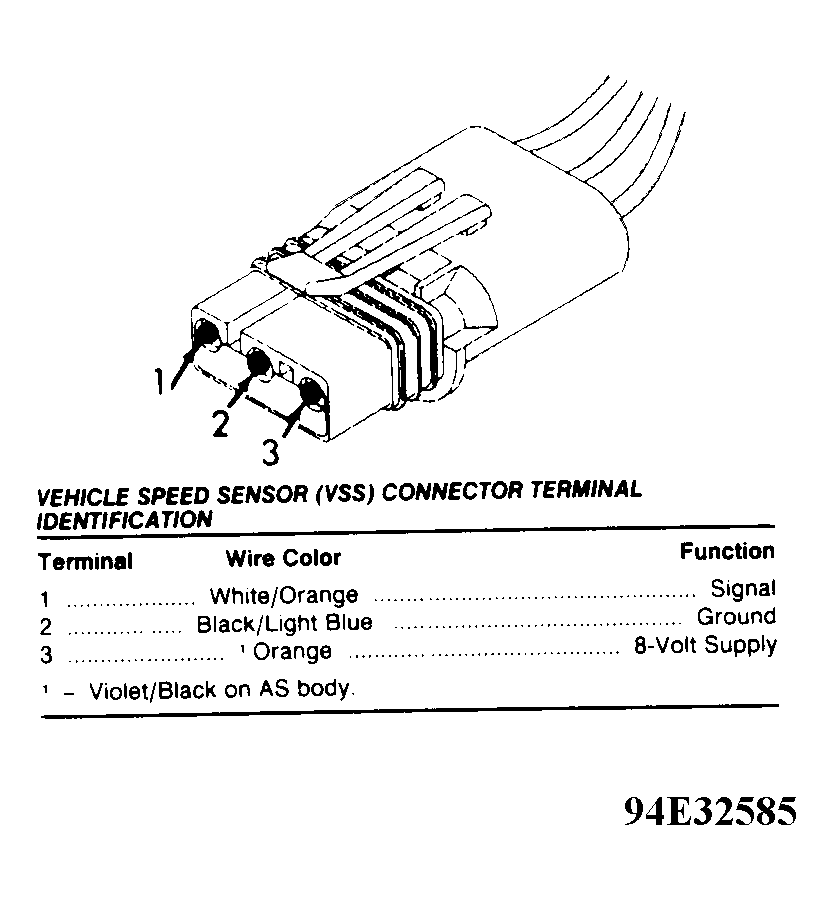

Fig 25: Vehicle Speed Sensor (VSS) Connector Terminal ID
G94E32585Courtesy of CHRYSLER CORP.
CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.
