Pedal Travel Sensor: Installation
WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

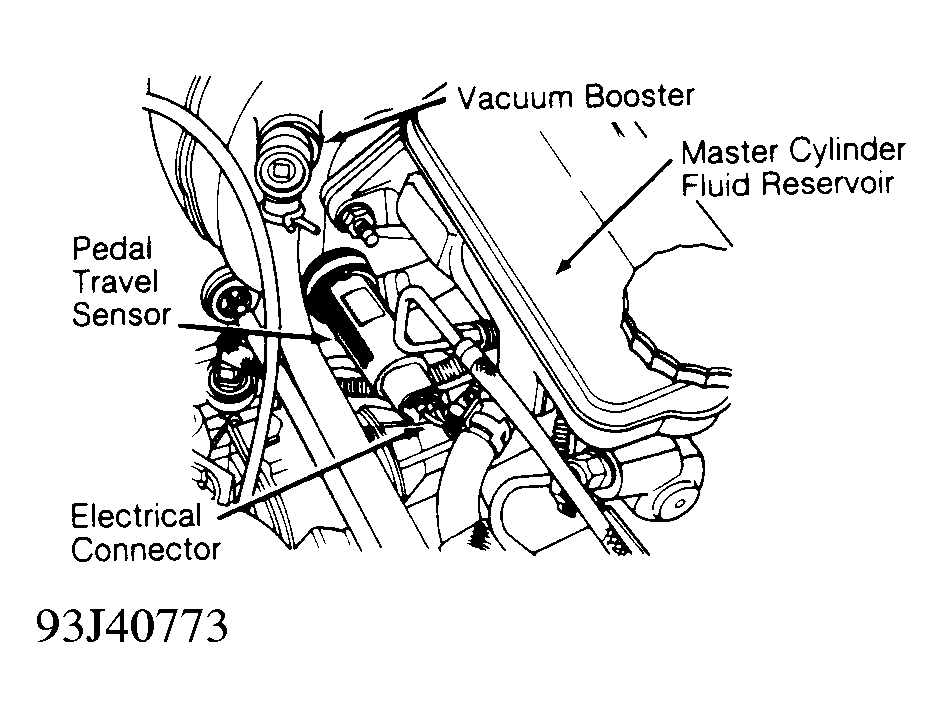

Install PTS snap ring on booster bushing. Lightly lubricate "O" ring with clean brake fluid. Install "O" ring in bushing groove. Lightly lubricate PTS with clean brake fluid. Install PTS until it locks in bushing. Reconnect connector. Road test vehicle to ensure proper operation of PTS and booster.
